Home >> Pontiac >> 2007 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - HVAC System - Automatic >> Too Hot in Vehicle

Too Hot in Vehicle



Too Hot in Vehicle

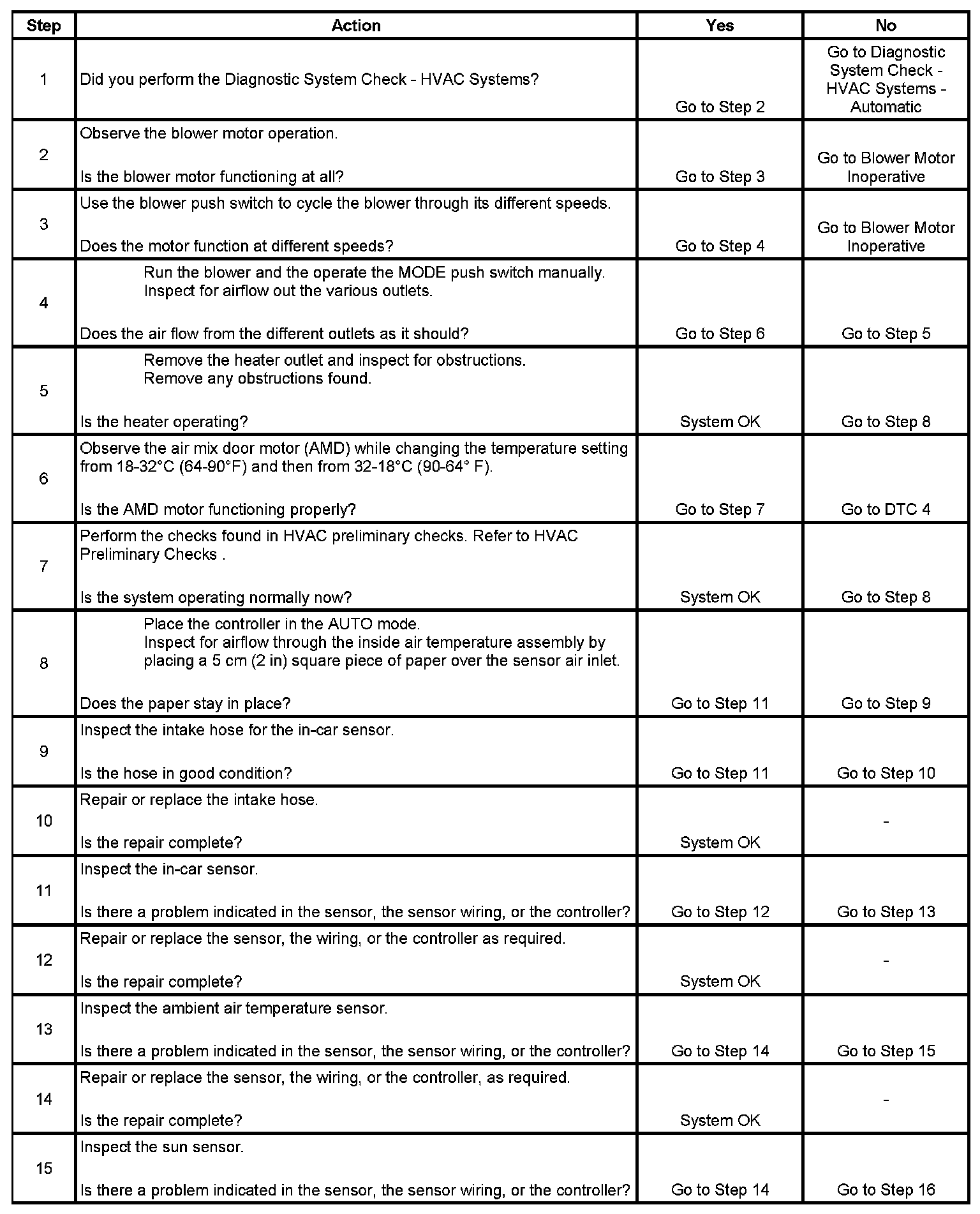

Step 1 - Step 15:

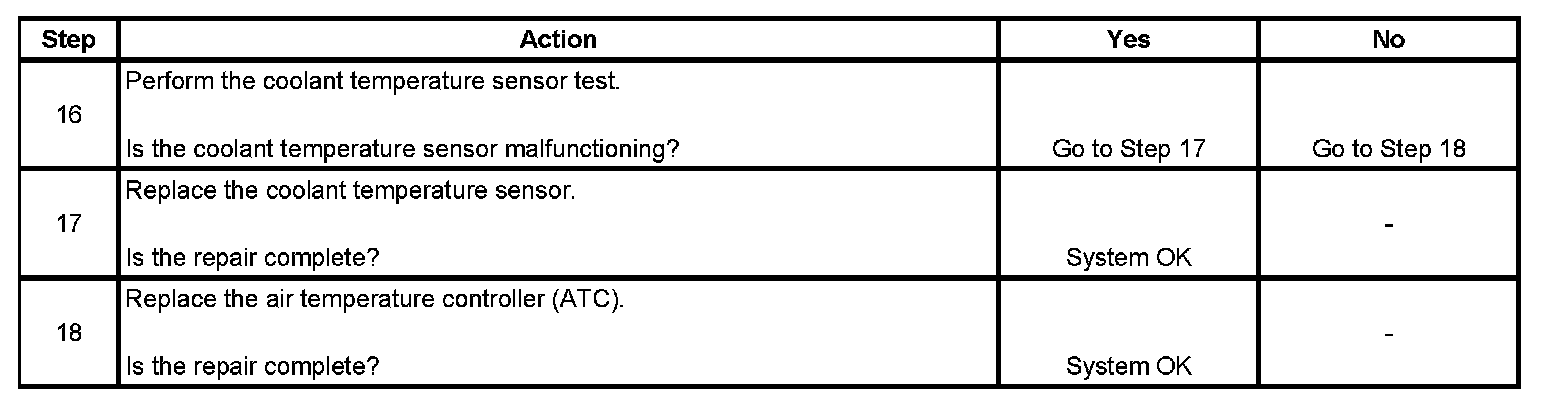

Step 16 - Step 18:
