Bearing and Race Installation and Direction



Disassembled Views

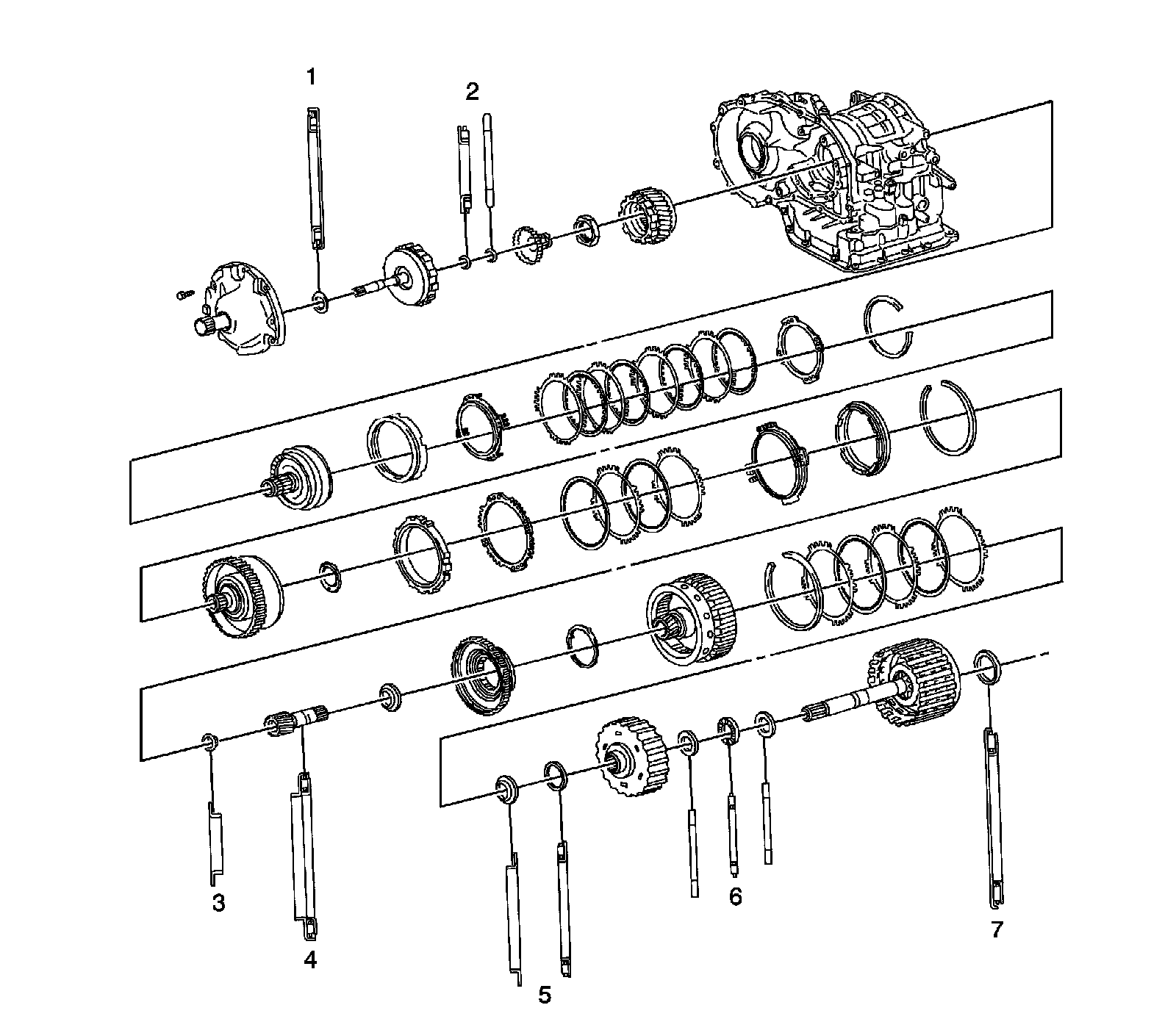

Bearing and Race Installation and Direction:

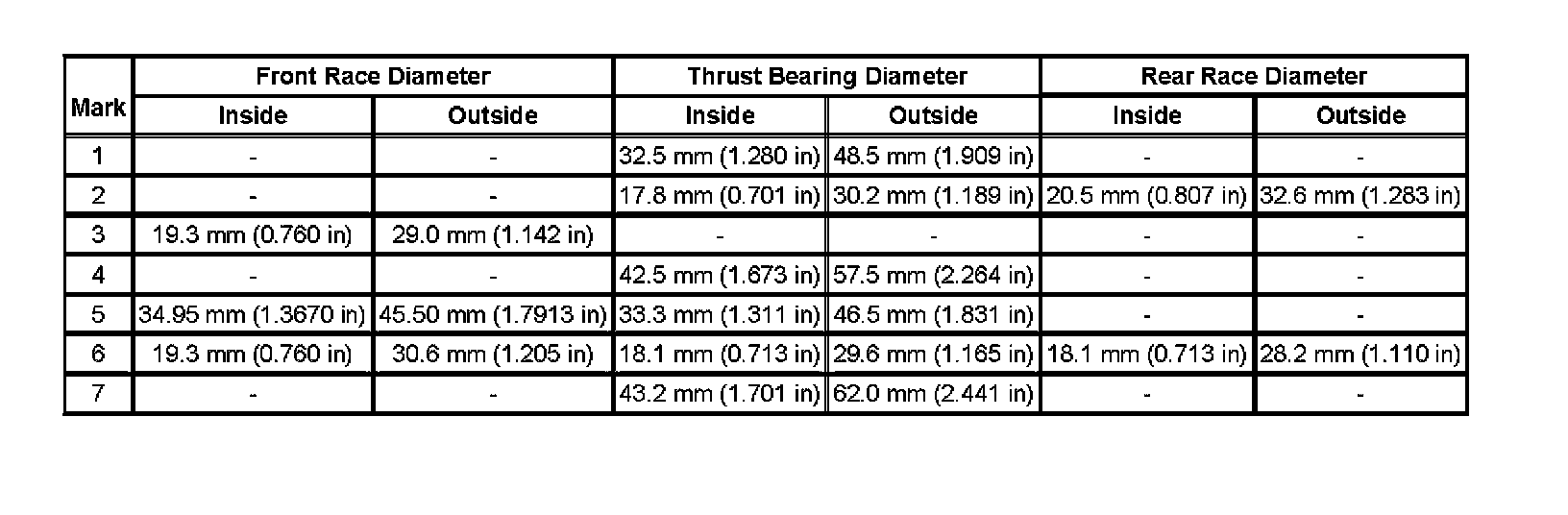

Bearing and Race Installation and Direction:
