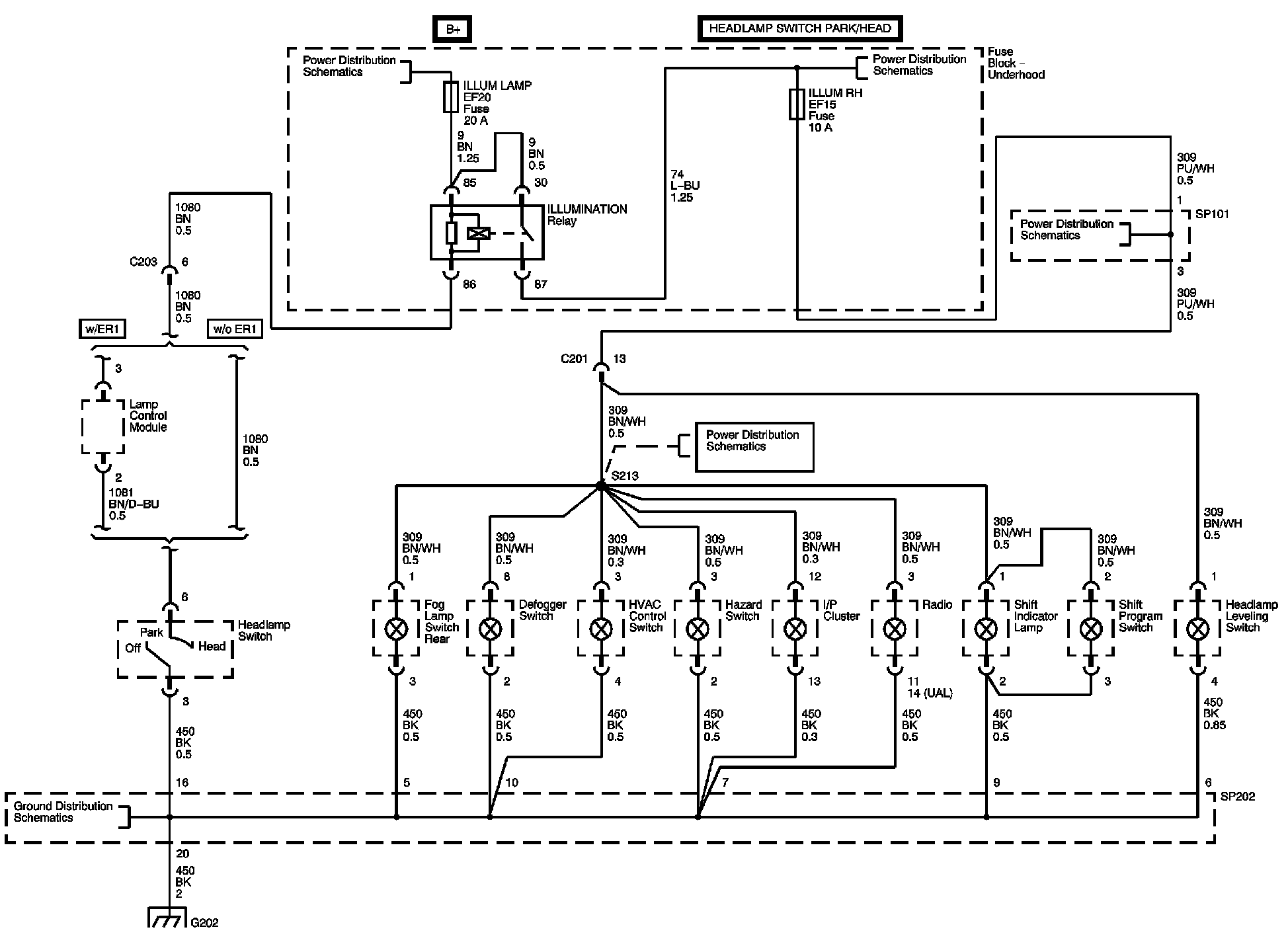

Interior Lights Dimming Diagram 2 (Hatchback)

Interior Lights Dimming Schematics (Hatchback)

w/o Dimmer






Previous Diagram: Interior Lights Dimming Diagram 1 (Hatchback)

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
