Headlights/Daytime Running Lights (DRL) Diagram 1 (Hatchback)

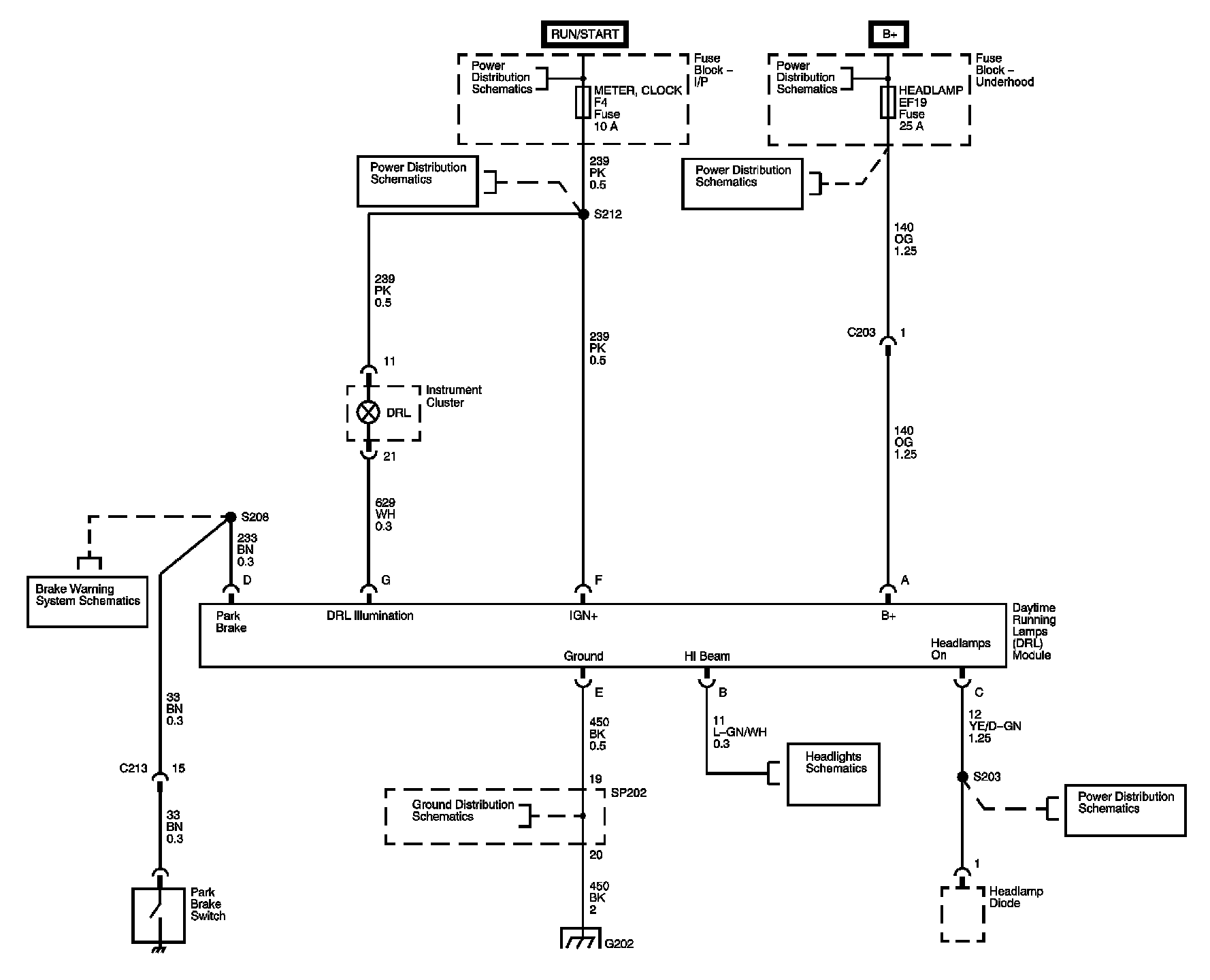

Headlights/Daytime Running Lights (DRL) Schematics (Hatchback)

North America






Next Diagram: Headlights/Daytime Running Lights (DRL) Diagram 2 (Hatchback)

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
