Exterior Lights Diagram 3 (Notchback)

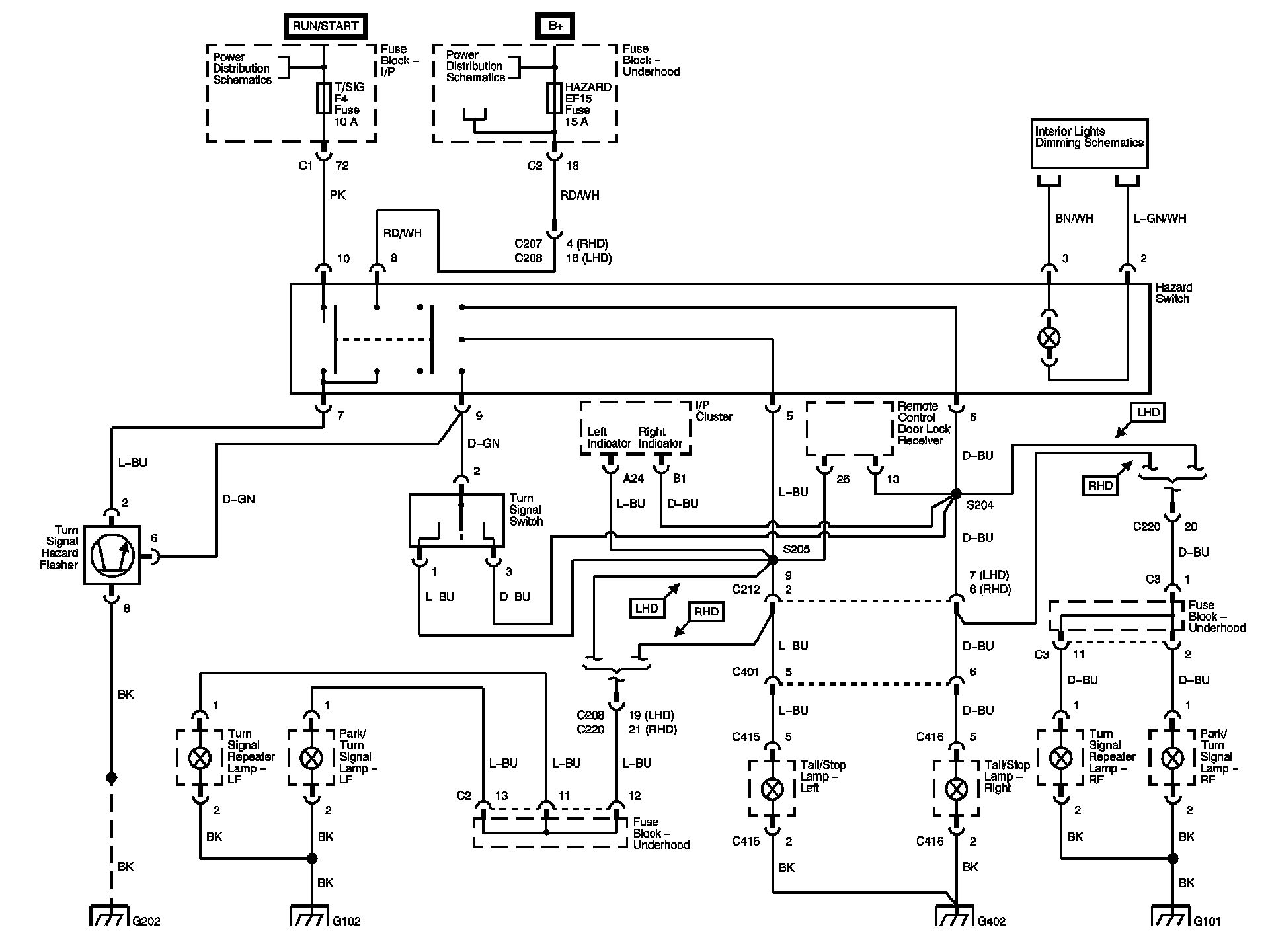

Exterior Lights Schematics (Notchback)

Turn Signals






Next Diagram: Exterior Lights Diagram 4 (Notchback)

Previous Diagram: Exterior Lights Diagram 2 (Notchback)

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
