C351
C351
Inline Harness Connector End Views (Notchback)

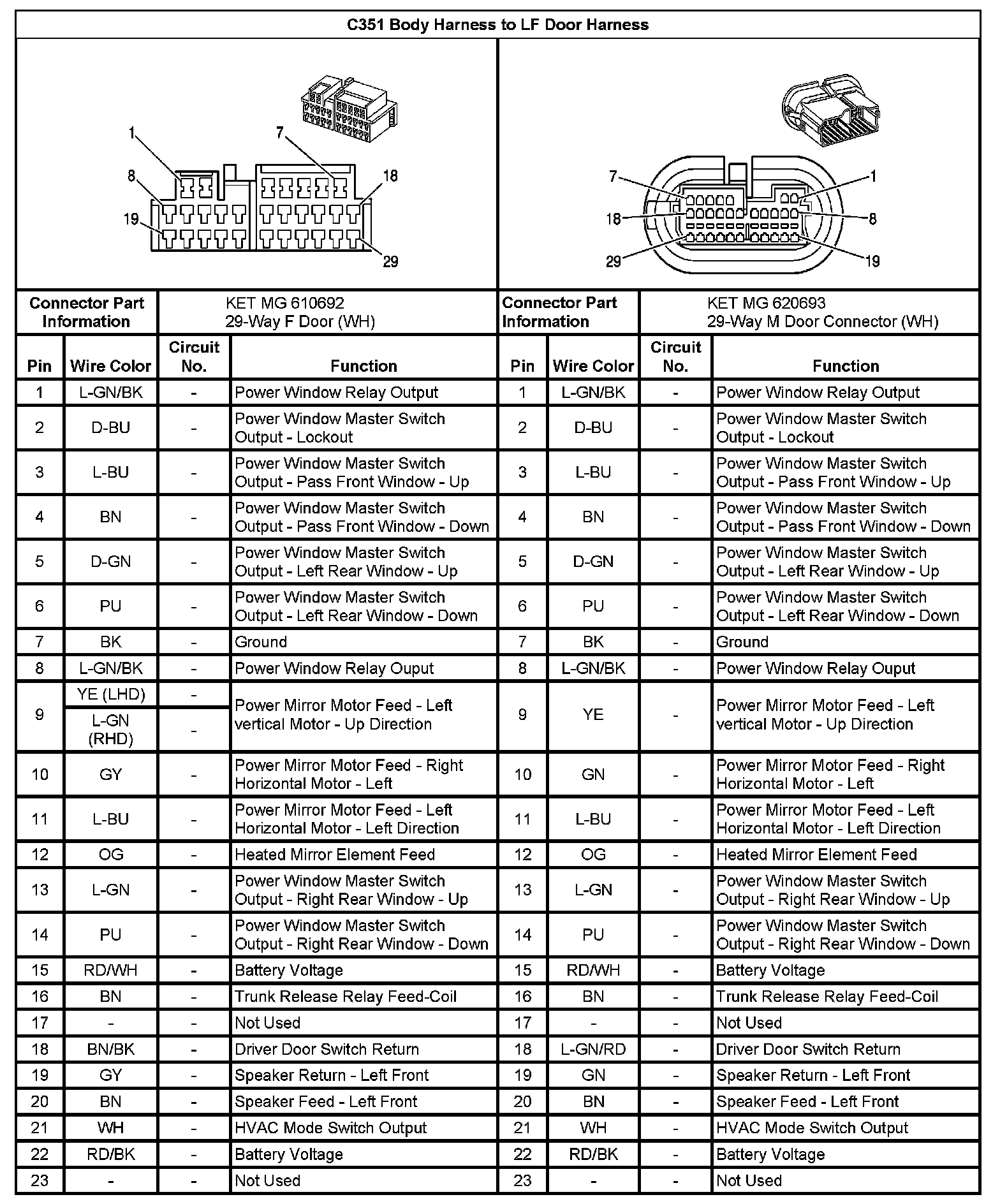

C351 Body Harness To LF Door Harness (Pin 1 To 23):

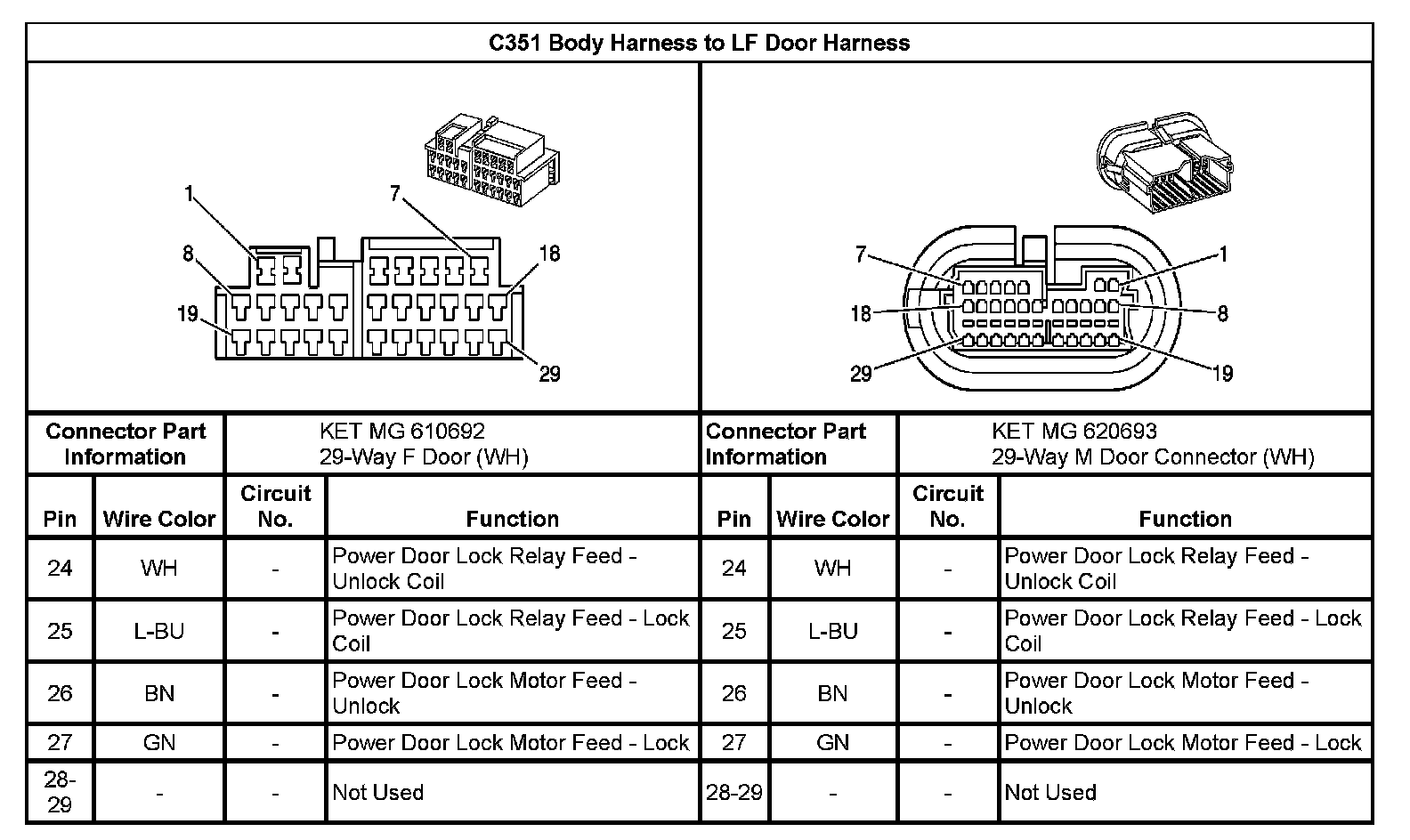

C351 Body Harness To LF Door Harness (Pin 24 To 29):
