Home >> Pontiac >> 2007 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> Inline Harness Connector End Views (Hatchback) >> C100 - C199 >> C104

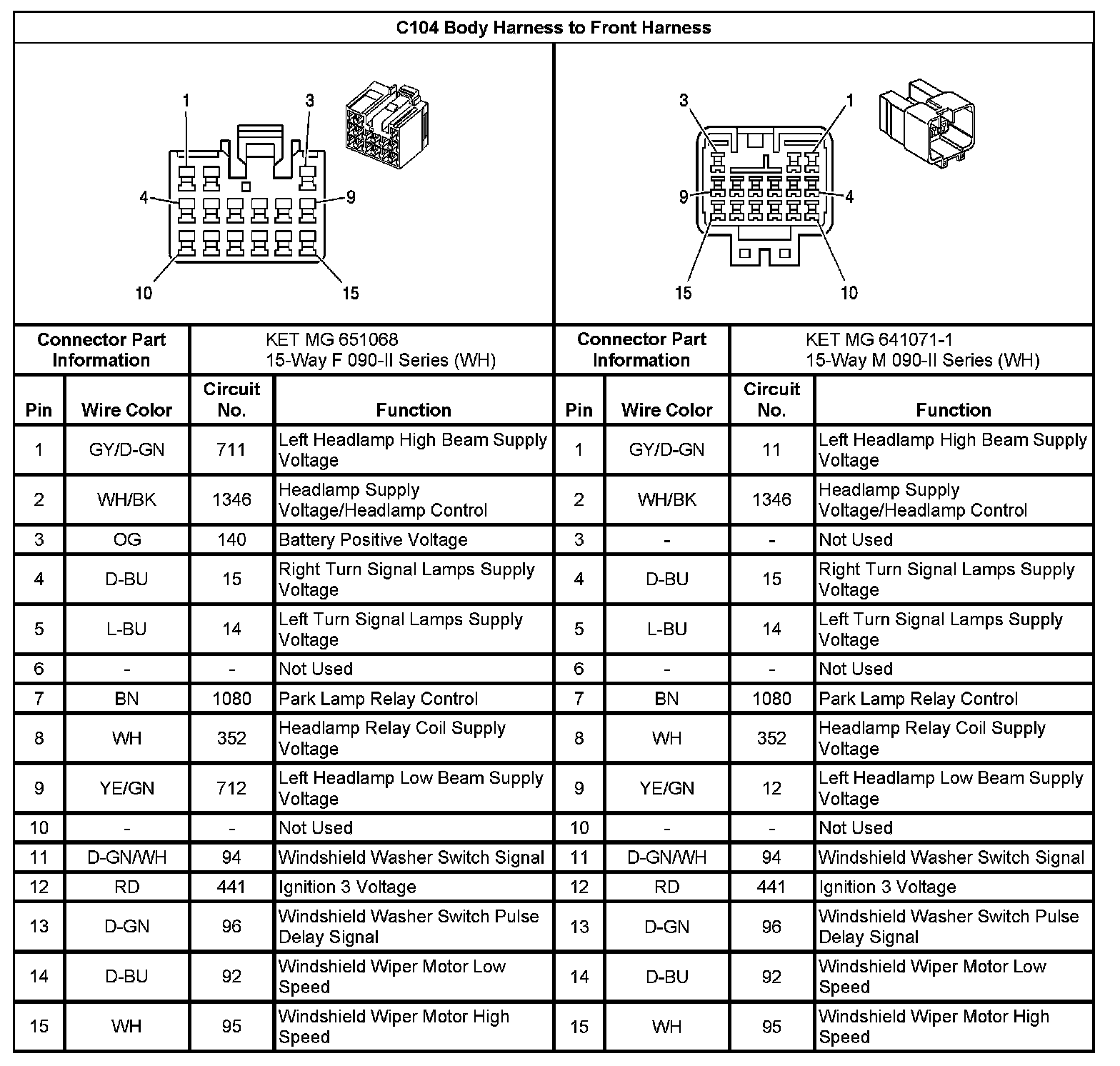

C104



Inline Harness Connector End Views (Hatchback)
