Underhood Fuse Block
Electrical Center Identification Views (Hatchback)
Fuse Block - Underhood Top View
Fuse Block - Underhood Wire Entry View

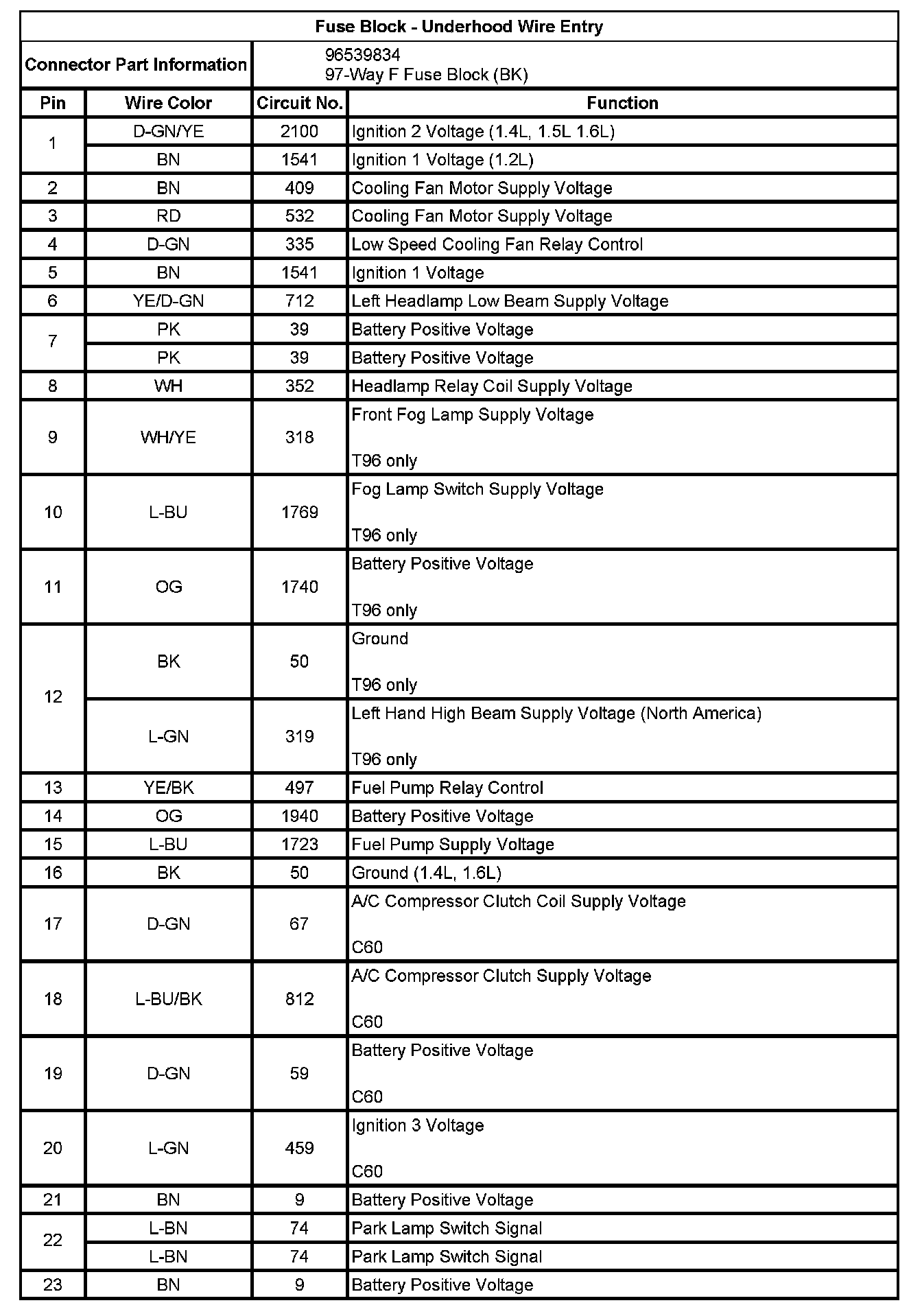

Fuse Block -Underhood Wire Entry (Pin 1 To 23):

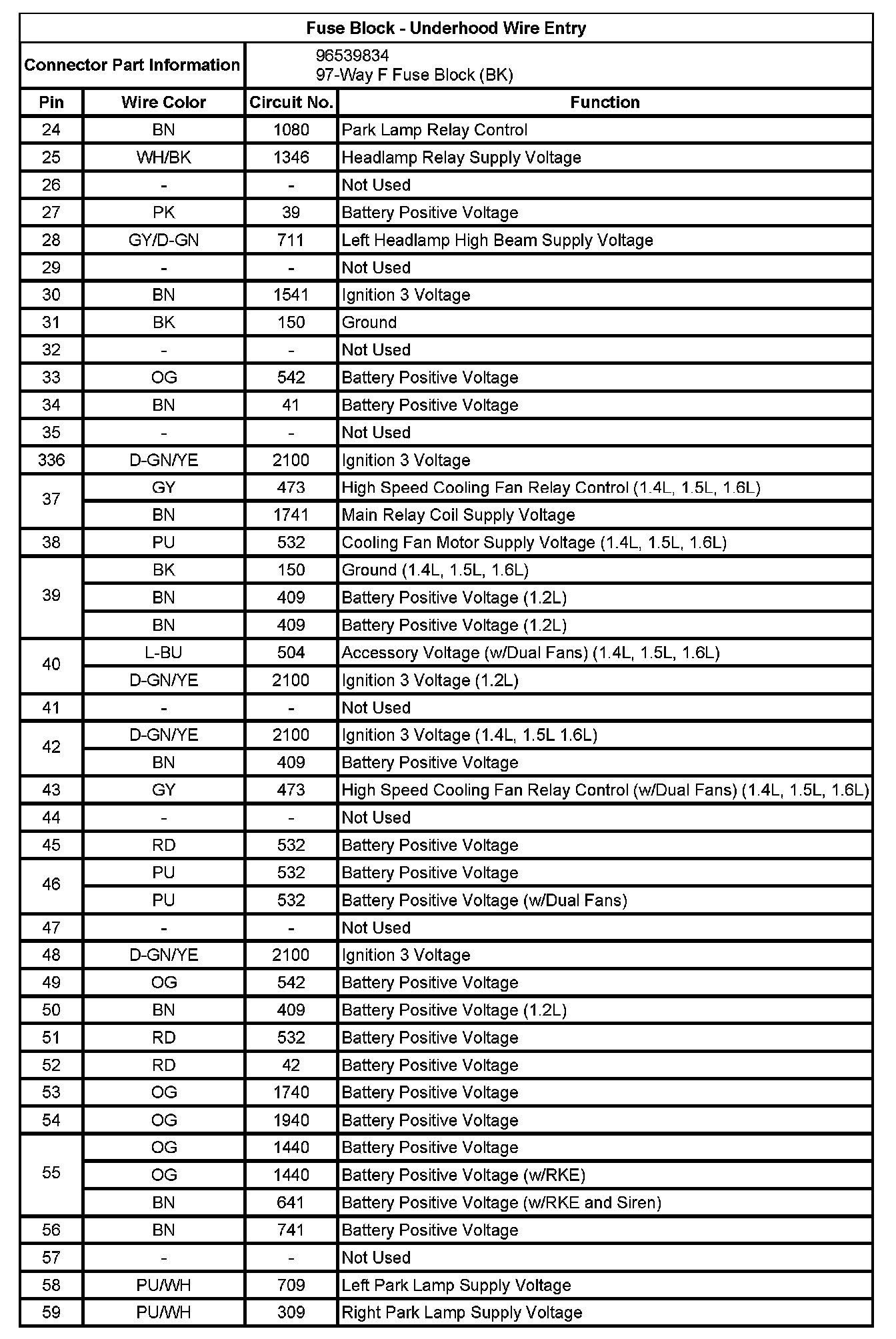

Fuse Block -Underhood Wire Entry (Pin 24 To 59):

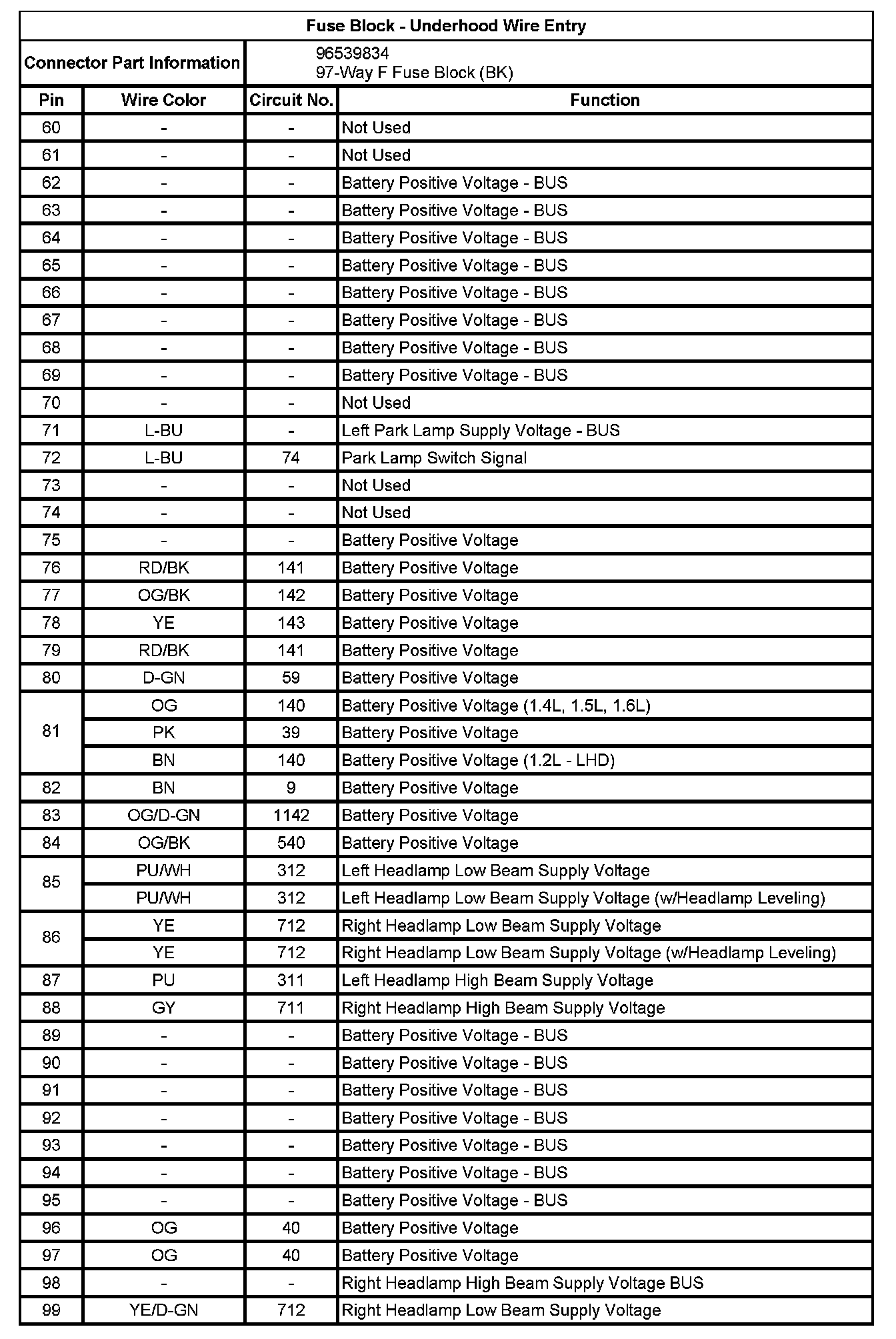

Fuse Block -Underhood Wire Entry (Pin 60 To 99):

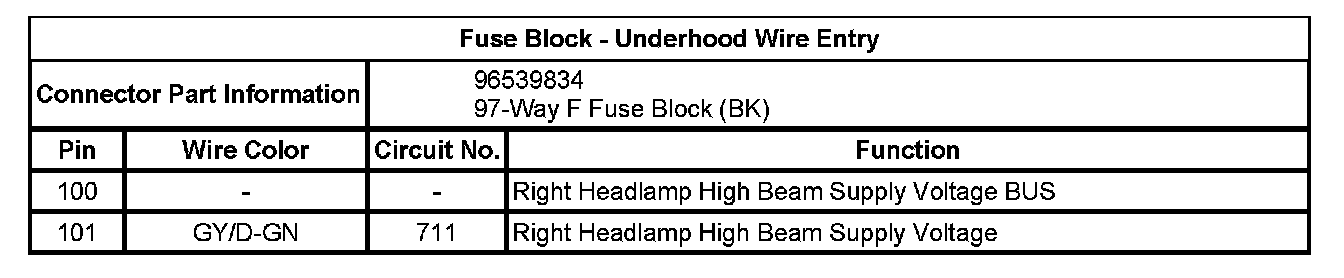

Fuse Block -Underhood Wire Entry (Pin 100 To 101):
