Remote Function Connector End Views (Notchback)



Remote Function Connector End Views (Notchback)

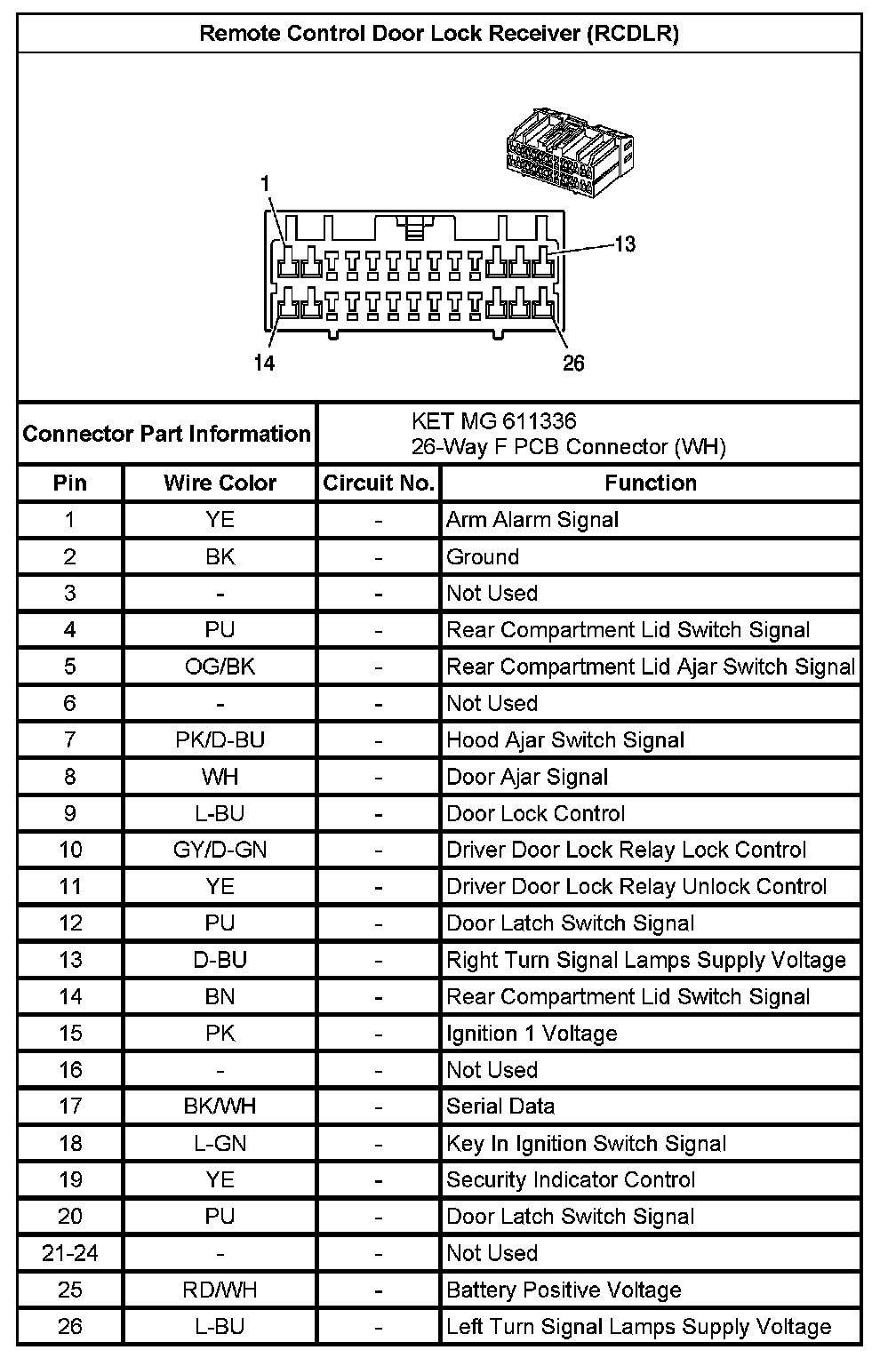

Remote Control Door Lock Receiver (RCDLR)
