Home >> Pontiac >> 2007 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Marker Lamp

Marker Lamp

k

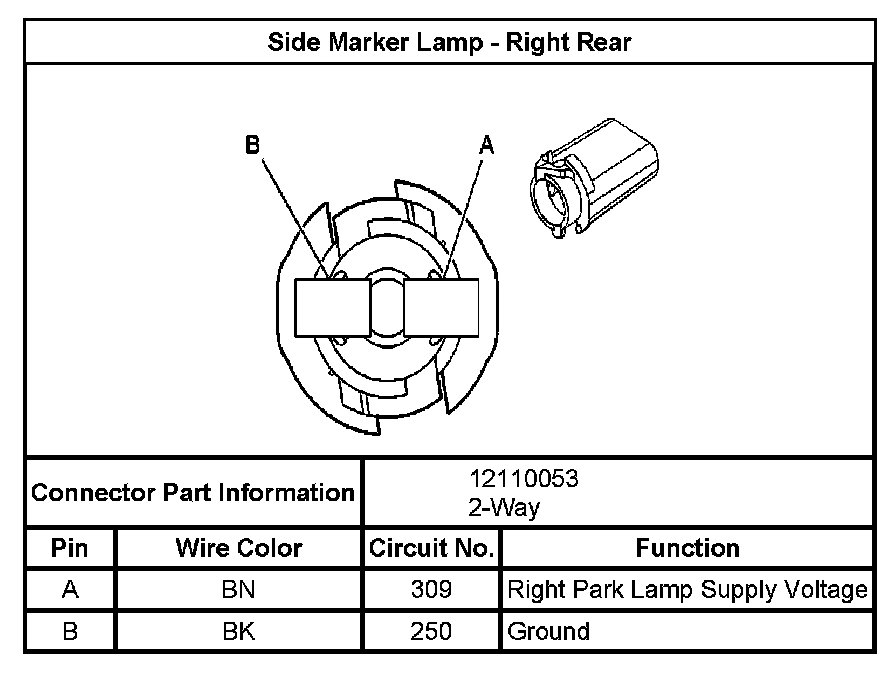

Lighting Systems Connector End Views (Hatchback)
