Audible Warning Device Control Module



Displays and Gages Connector End Views (Hatchback)

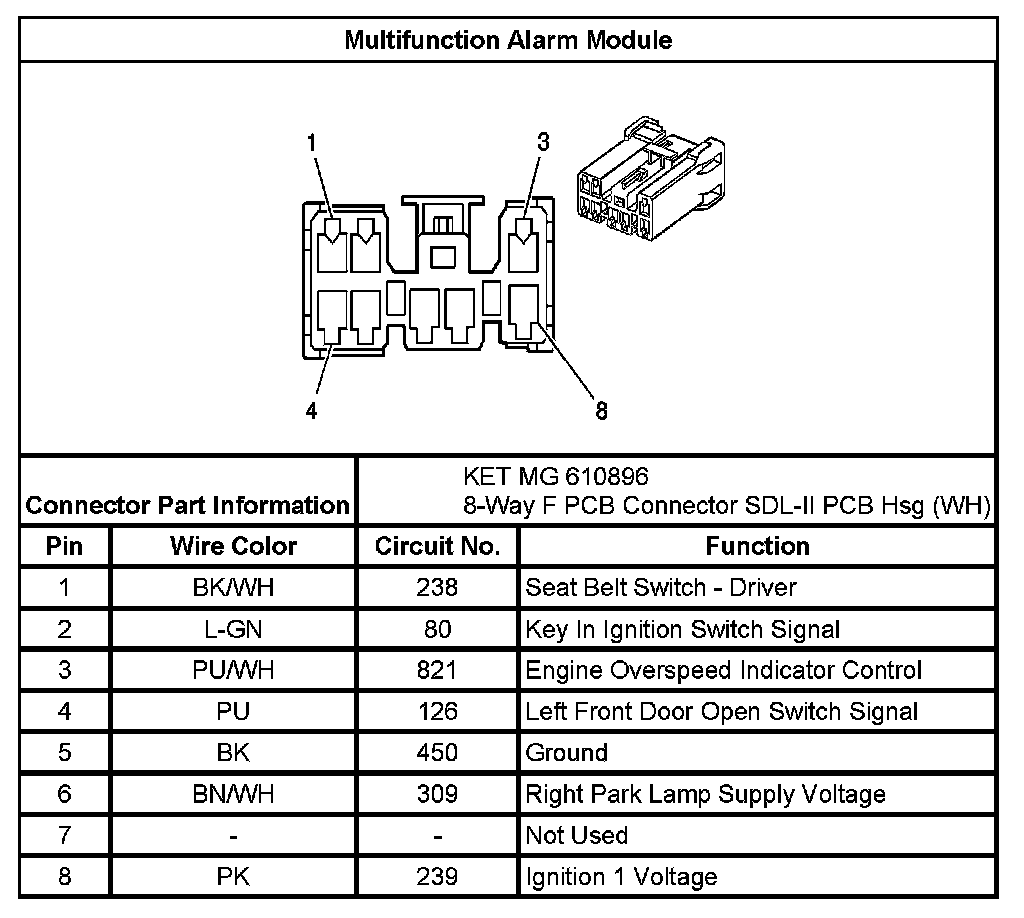

Multifunction Alarm Module
