HVAC - Automatic



HVAC Connector End Views

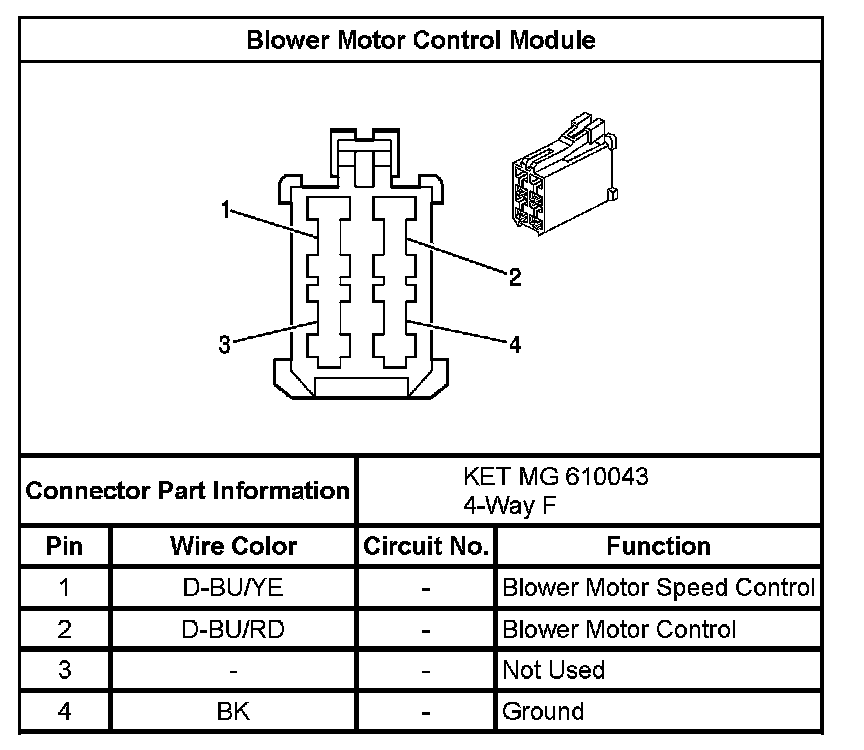

Blower Motor Control Module

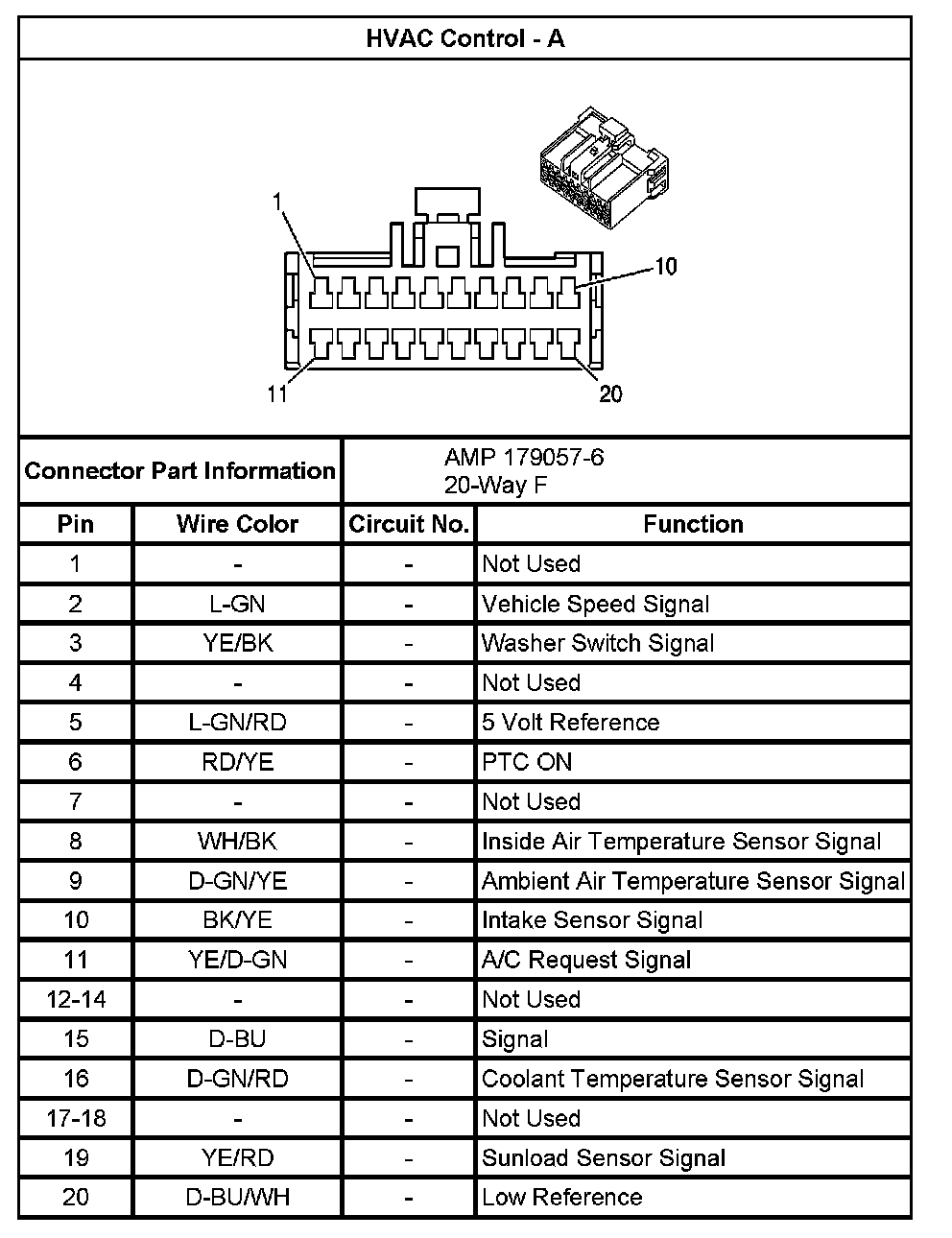

HVAC Control - A

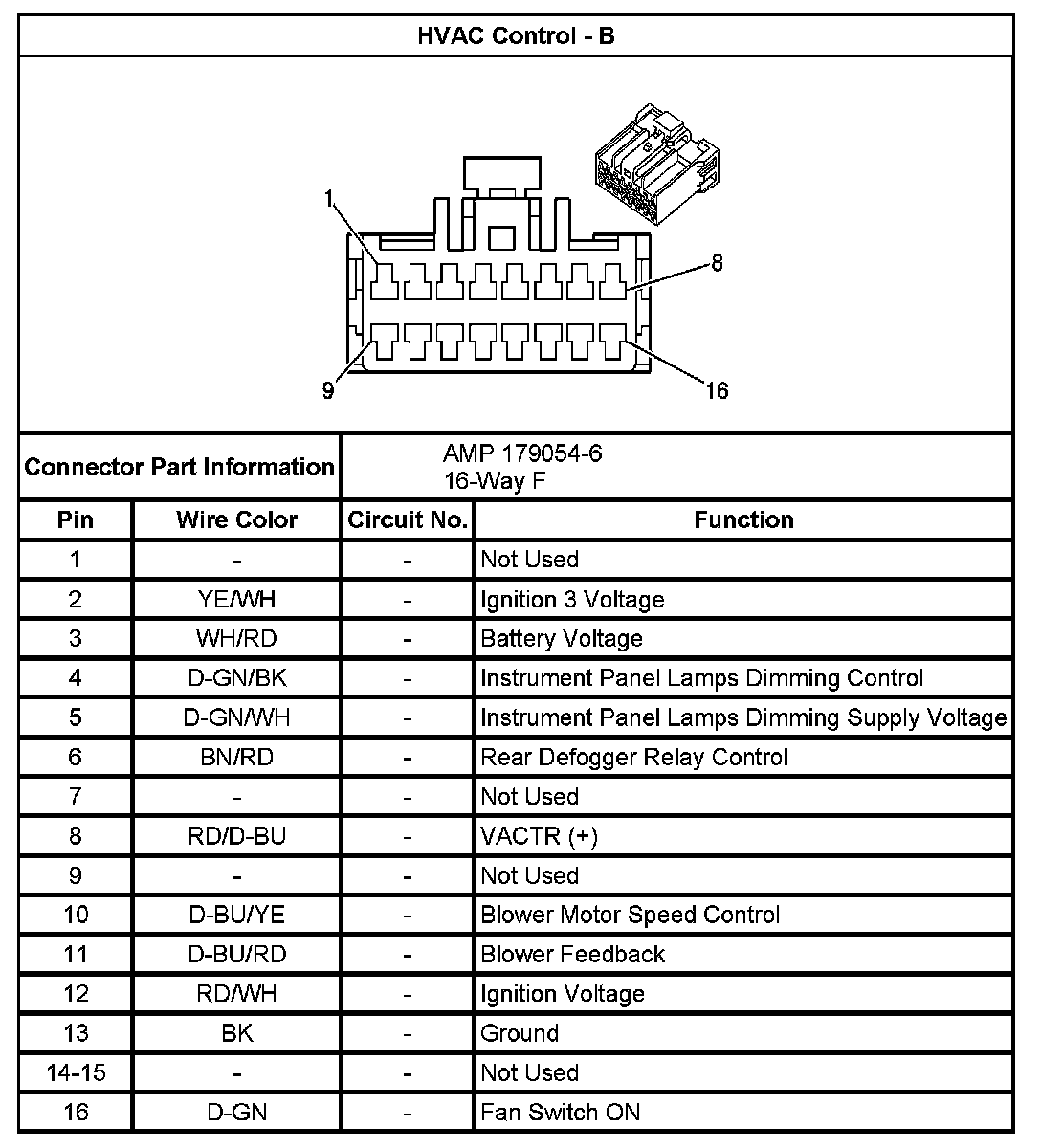

HVAC Control - B
