Shift Interlock Control Module



Shift Lock Control Connector End Views (Hatchback)

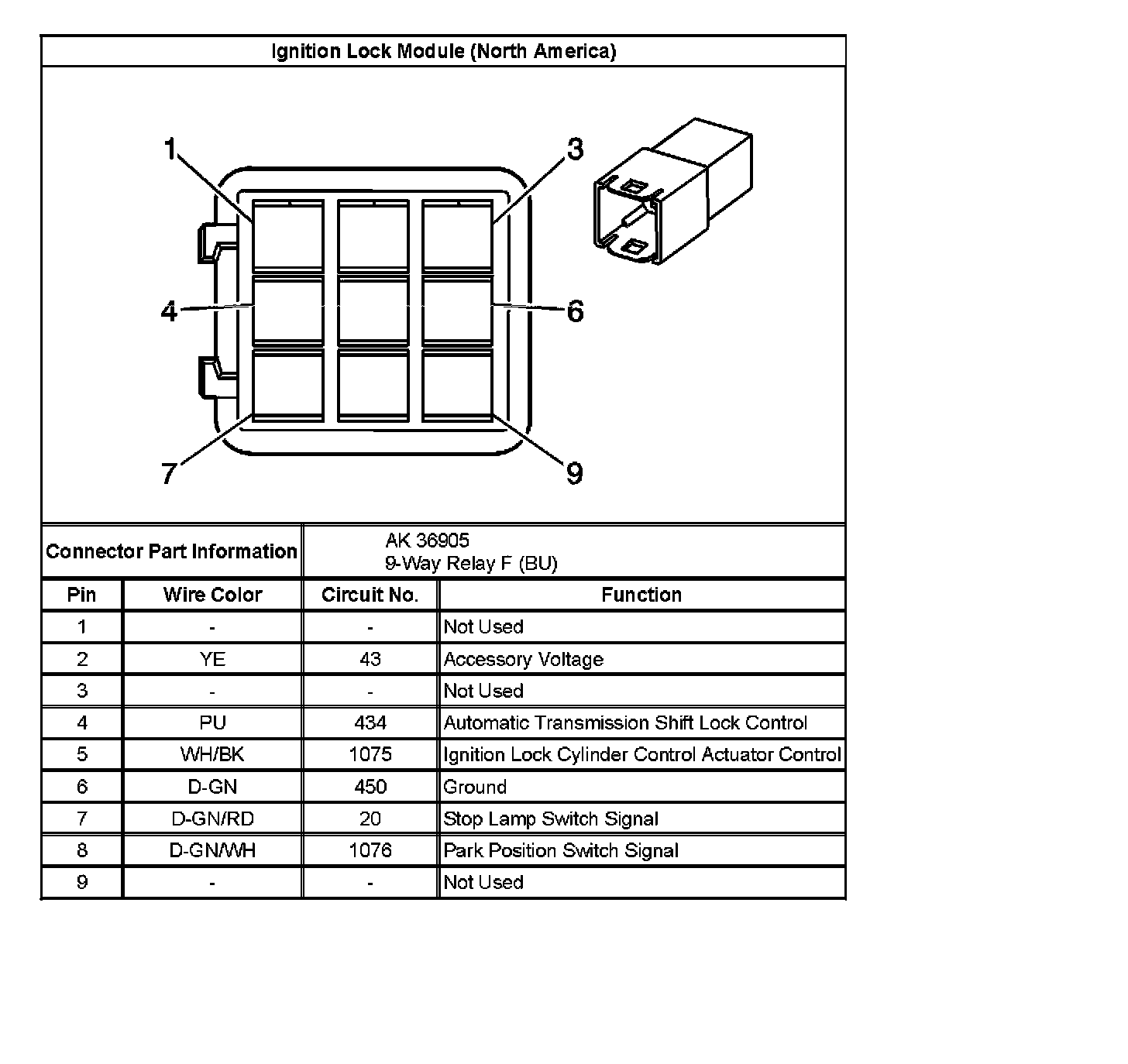

Ignition Lock Module (North America):
