Theft Deterrent System Connector End Views (Notchback)



Theft Deterrent System Connector End Views (Notchback)

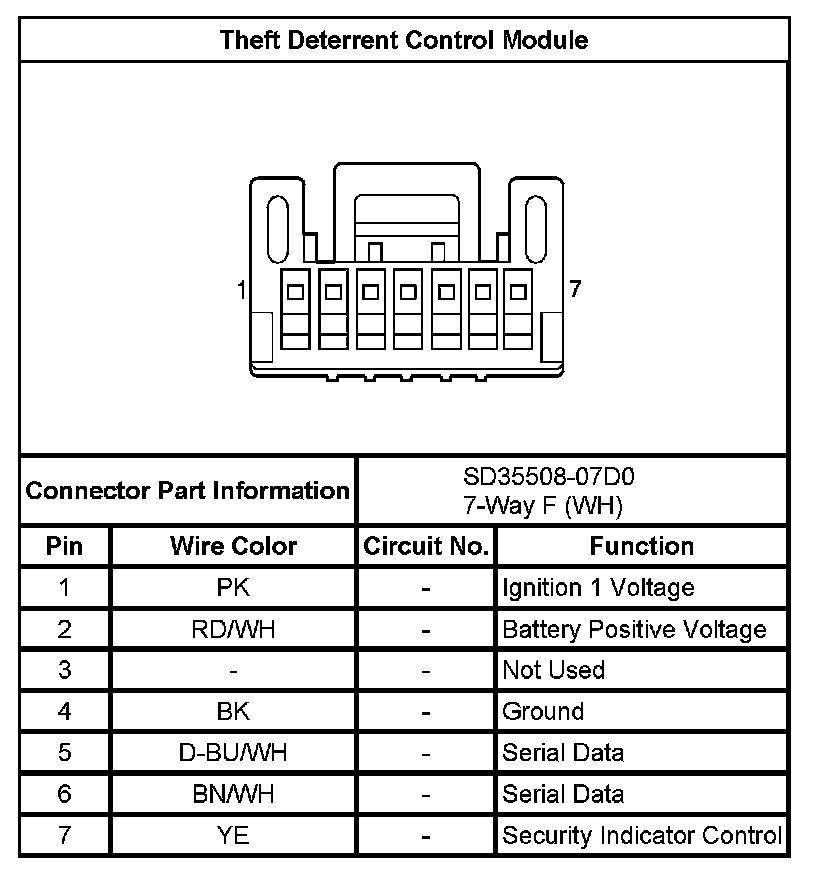

Theft Deterrent Control Module
