Rear Seat Back Cushion Latch Striker Replacement

Rear Seat Back Cushion Latch Striker Replacement

Removal Procedure





1. Remove the seat cushion. Refer to Rear Seat Cushion Replacement .
2. Remove the rear seat back. Refer to Seat Back Replacement - Rear Split Folding .

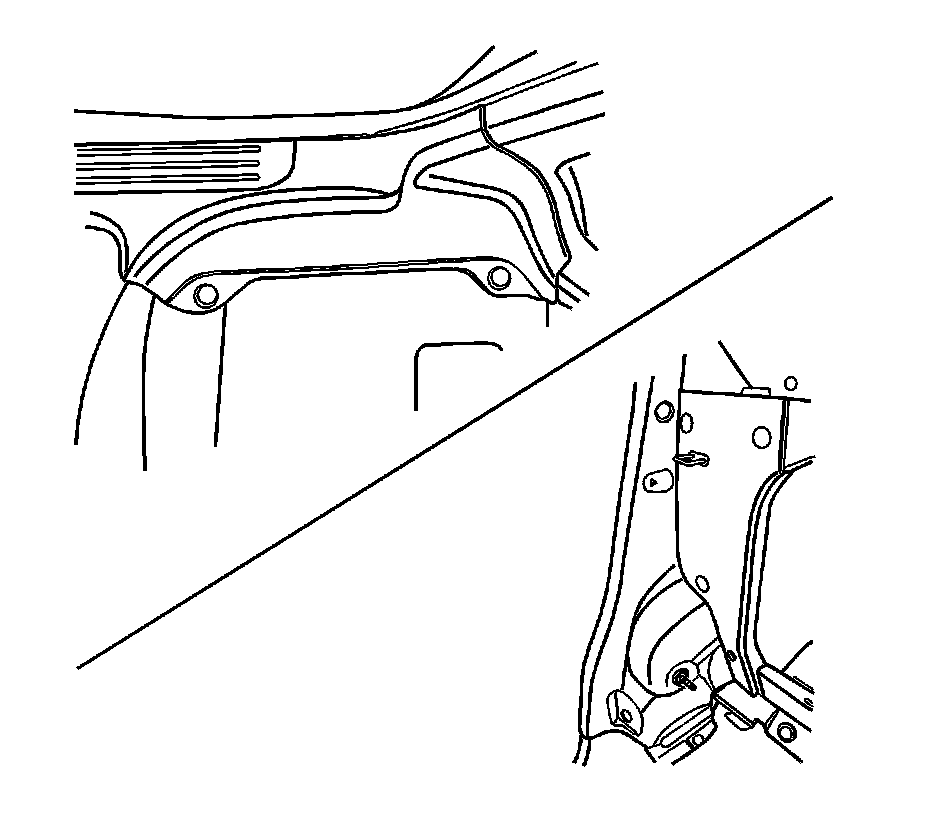

3. Remove the rear rocker panel cover.




4. Remove the front wheelhouse trim.
5. Remove the wheelhouse brace trim.

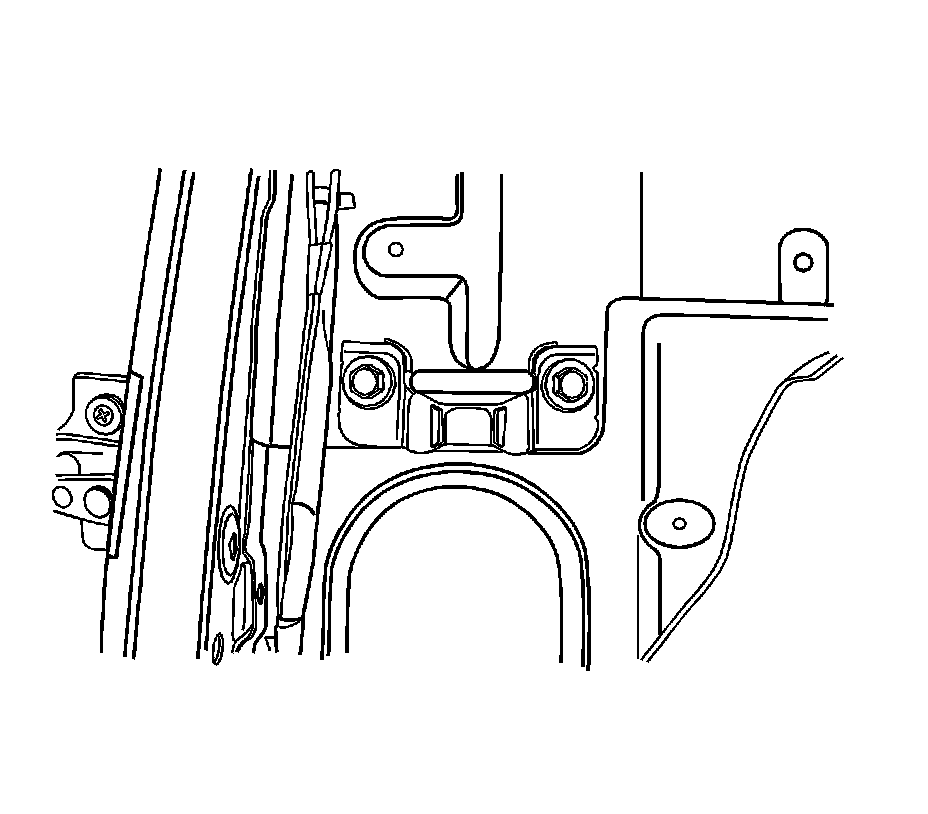

6. Remove the bolts and the rear seat back cushion latch striker.



Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the rear seat back cushion latch striker with the bolts.

Tighten the rear seat back cushion latch striker bolts to 24 N.m (18 lb ft).

2. Install the wheelhouse brace trim.
3. Install the front wheelhouse trim.




4. Install the rear rocker panel cover.
5. Install the rear seat back. Refer to Seat Back Replacement - Rear Split Folding .
6. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
