Power Door Locks Inoperative - All Doors and Switches
Power Door Locks Inoperative - All Doors and Switches
Power Door Locks Inoperative - All Doors and Switches
Test

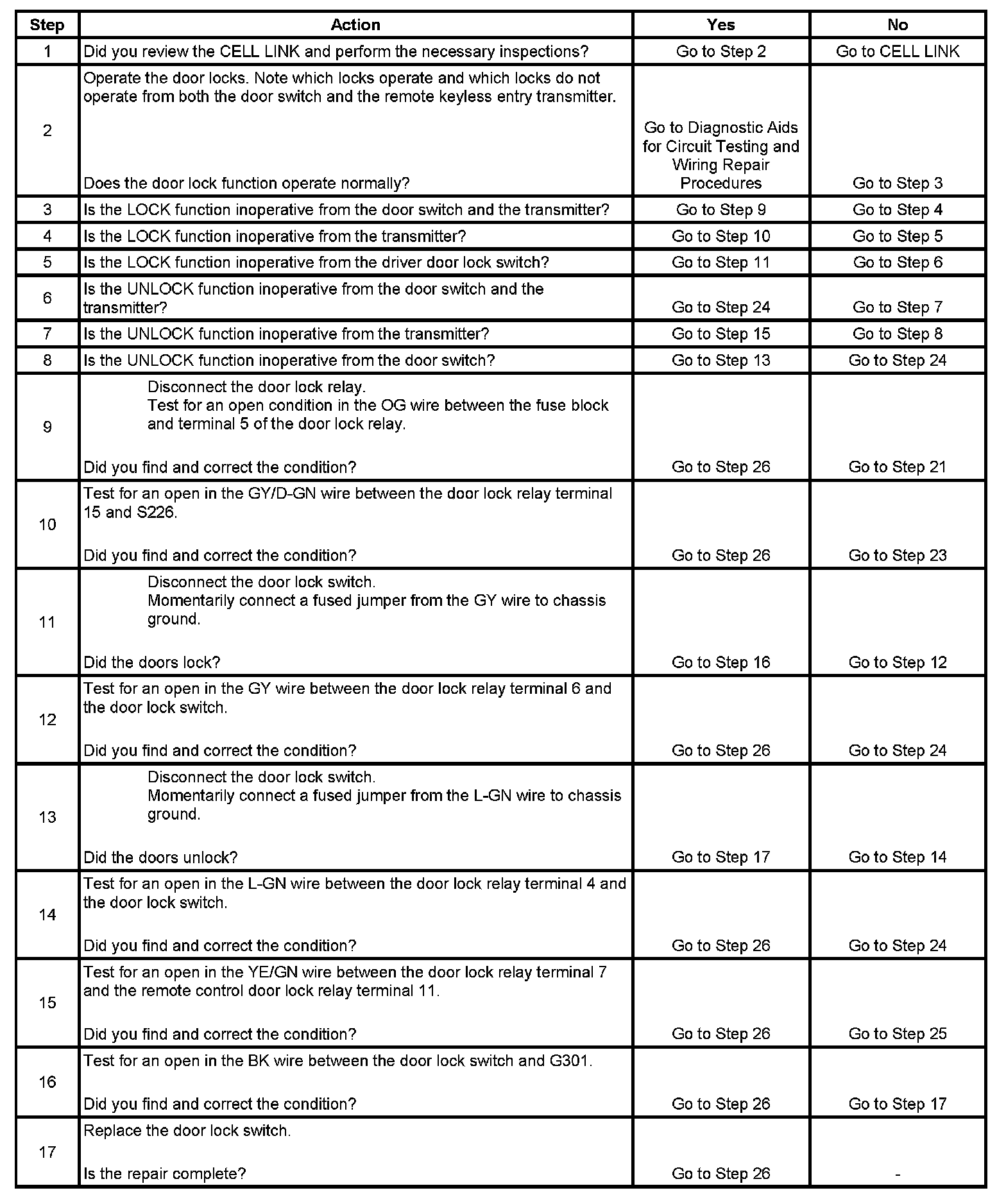

Step 1 - Step 17:

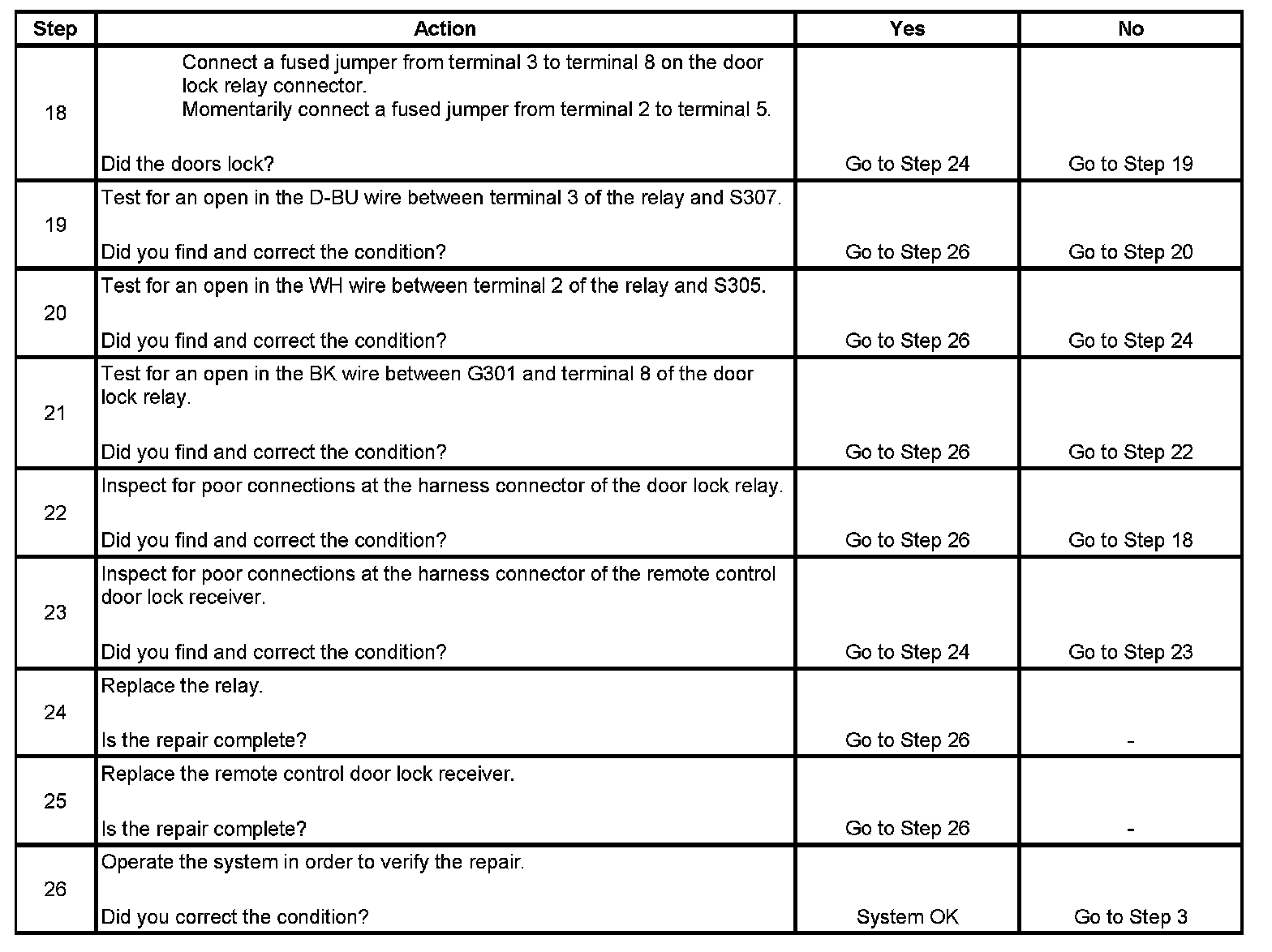

Step 18 - Step 26:
