Hood Hinge: Service and Repair

Hood Hinge Replacement

Removal Procedure





1. Remove the hood. Refer to Hood Replacement .

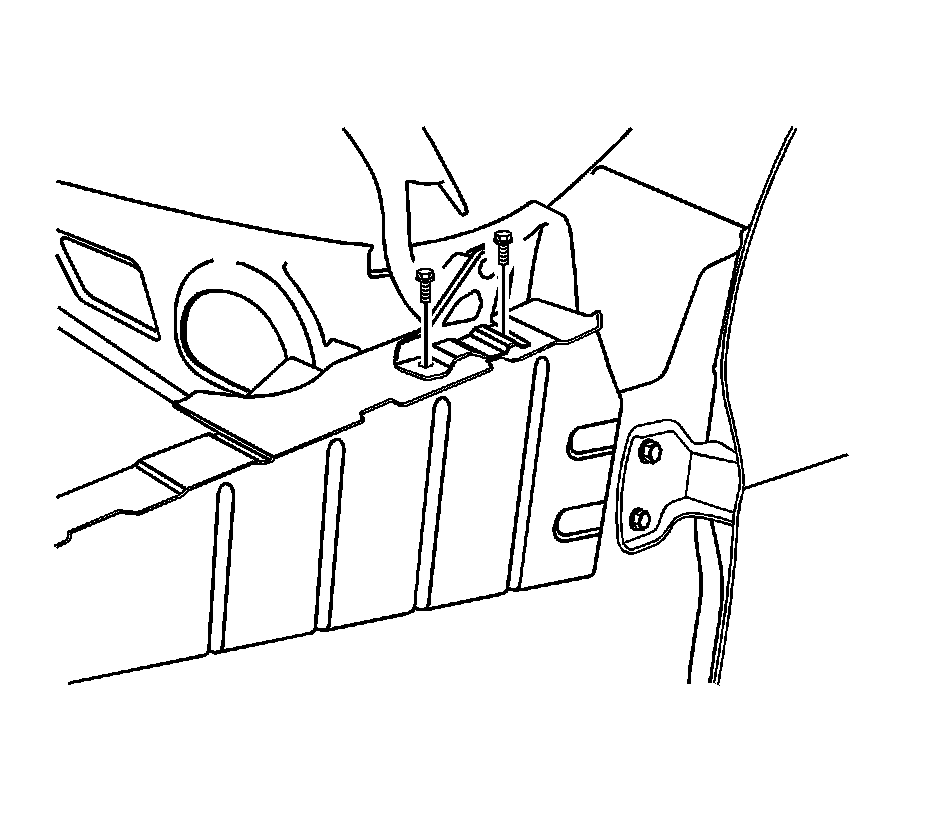

2. Remove the bolts and the hinge.



Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the hinge with the bolts.

Tighten the hinge bolts to 20 N.m (15 lb ft).

2. Install the hood. Refer to Hood Replacement .
