Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Diagrams >> Connector Views

Connector Views



Manual Transmission Connector End Views

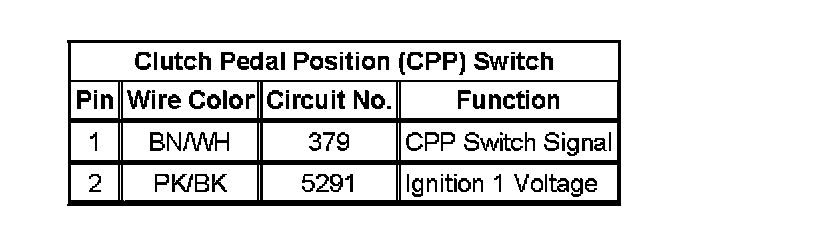

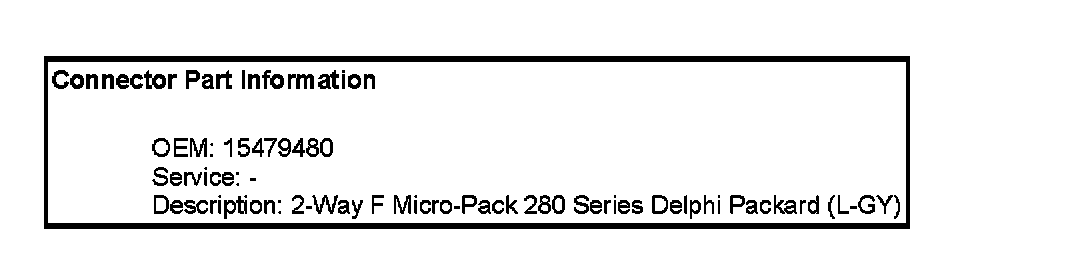

Clutch Pedal Position (CPP) Switch:

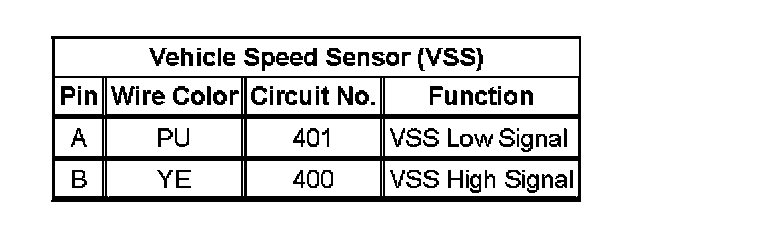

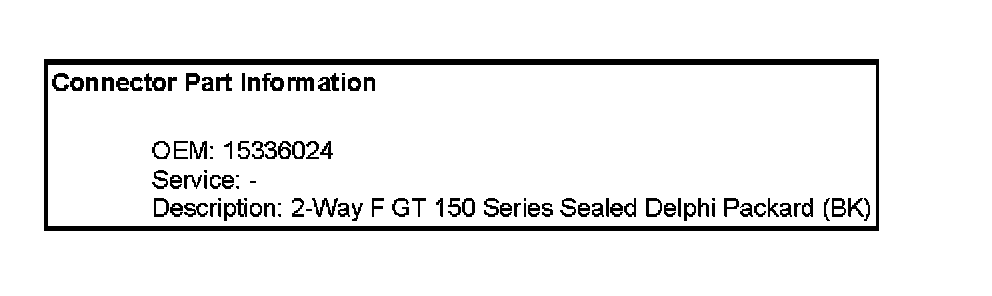

Vehicle Speed Sensor (VSS):
