Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Removal and Replacement >> Differential Carrier Bracket Replacement

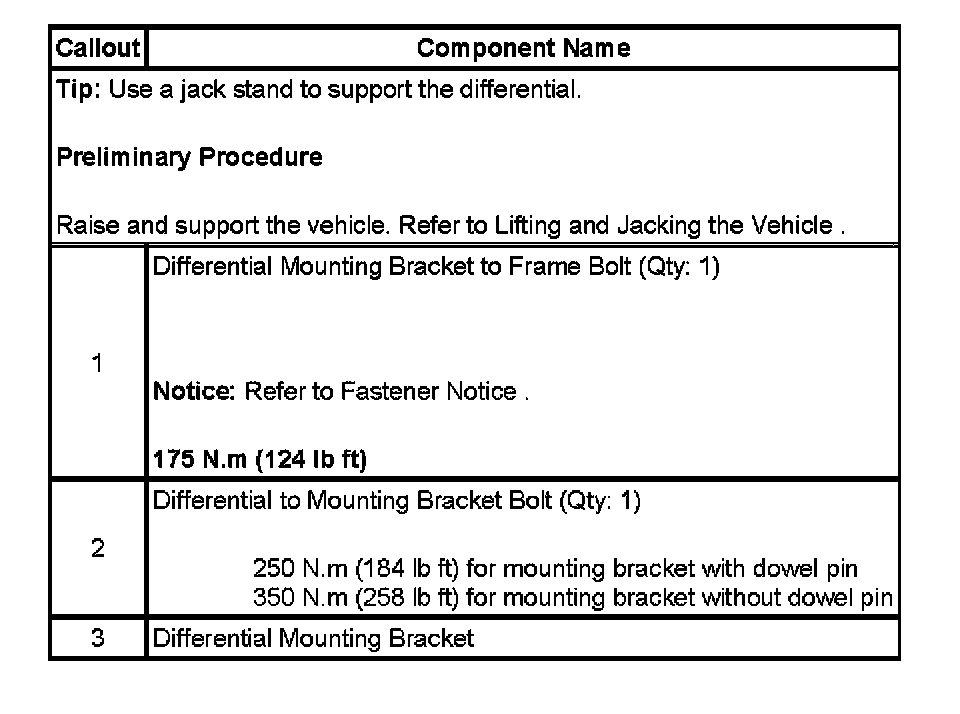

Differential Carrier Bracket Replacement



Differential Carrier Bracket Replacement
