Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

Charging System Test

Charging System Test

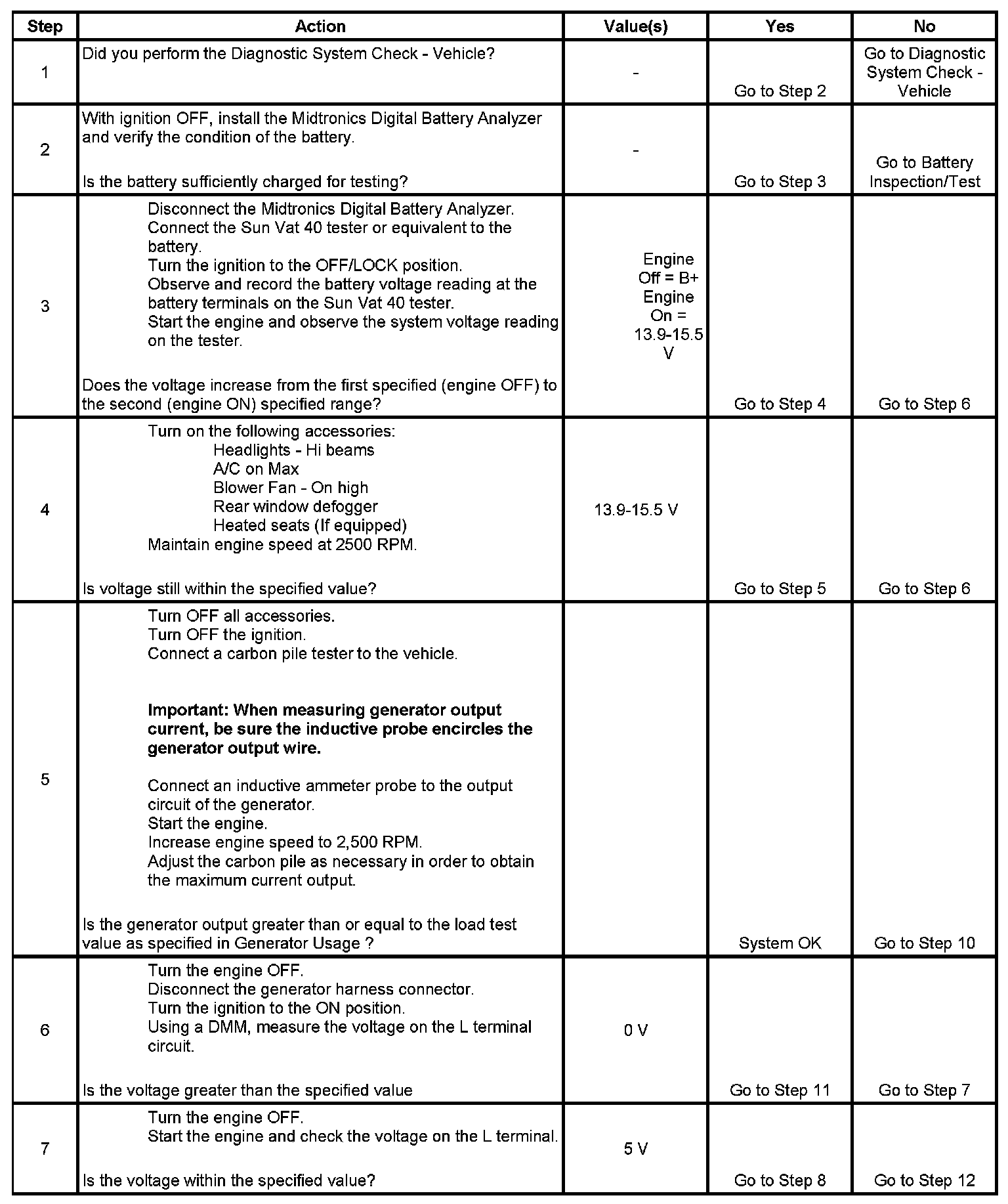

Step 1 - Step 7:

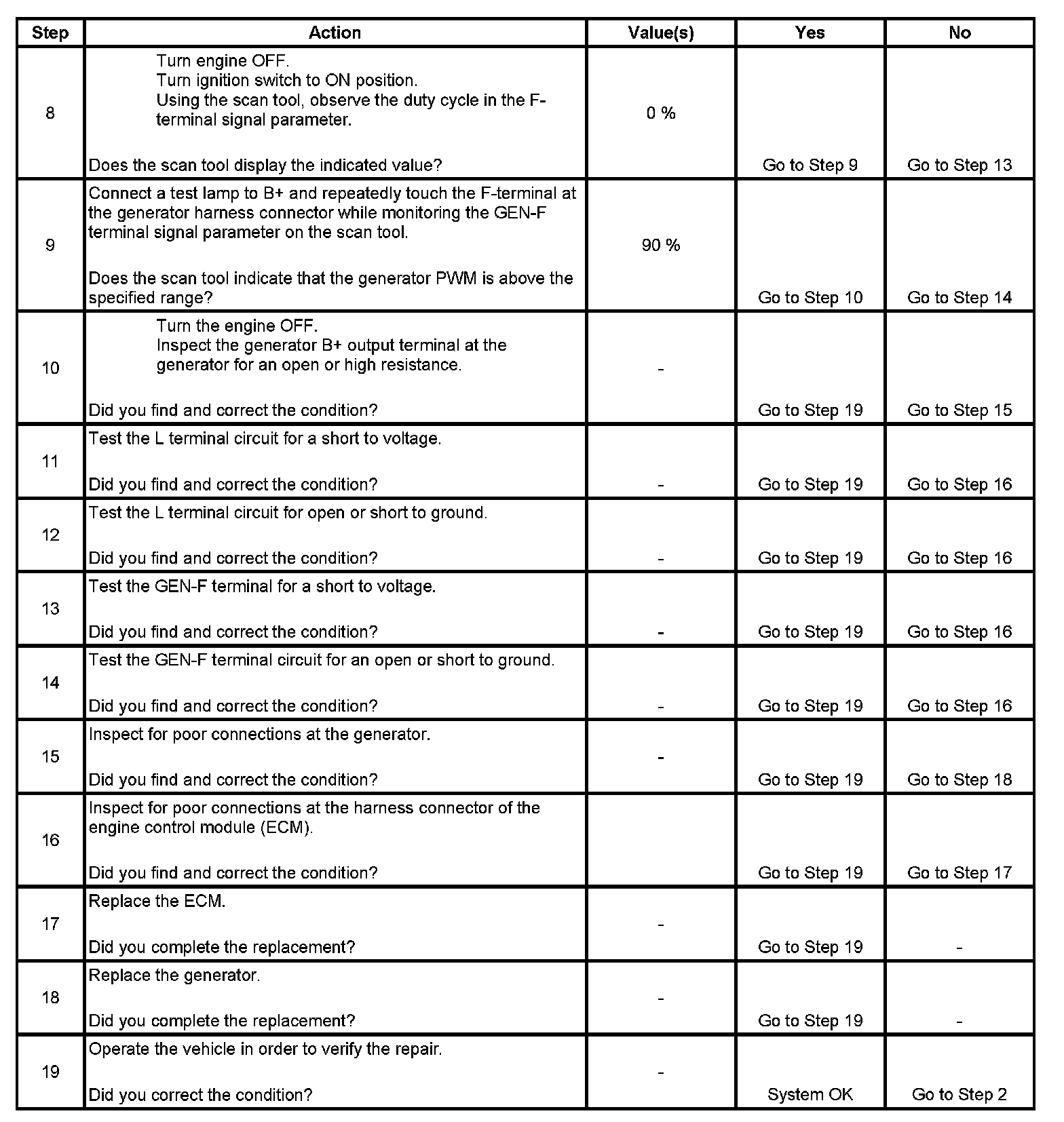

Step 8 - Step 19:
