Body Control Module: Diagrams
Data Communication Connector End Views

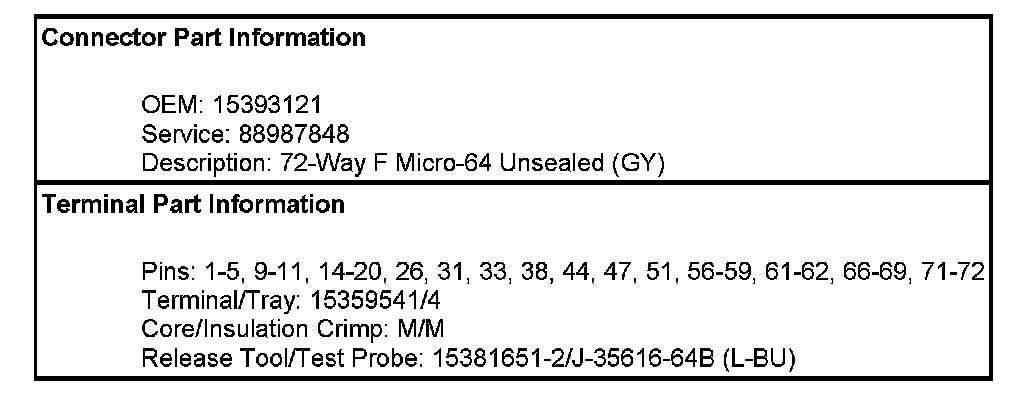

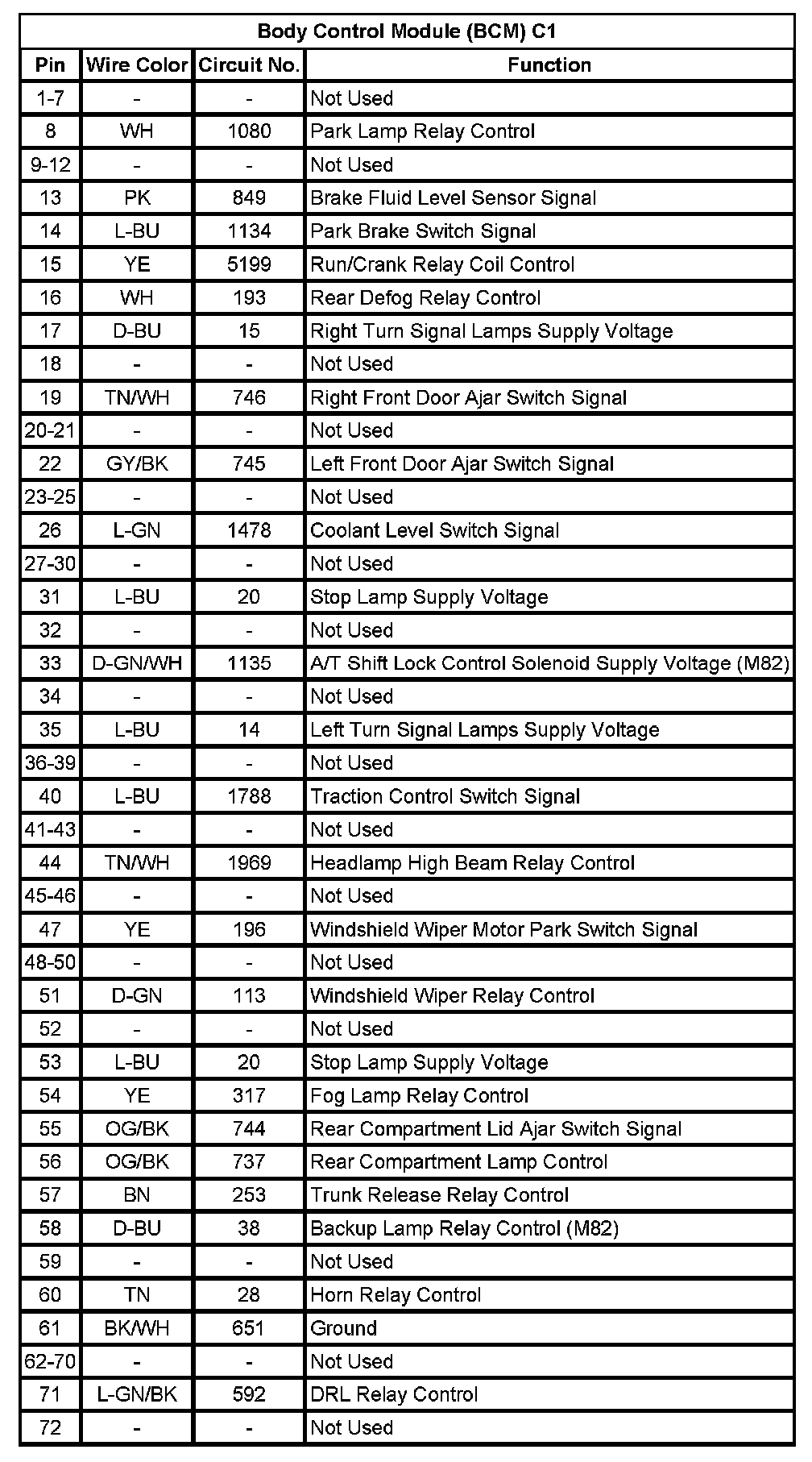

Body Control Module (BCM) C1

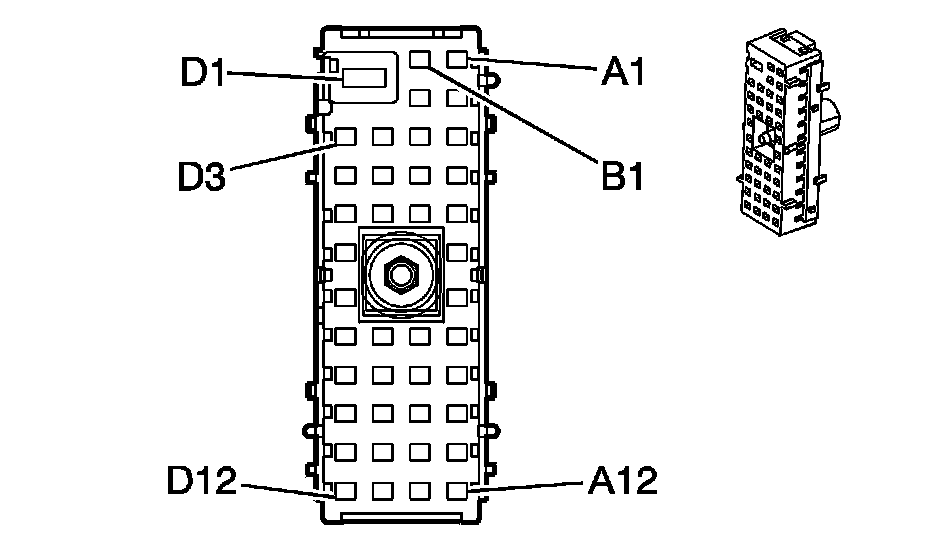

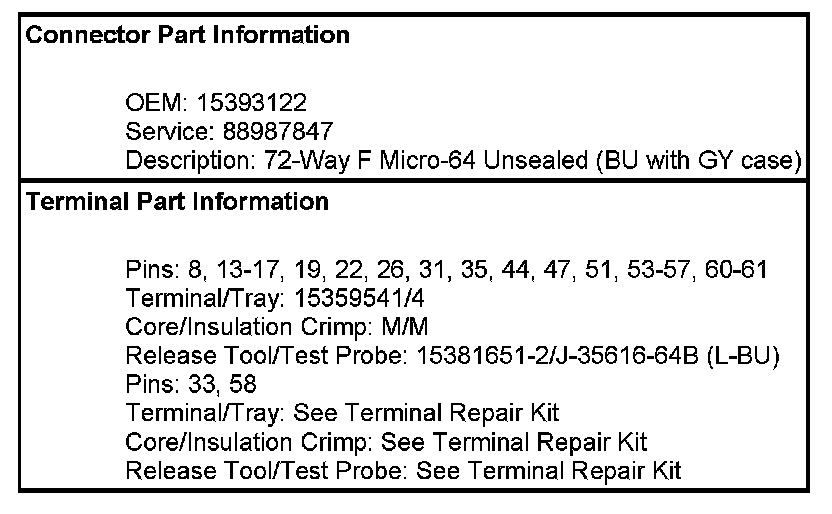

Body Control Module (BCM) C2

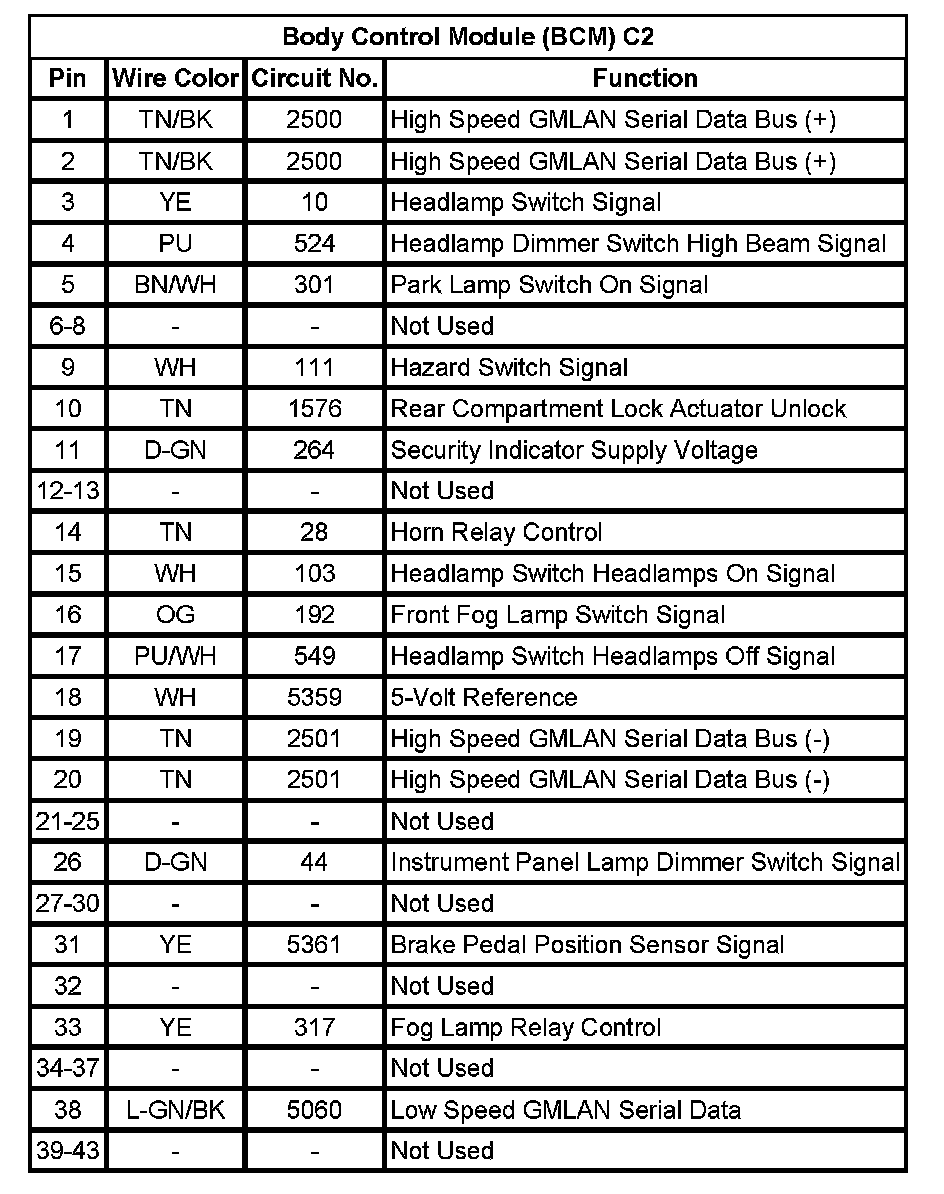

Body Control Module (BCM) C2 (Pin 1 To 43):

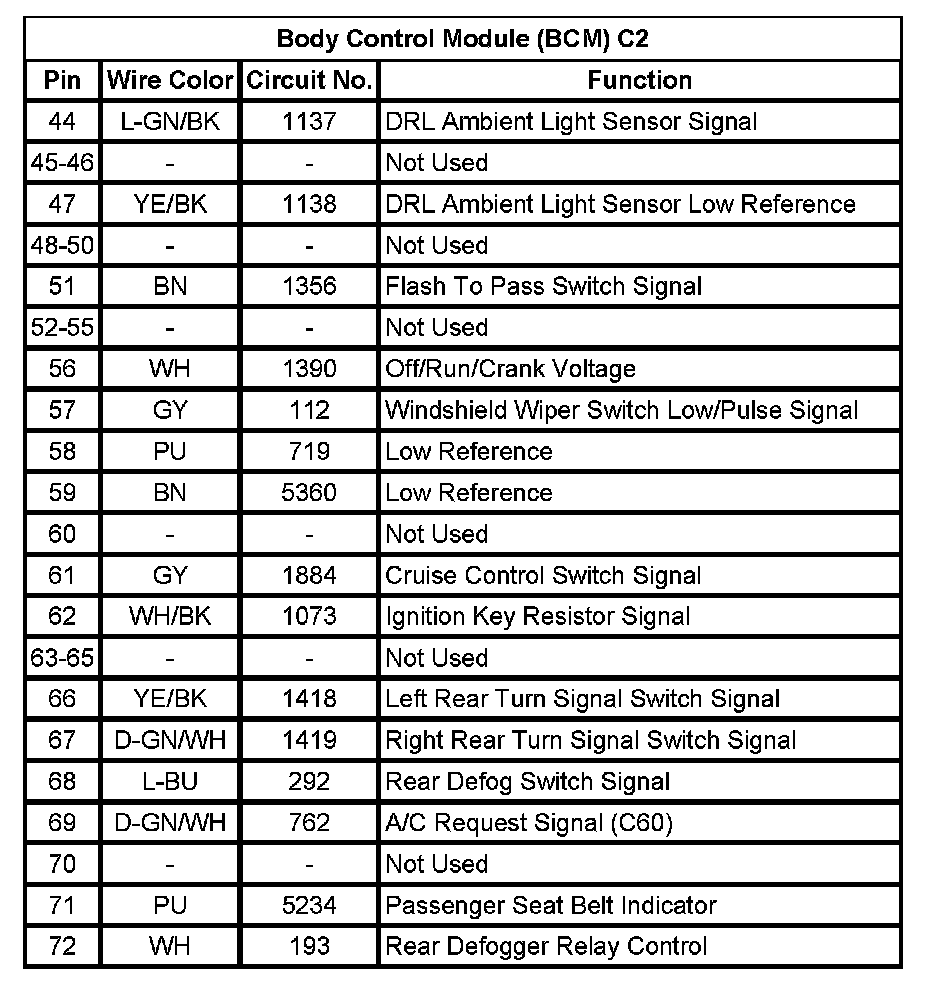

Body Control Module (BCM) C2 (Pin 44 To 72):

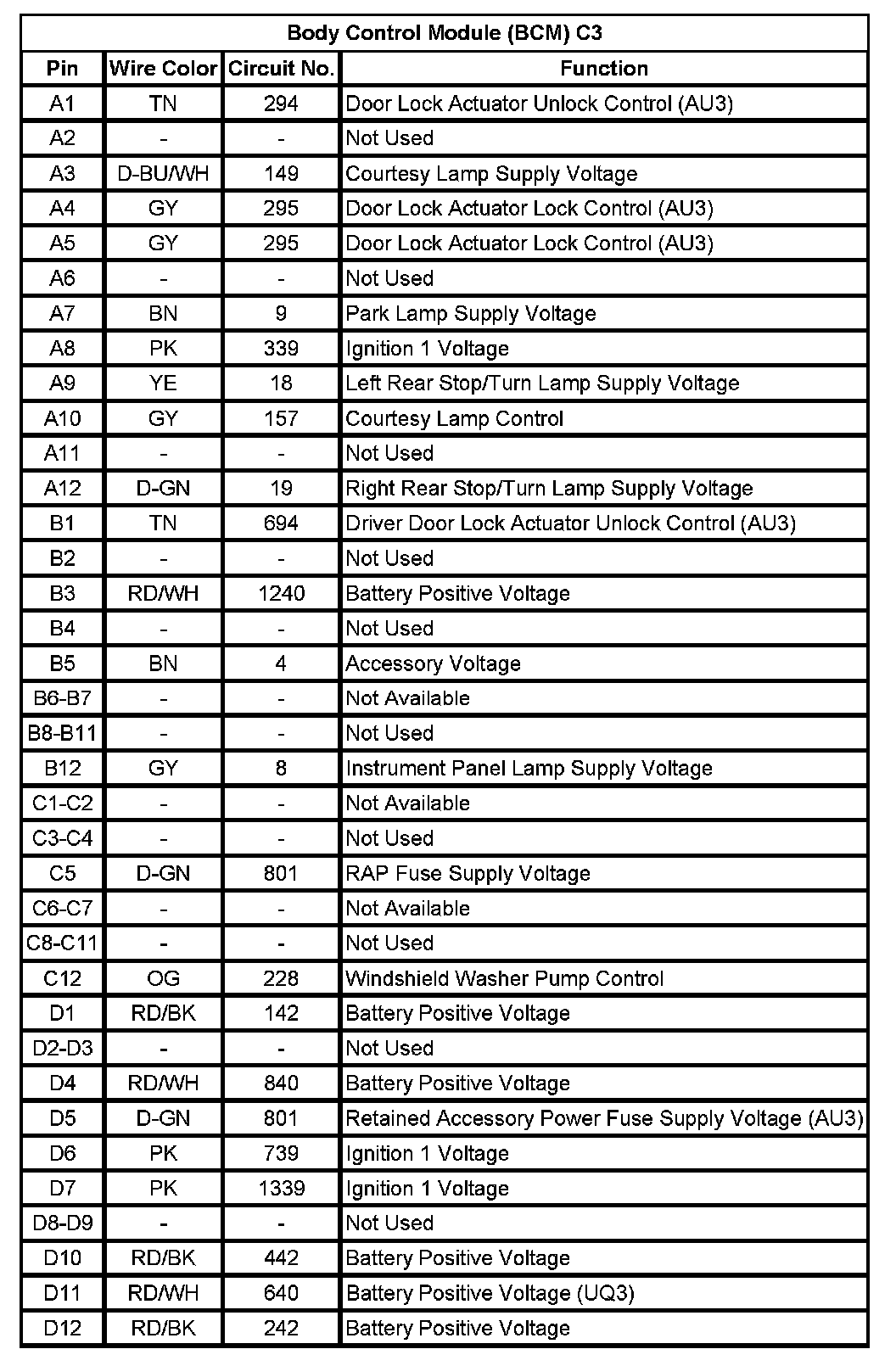

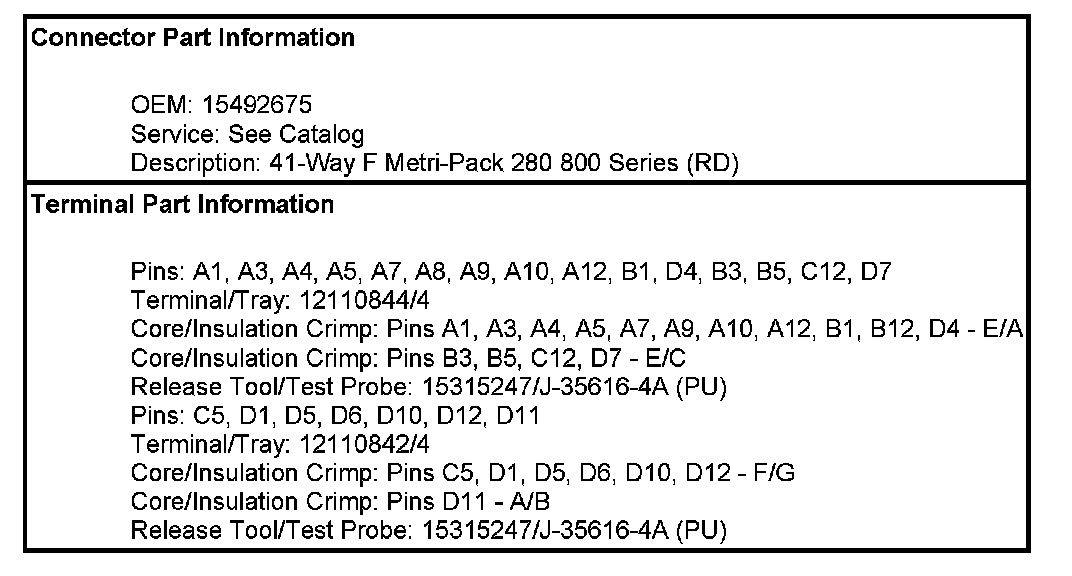

Body Control Module (BCM) C3

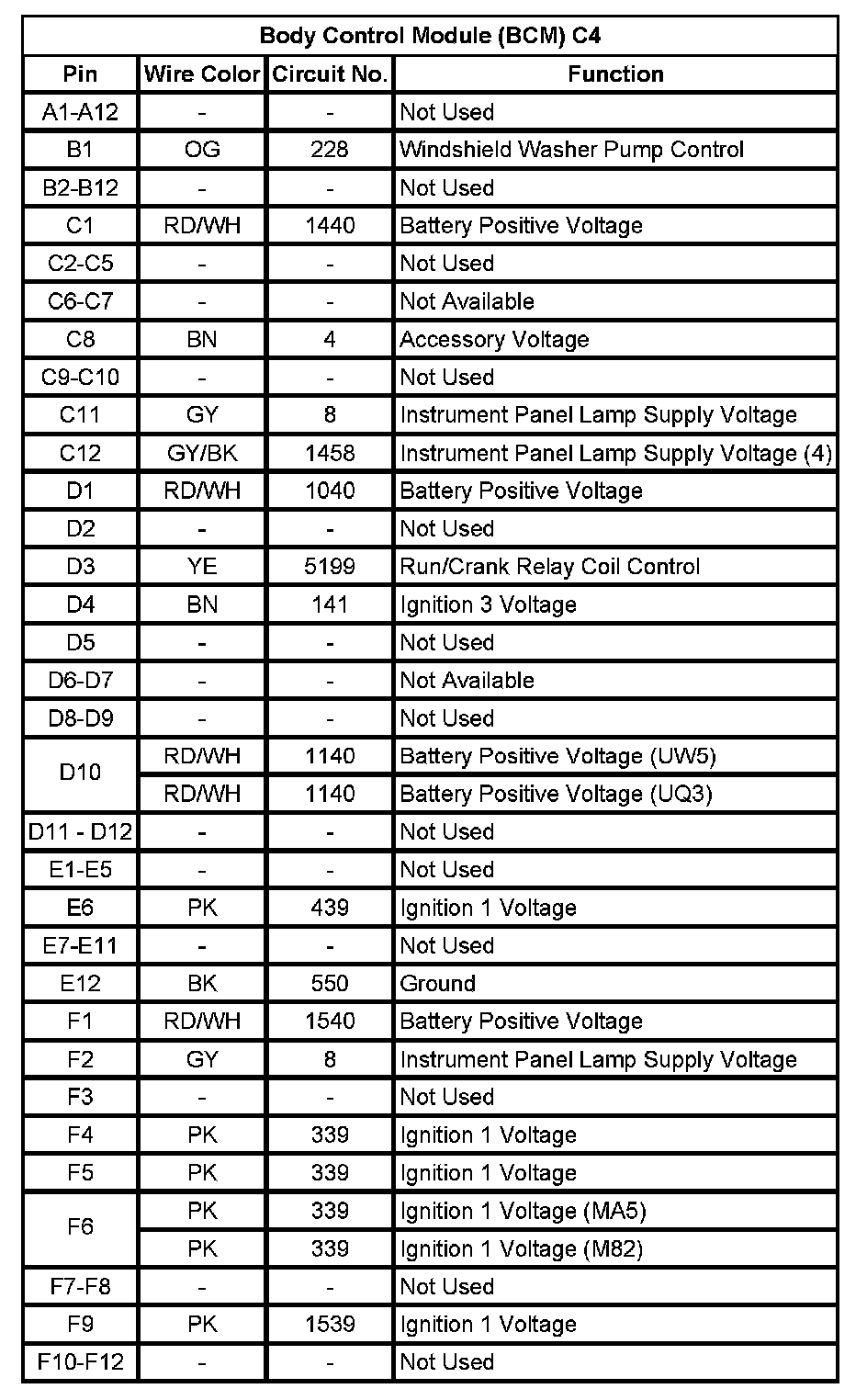

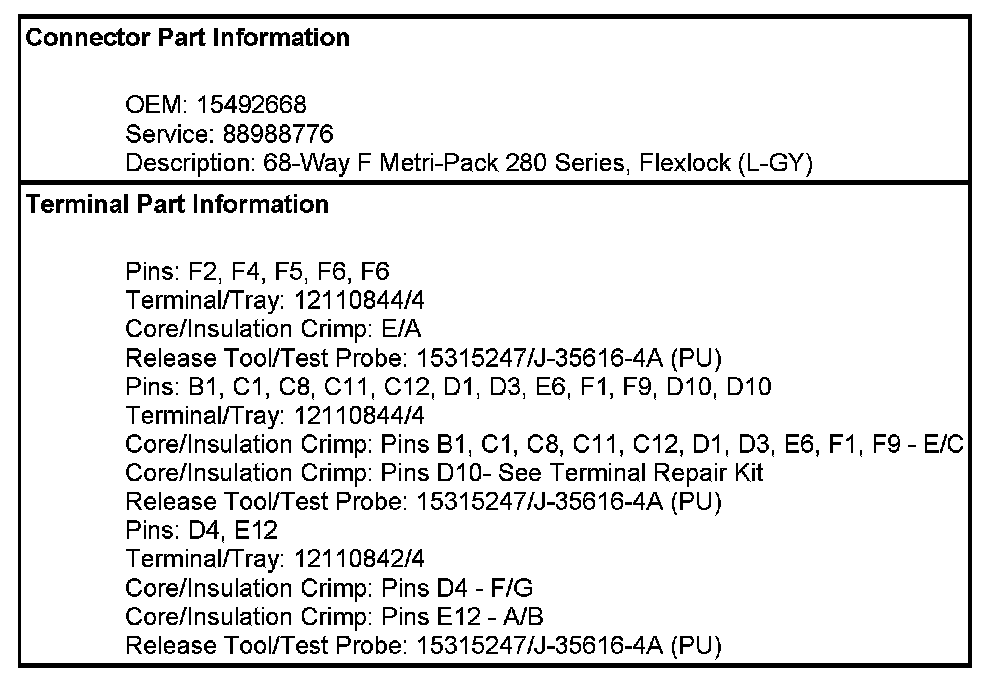

Body Control Module (BCM) C4
