Connector Views



Lighting Systems Connector End Views

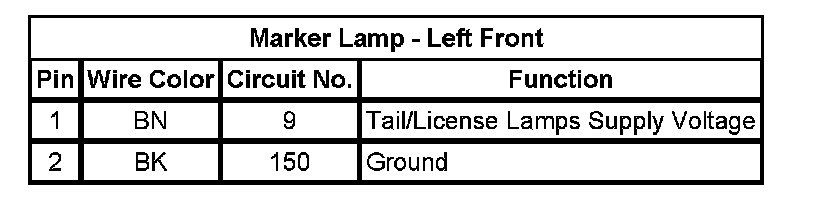

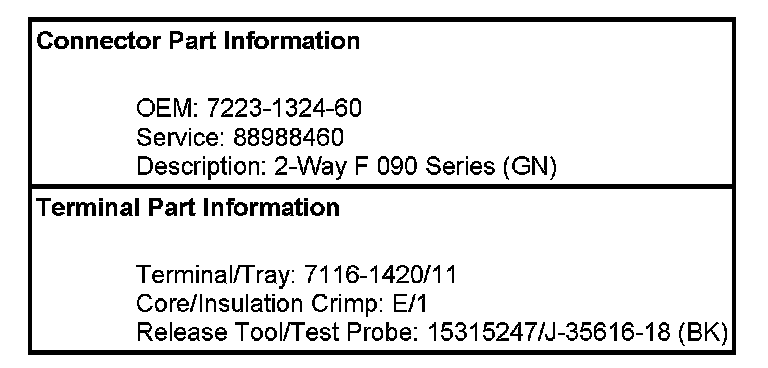

Marker Lamp - Left Front

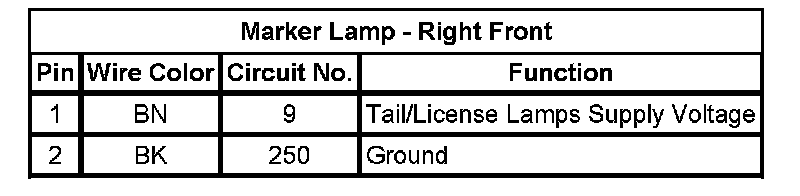

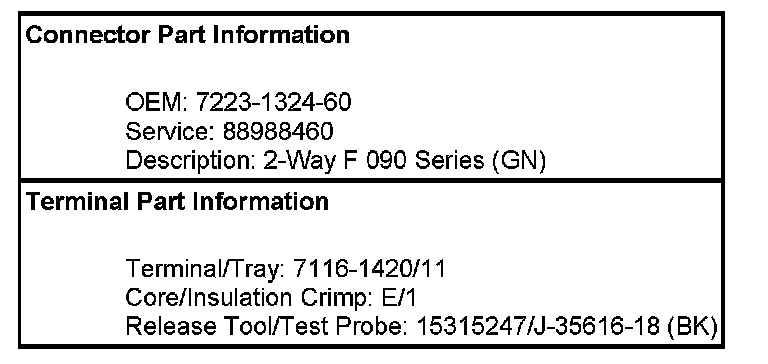

Marker Lamp - Right Front
