Antilock Brakes / Traction Control Systems

Antilock Brake System Schematics

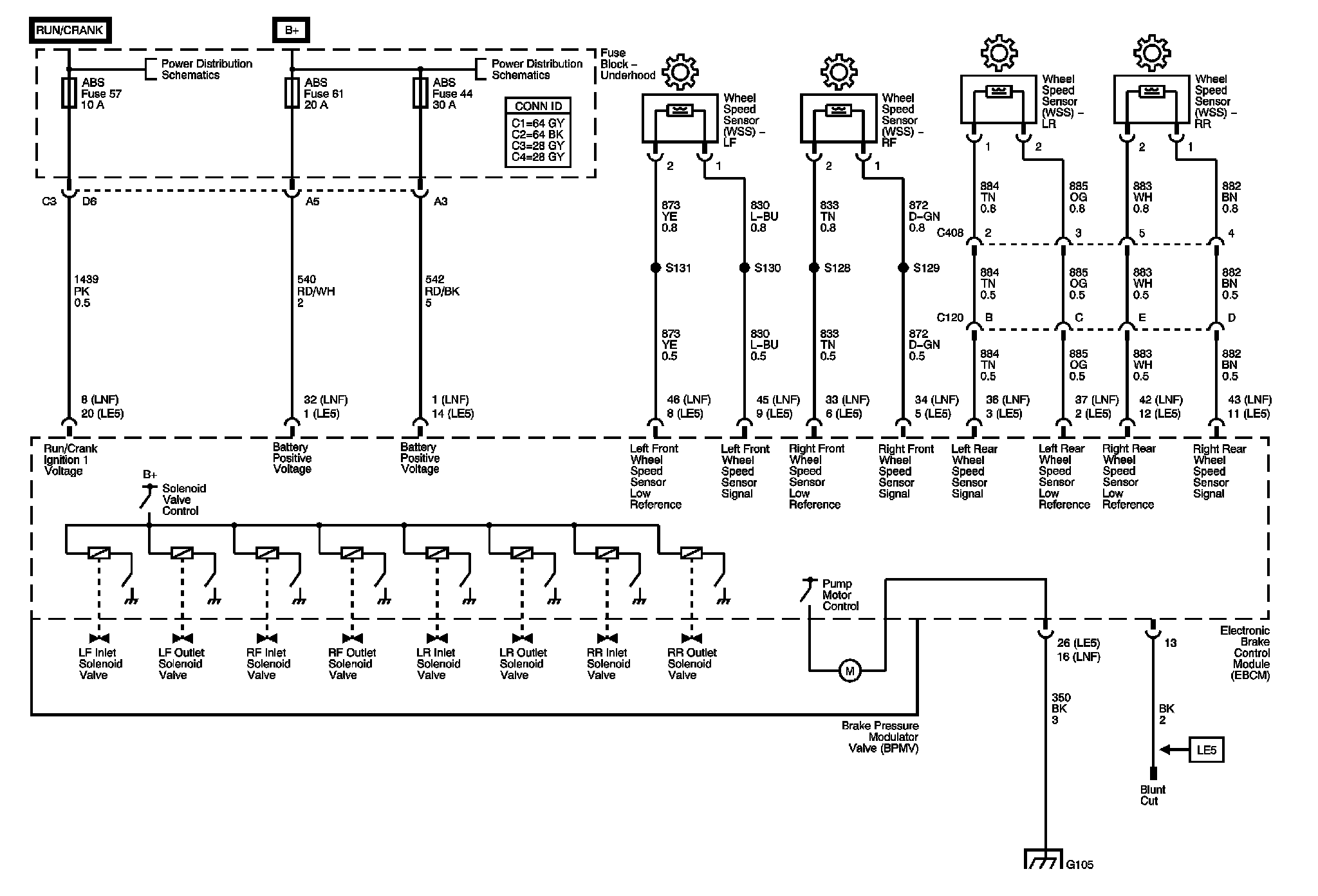

Antilock Brake System Schematics 1:

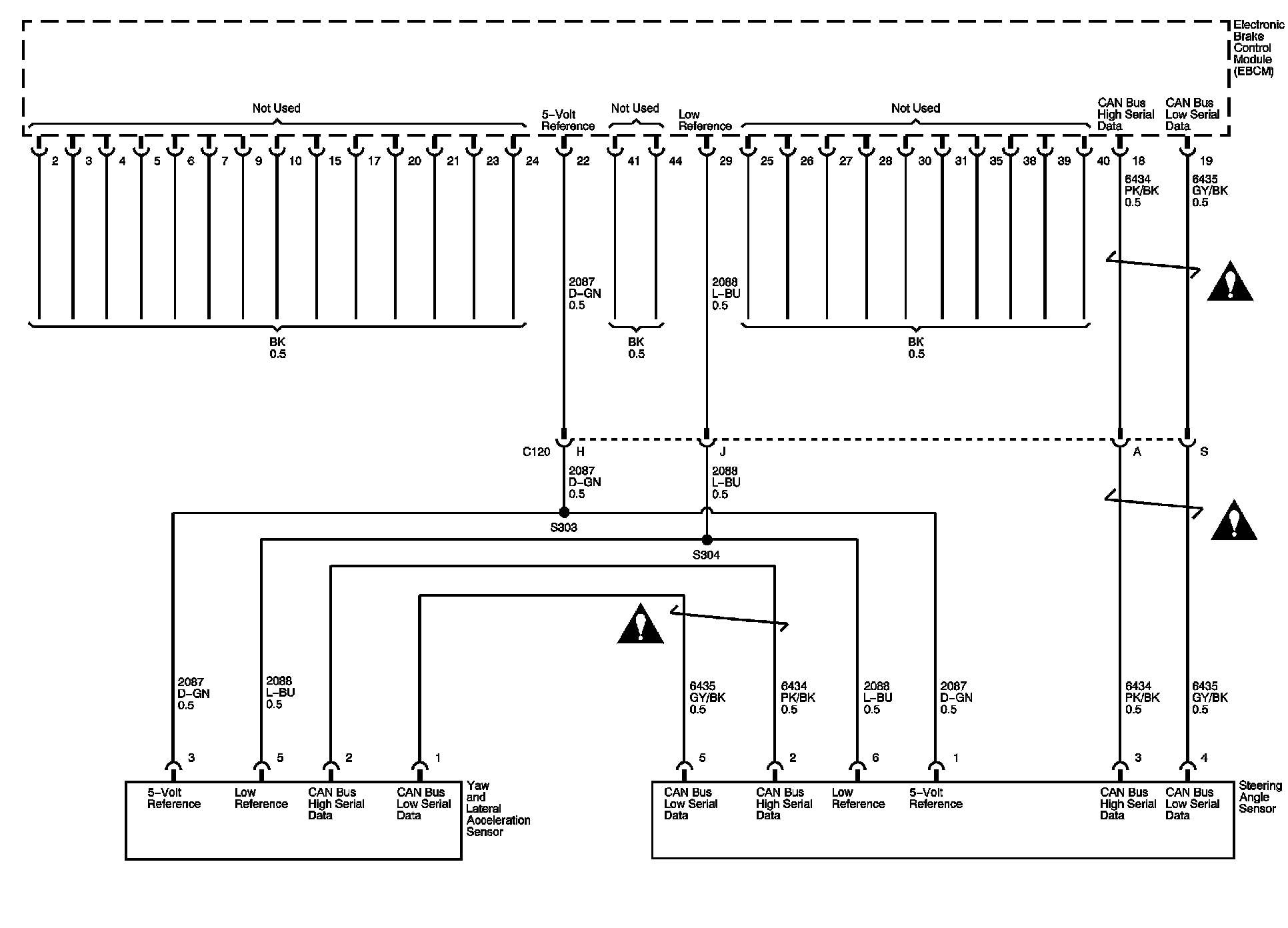

Antilock Brake System Schematics 2:

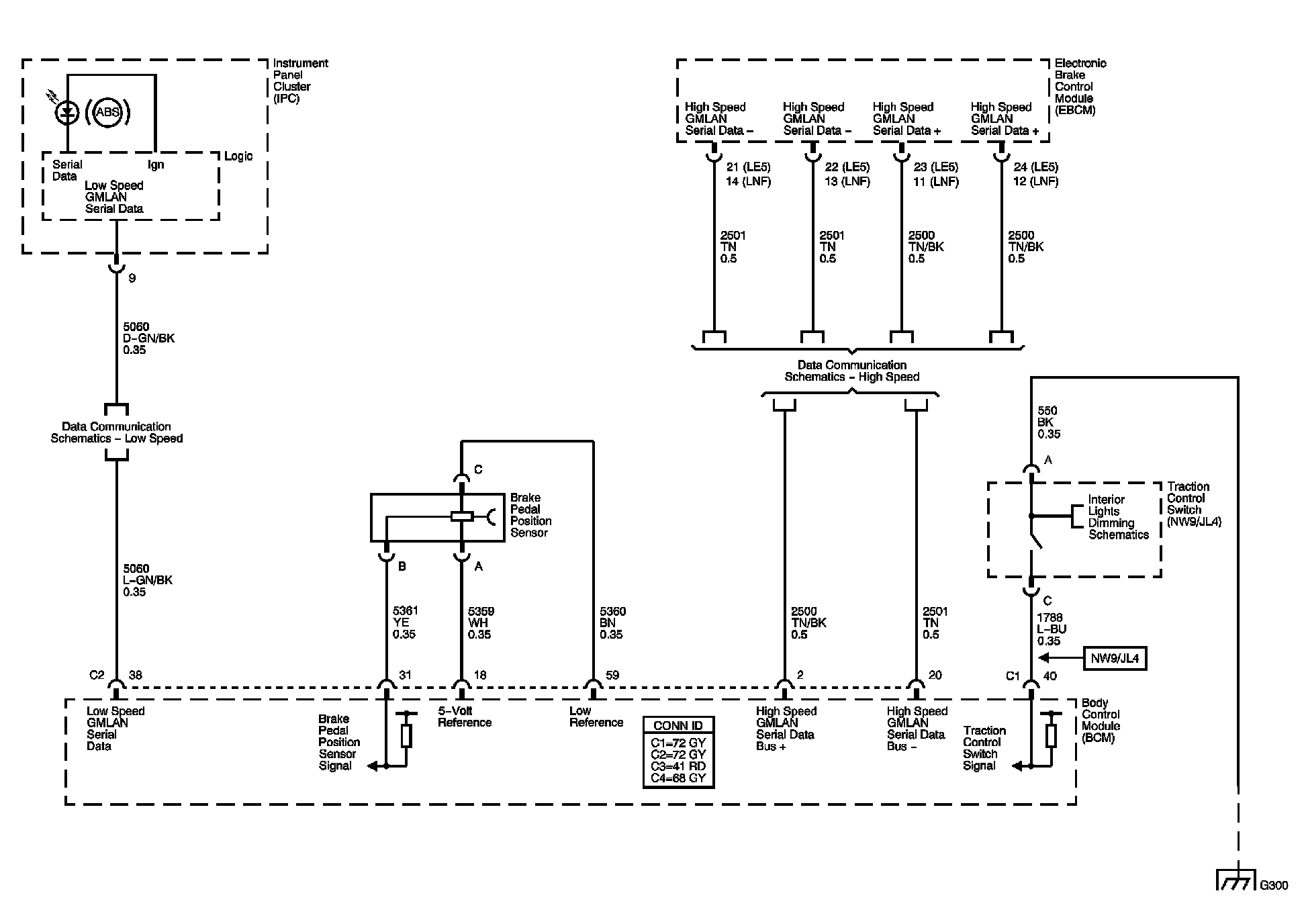

Antilock Brake System Schematics 3:

Locations: The locations for the connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
