Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> System Diagram

System Diagram



Engine Electrical Connector End Views

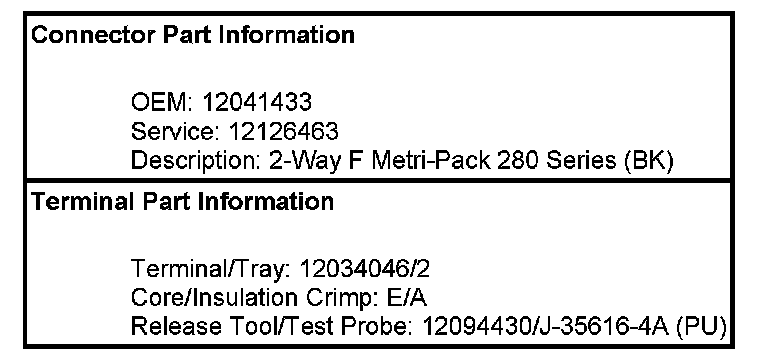

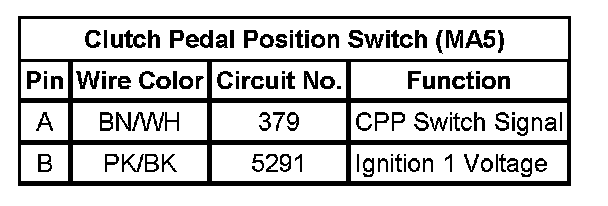

Clutch Pedal Position Switch (MA5)

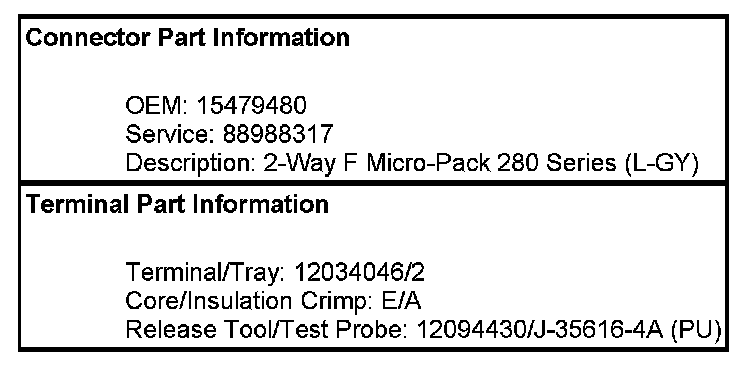

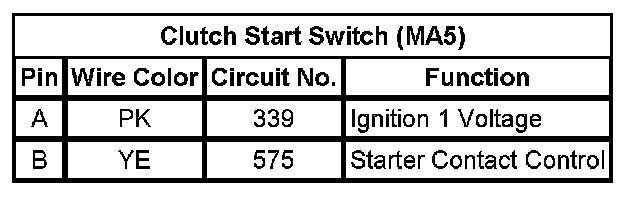

Clutch Start Switch (MA5)

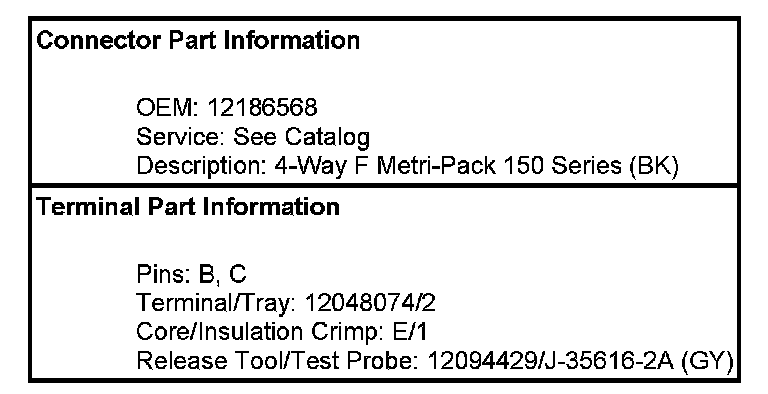

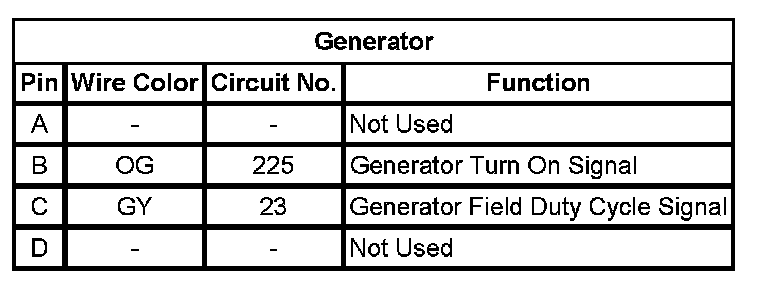

Generator
