Home >> Pontiac >> 2007 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram

System Diagram



Lighting Systems Connector End Views

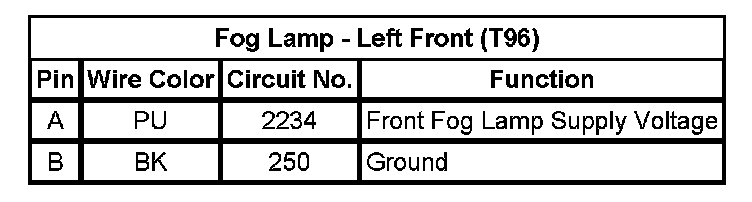

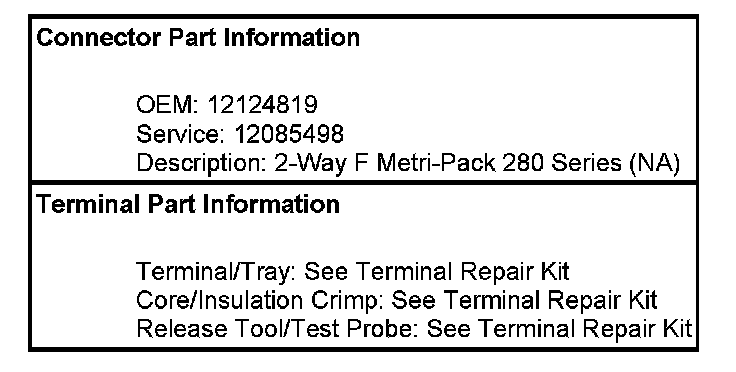

Fog Lamp - Left Front (T96)

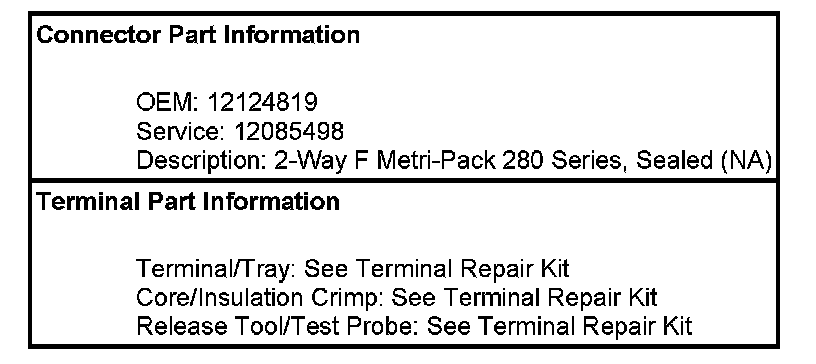

Fog Lamp - Right Front (T96)
