Wiper Arm Replacement - Rear

WIPER ARM REPLACEMENT - REAR

REMOVAL PROCEDURE

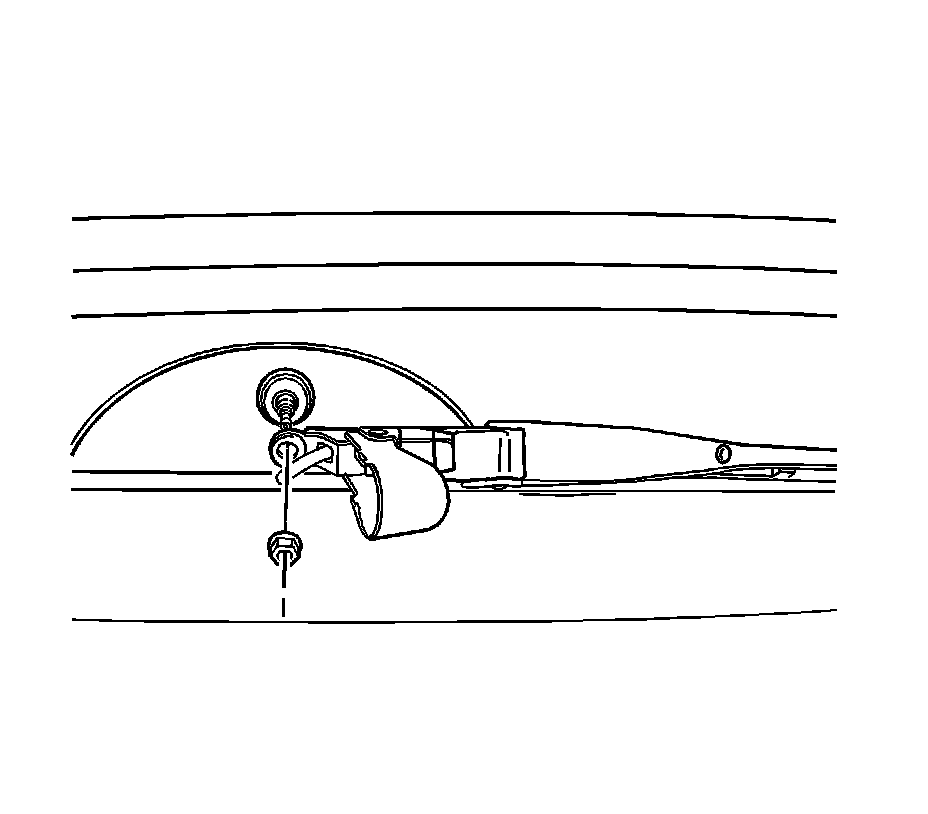

1. Open the wiper arm access cap.
2. Remove the nut and the rear wiper arm.

INSTALLATION PROCEDURE




1. Install the rear wiper arm with the nut.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the wiper arm nut to 11 N.m (97 lb in).

2. Close the wiper arm access cap.
