Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wiper Inoperative - Rear (Hatchback)

Wiper Inoperative - Rear (Hatchback)

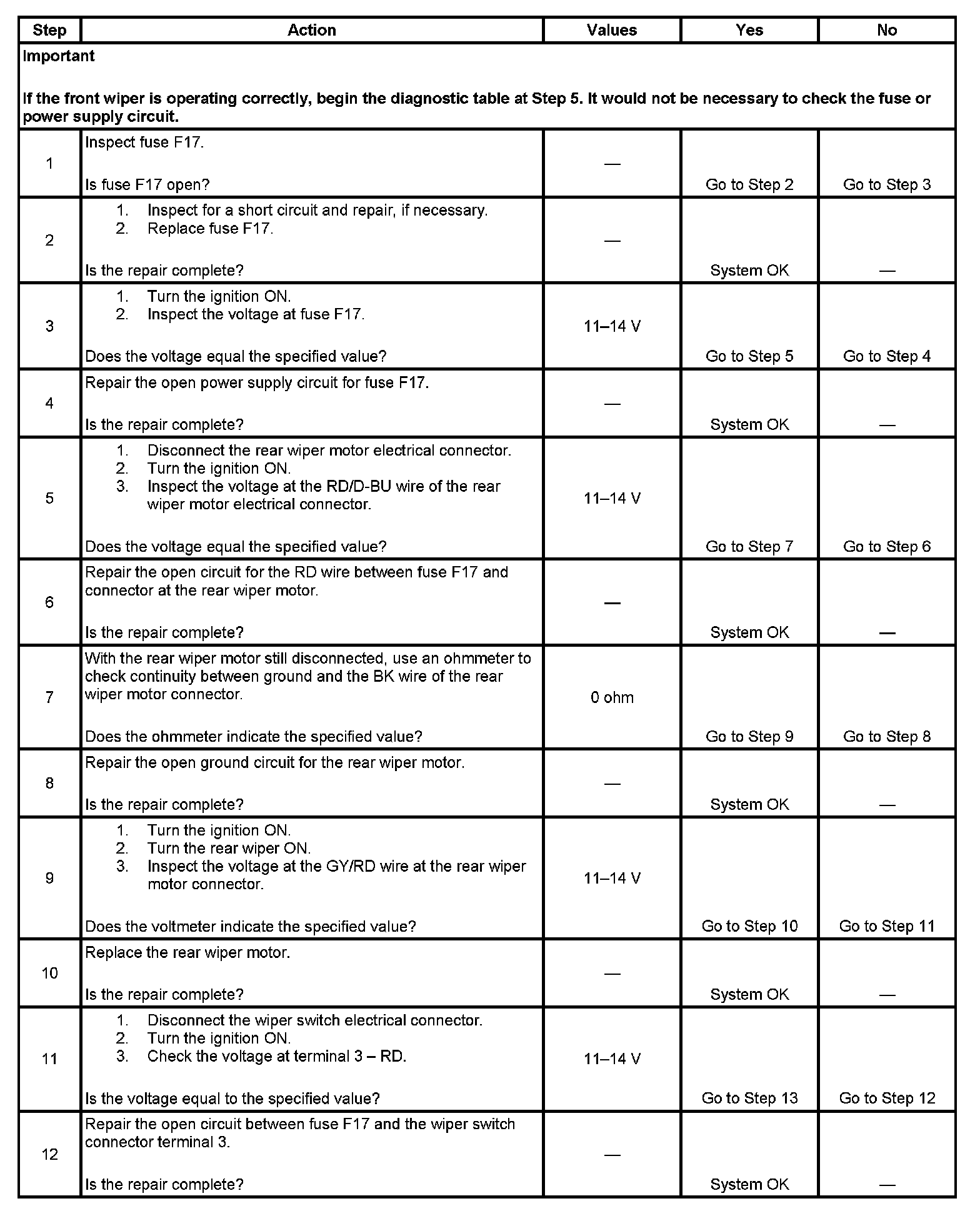

Step 1 - Step 12:

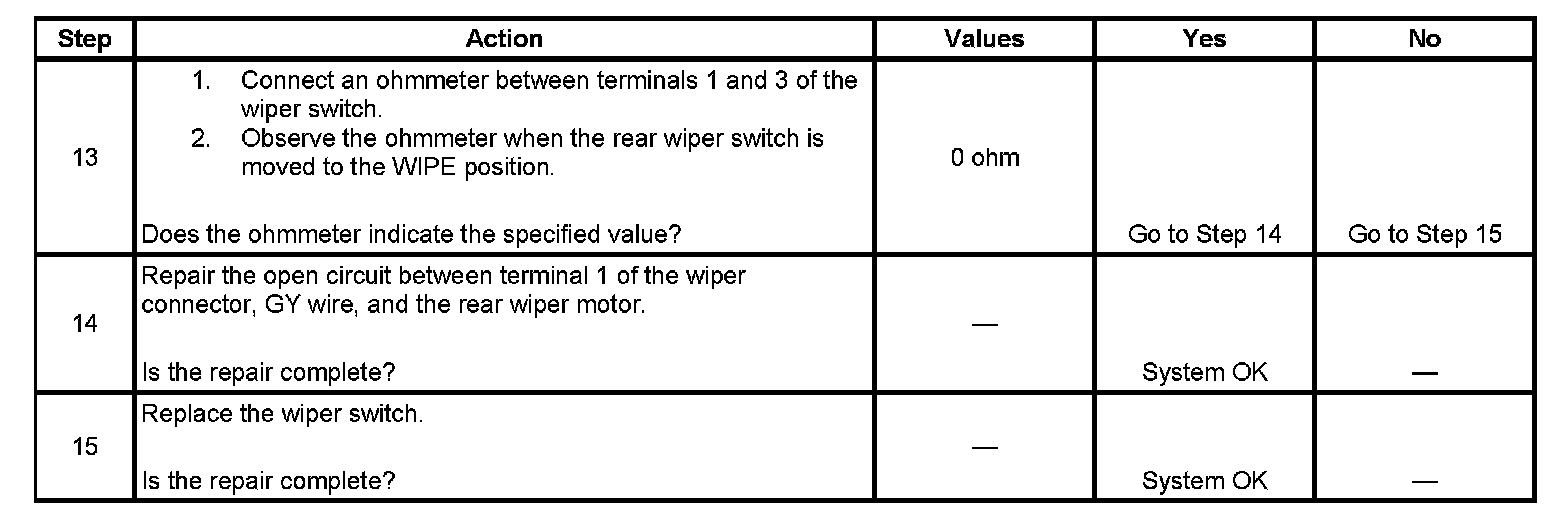

Step 13 - Step 15:
