Synchronizers Cleaning and Inspection

Synchronizers Cleaning and Inspection

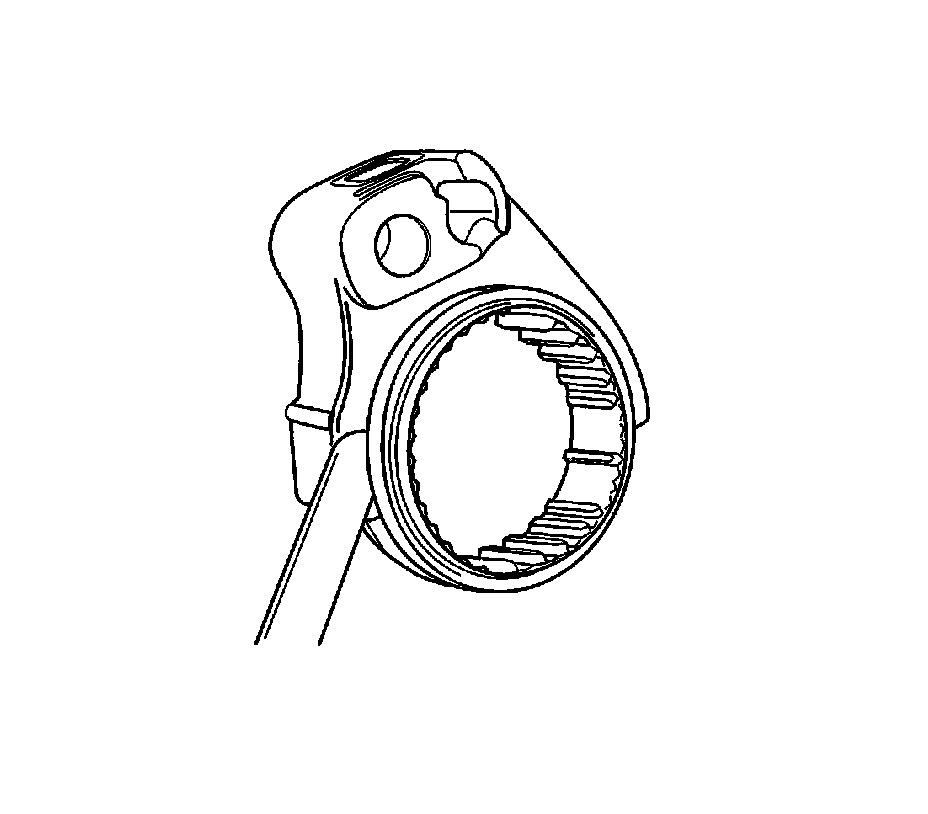

Measure the clearance between synchronizer sleeve and shift fork and if the clearance exceeds the limit, replace the shift fork.

Specifications:
^ The standard clearance between the sleeve and shift fork is 0.2 - 0.6 mm (0.008 - 0.024 inch).
^ The clearance limit between the sleeve and shift fork is 1.0 mm (0.039 inch).
