Console Shift Lever Bezel Replacement

Console Shift Lever Bezel Replacement

Removal Procedure





1. Caution:
Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.
2. Remove the floor console.

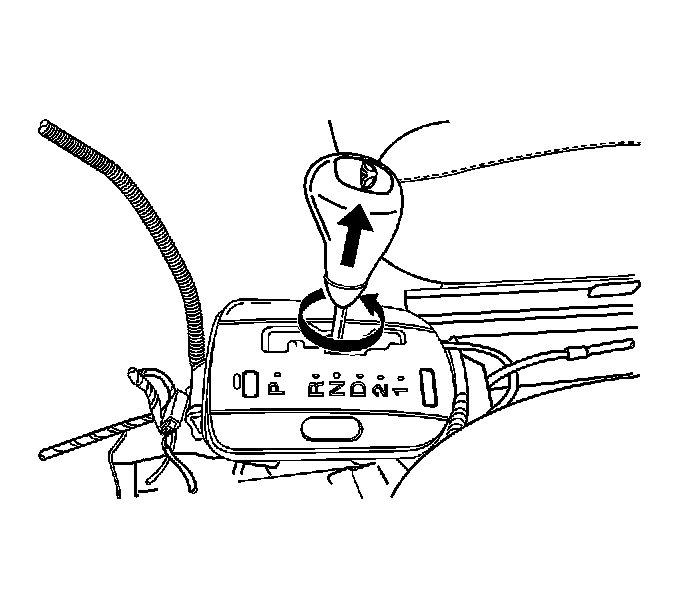

3. Remove the shift select lever knob.

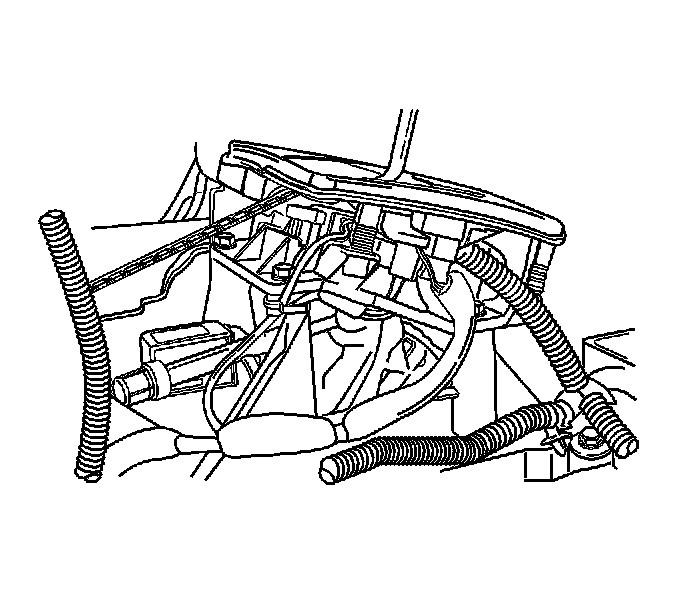

4. Disconnect the connectors.
5. Remove the shift select cover from the shift select housing.

Installation Procedure





1. Connect the connectors to the shift select cover.
2. Install the shift select cover to the hole.





3. Install the shift select lever knob.
4. Install the floor console.
5. Connect the negative battery cable.
