Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

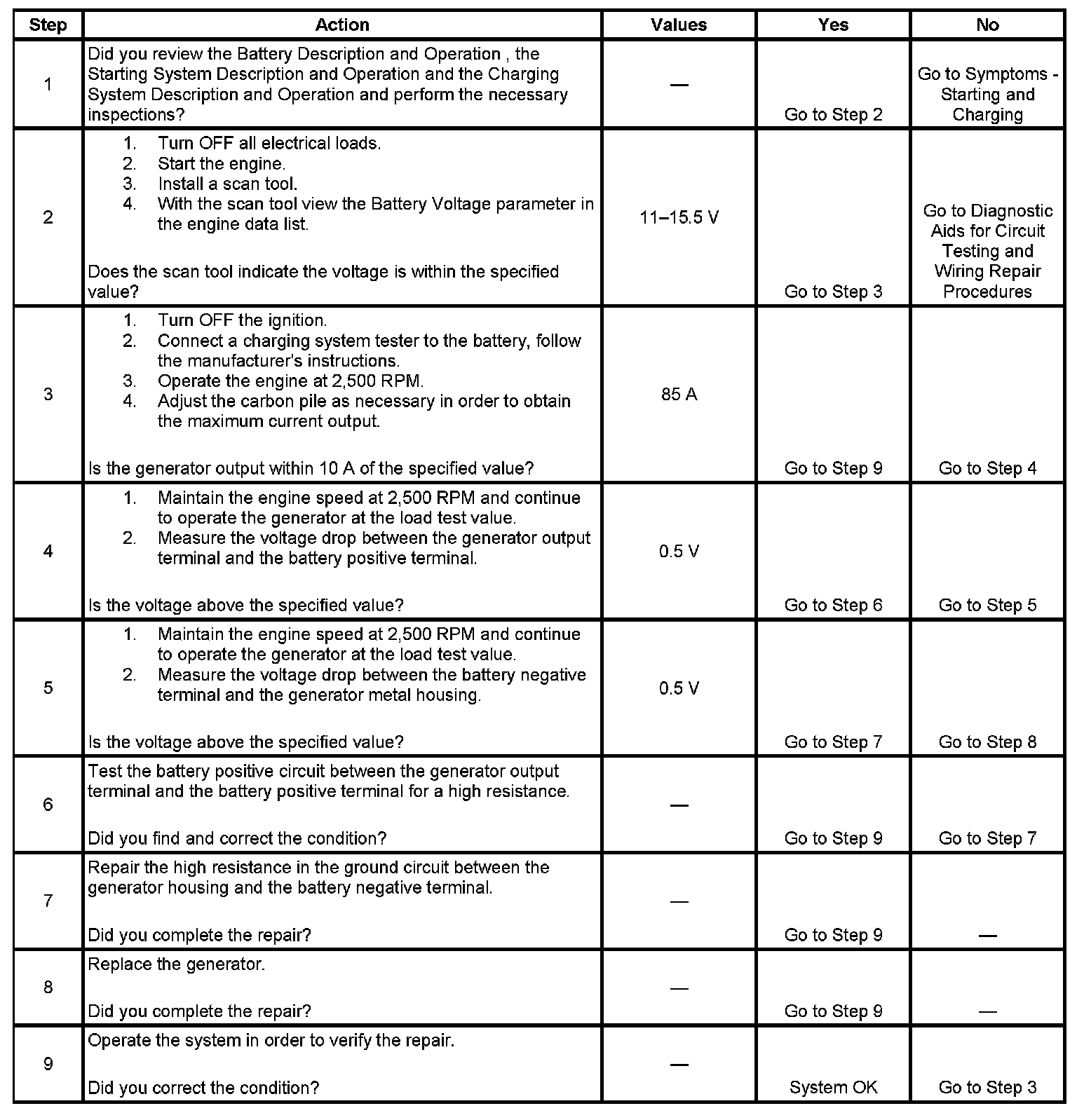

Charging System Test

Step 1 - Step 9:
