C401

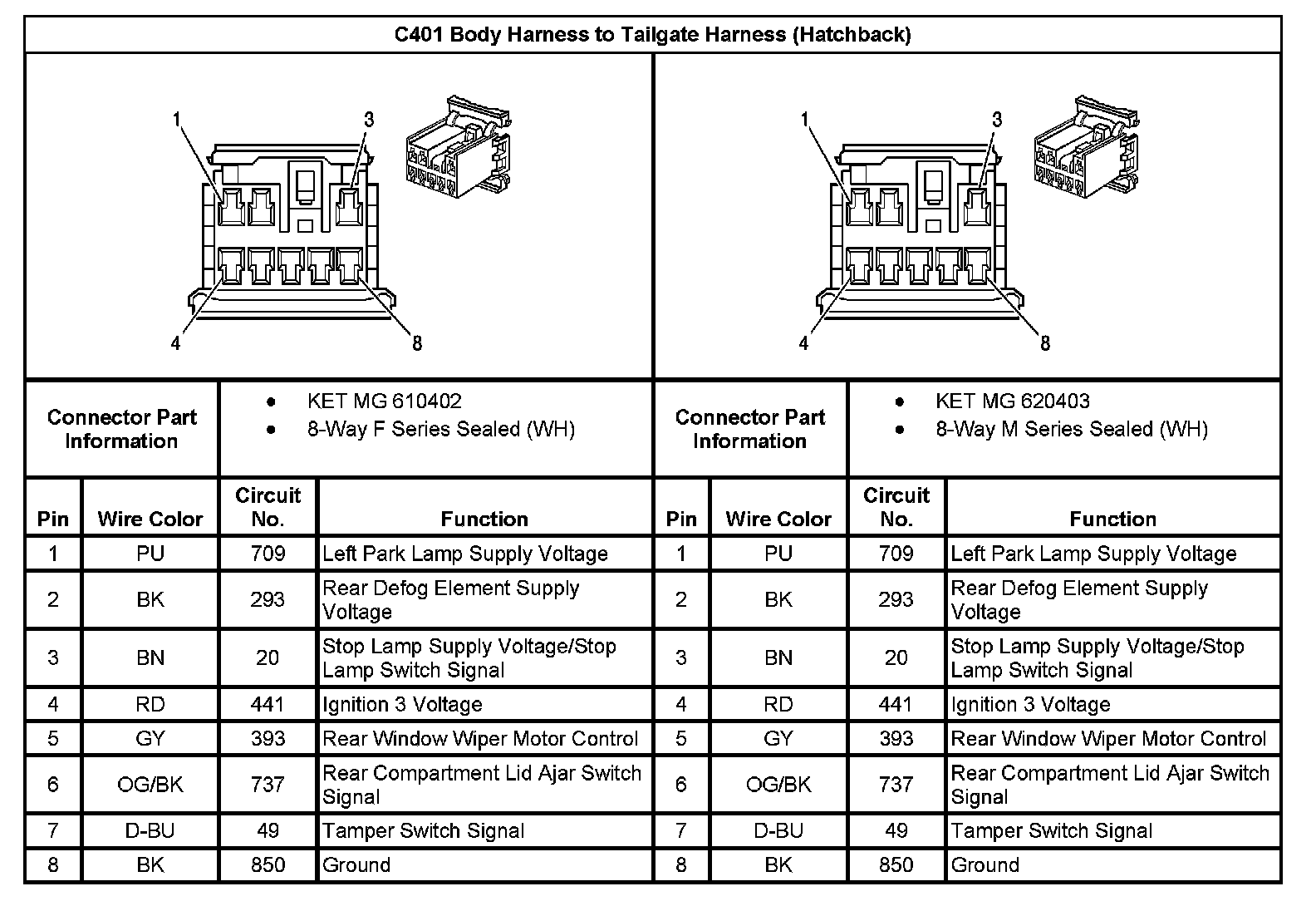

C401 Body Harness To Tailgate Harness (Hatchback):

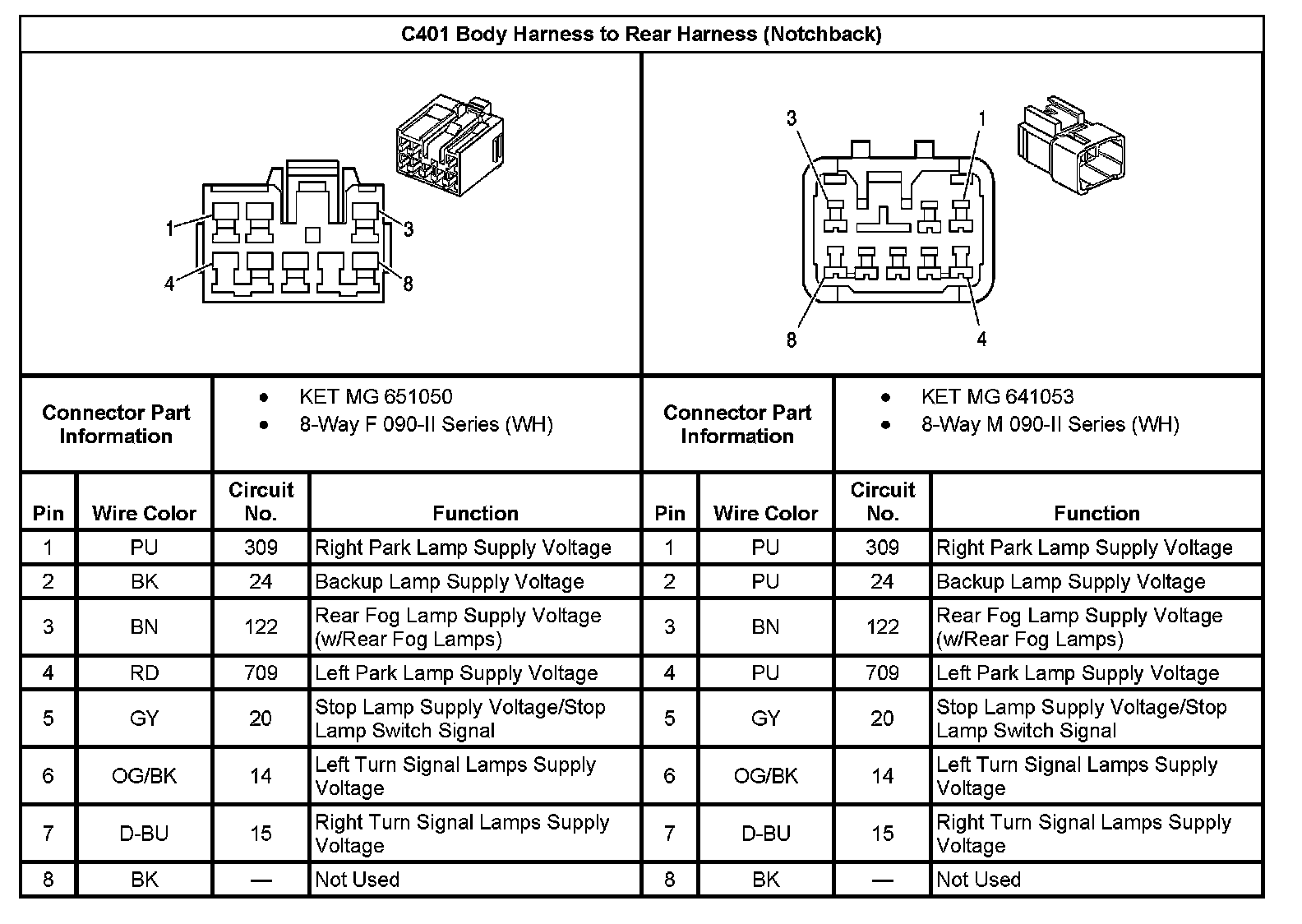

C401 Body Harness To Rear Harness (Notchback):
