C351

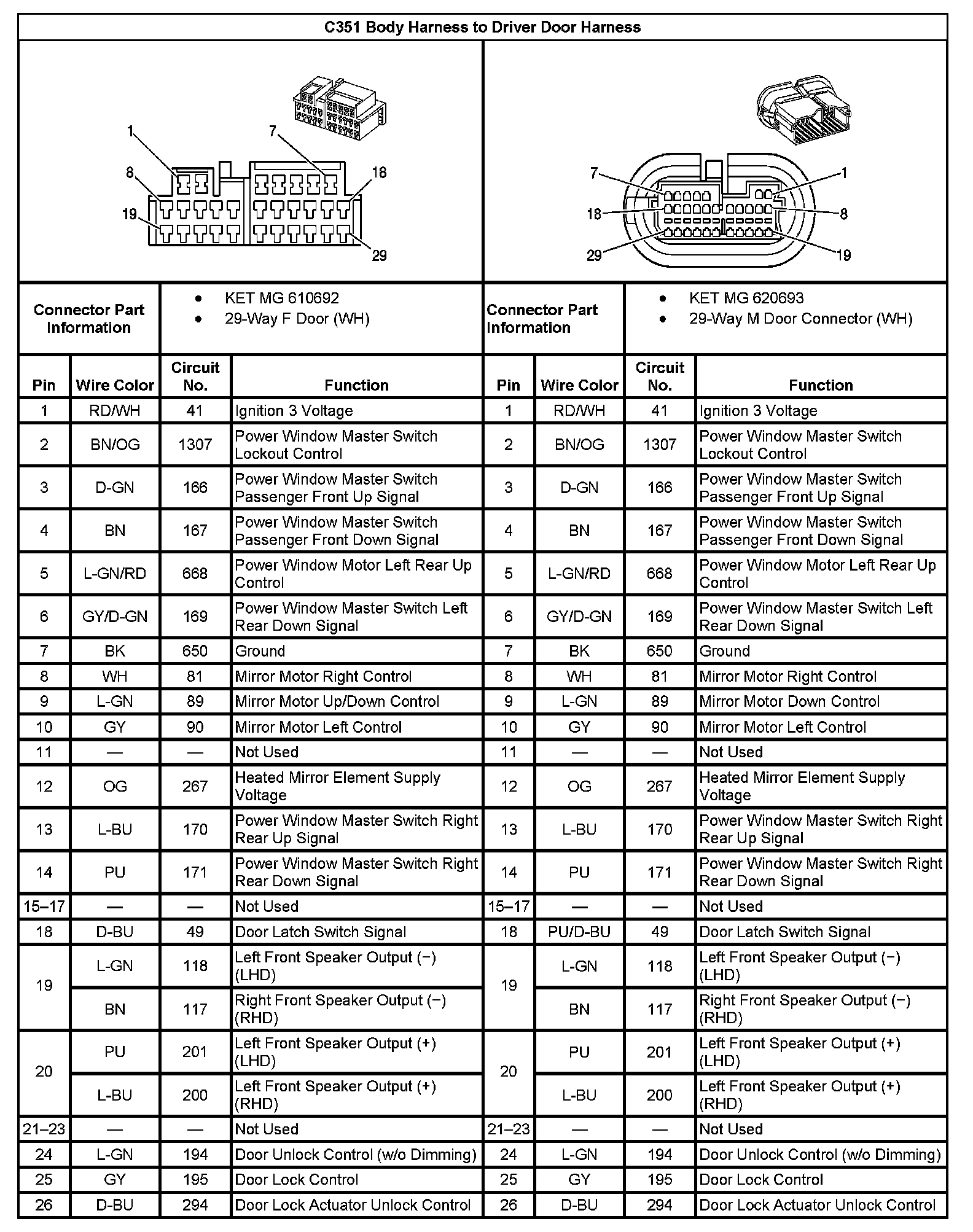

C351 Body Harness To Driver Door Harness (Part 1):

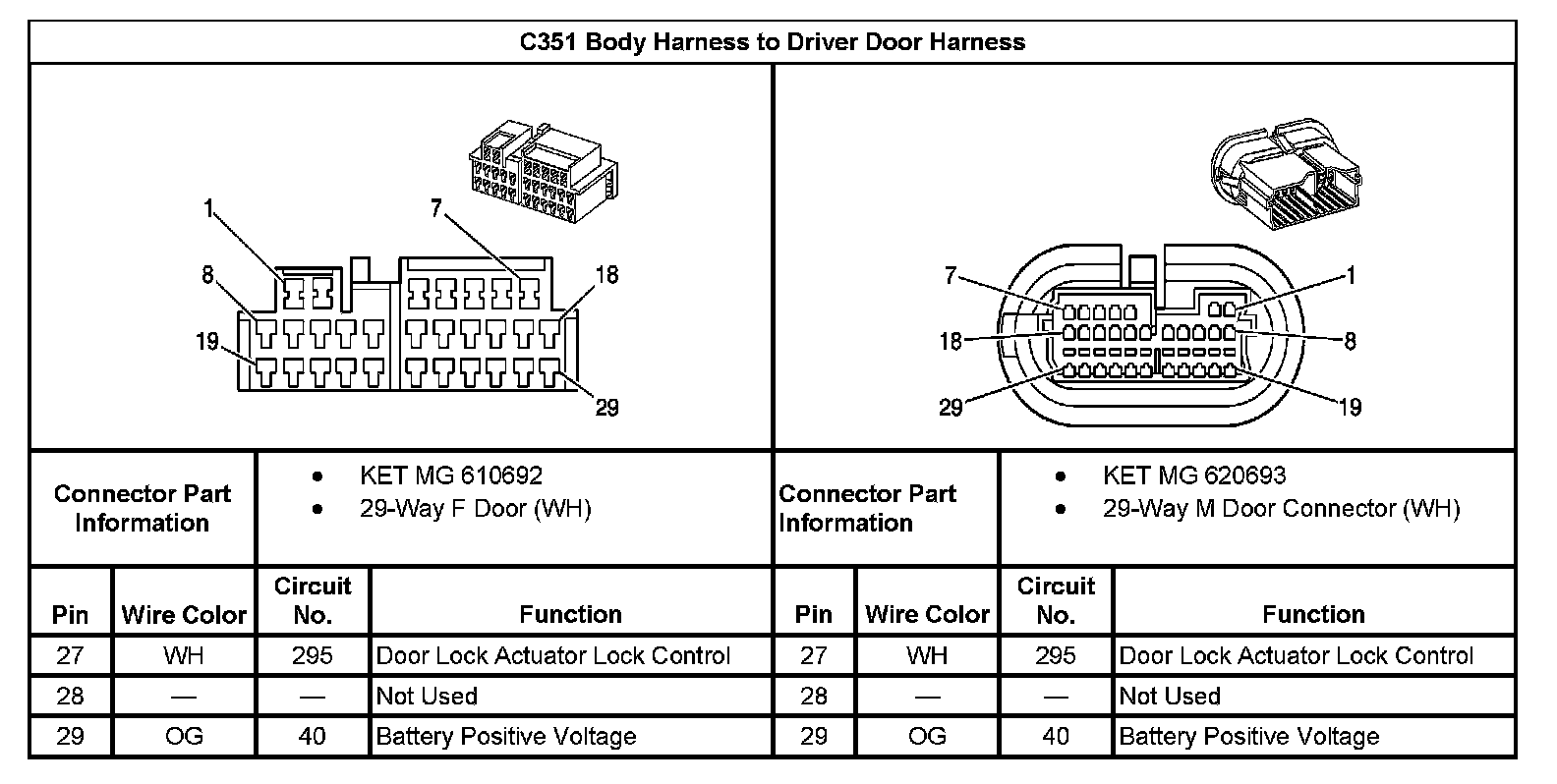

C351 Body Harness To Driver Door Harness (Part 2):
