Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Transaxle Case Surface and Bearing Outer Races Clearance Table

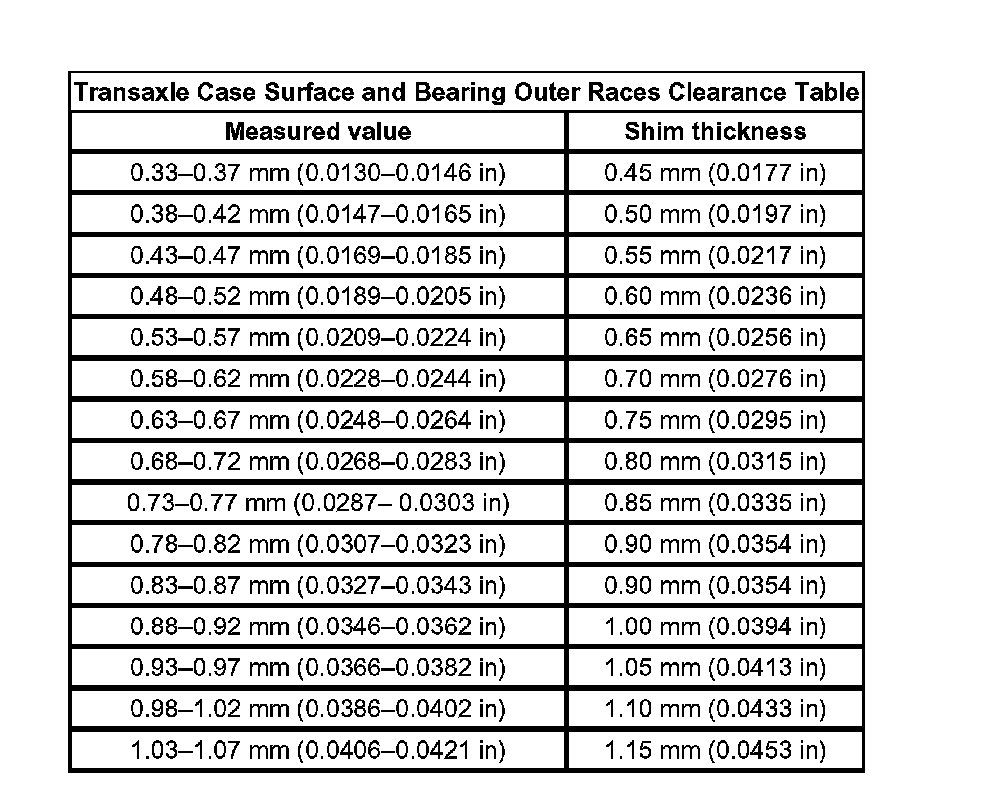

Transaxle Case Surface and Bearing Outer Races Clearance Table
