Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine General Specifications & Service Limits

Engine General Specifications & Service Limits

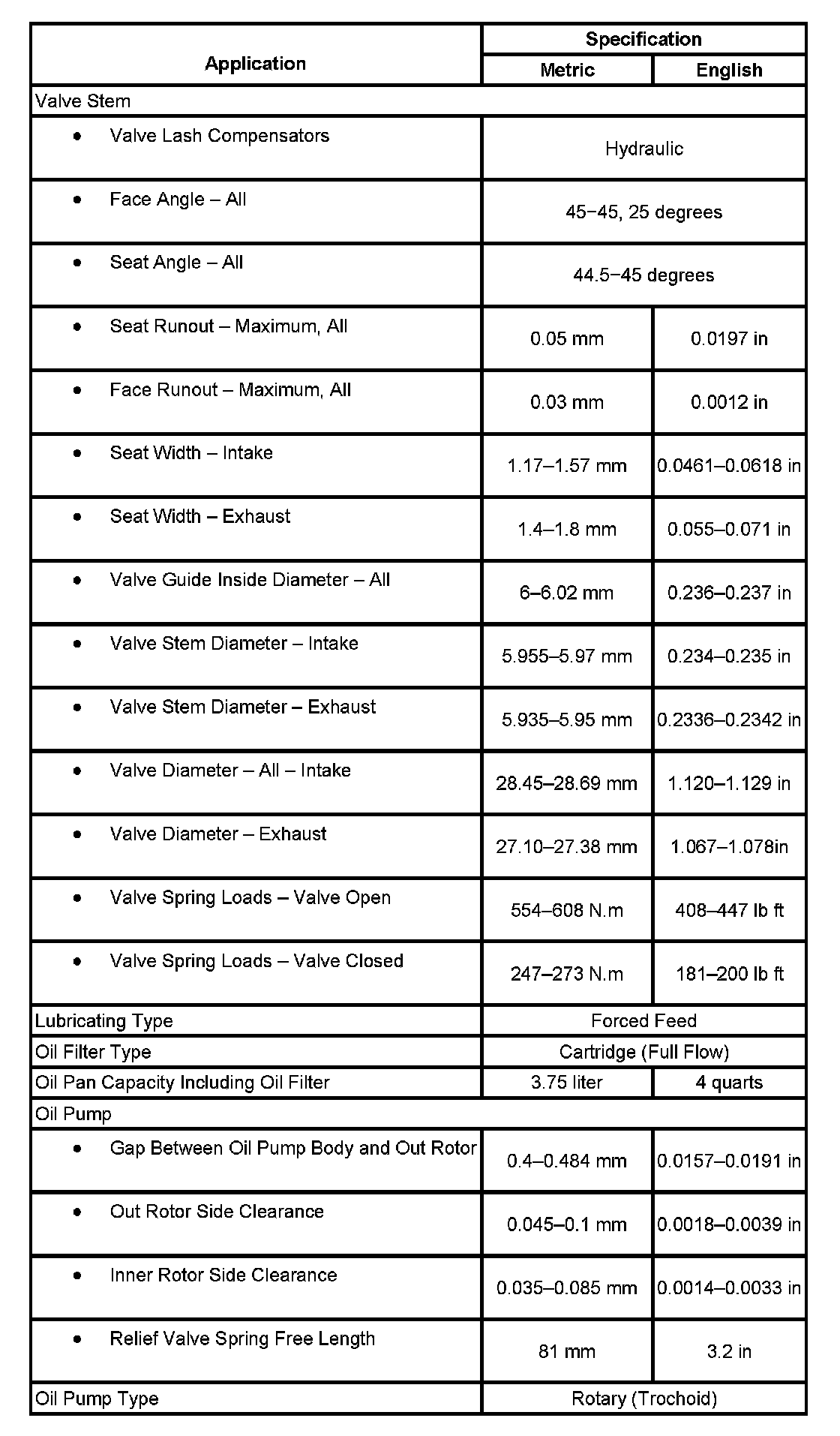

Engine Mechanical Specifications:

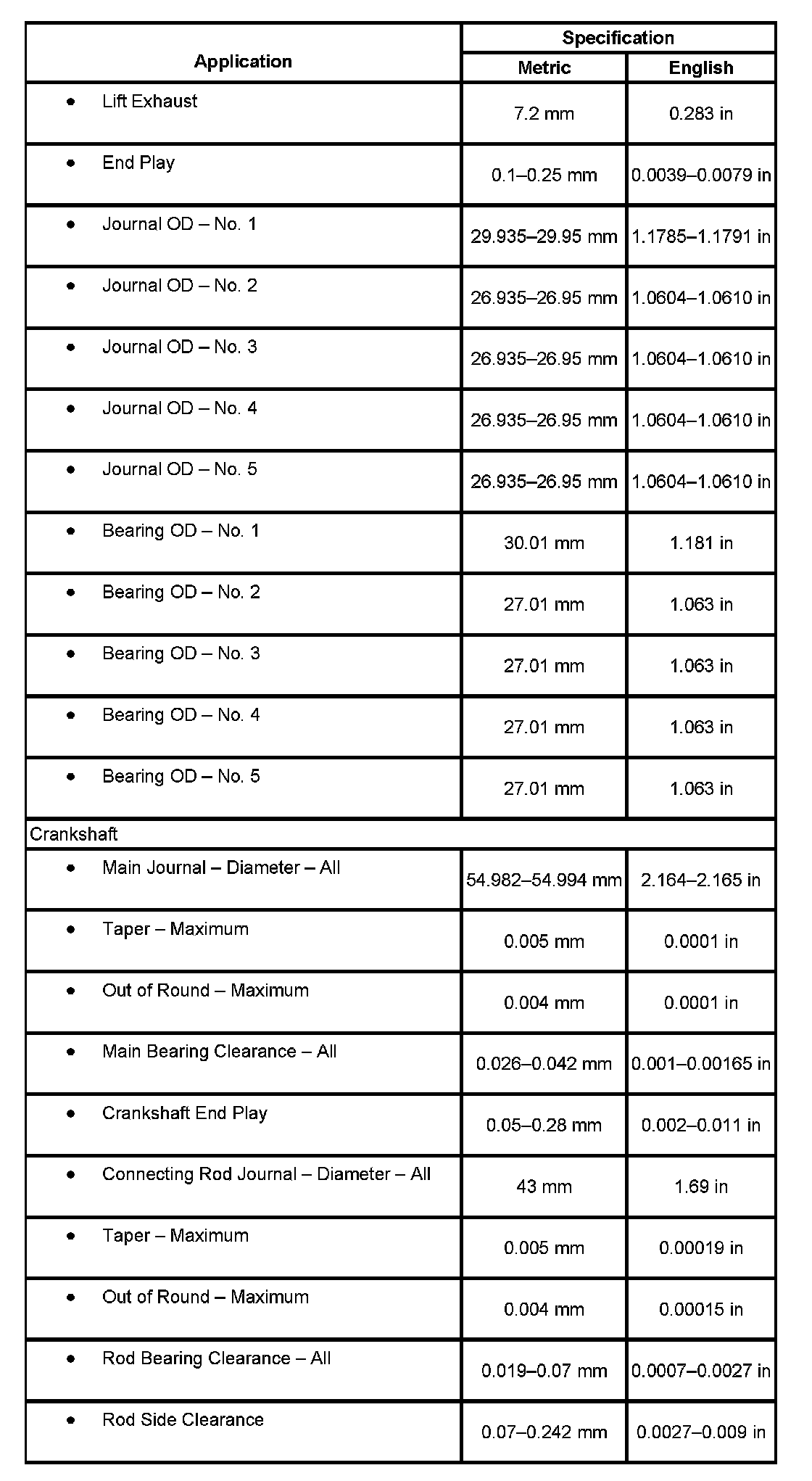

Engine Mechanical Specifications:

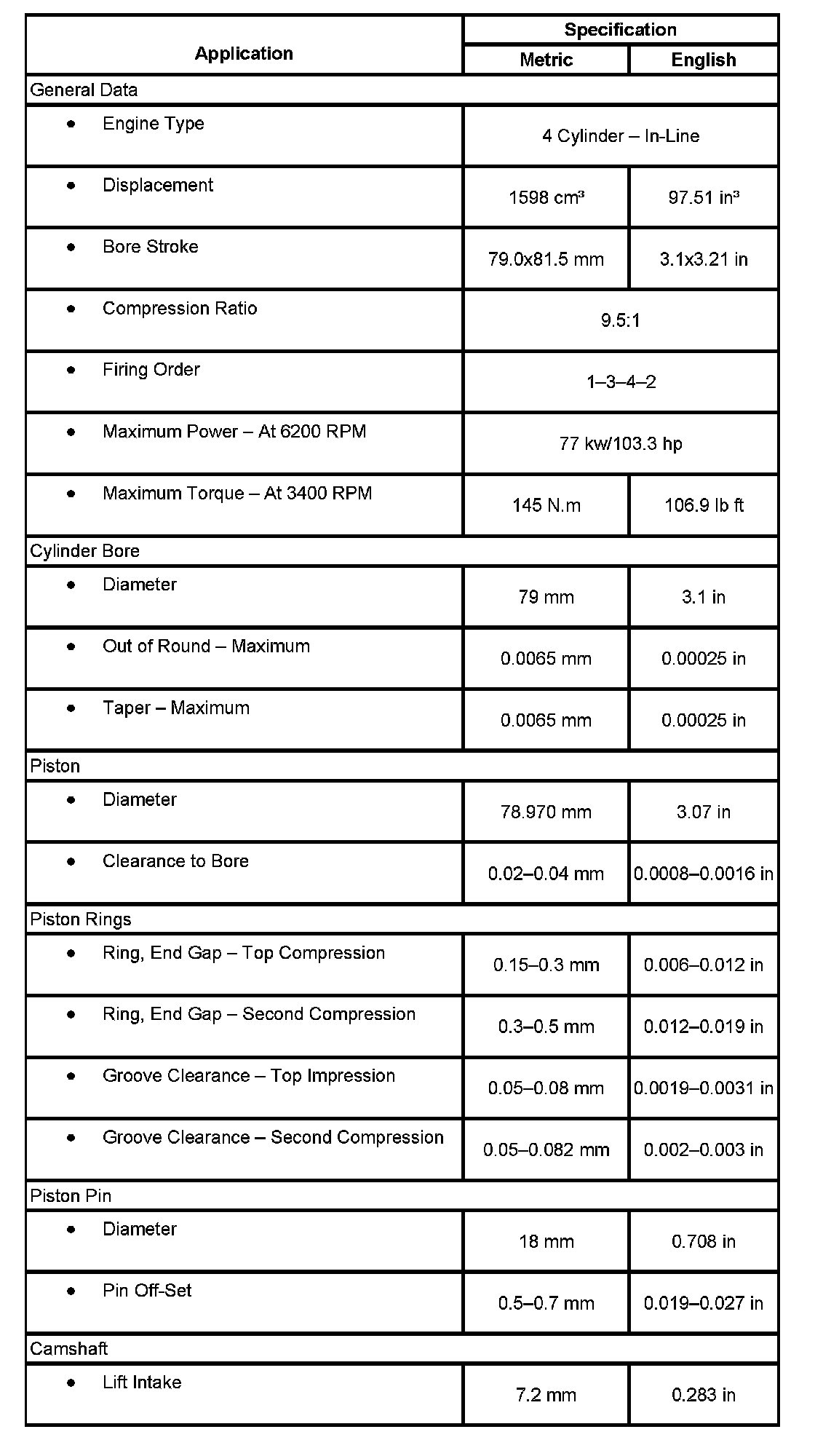

Engine Mechanical Specifications:
