Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Locations

Turn Signal Switch: Locations

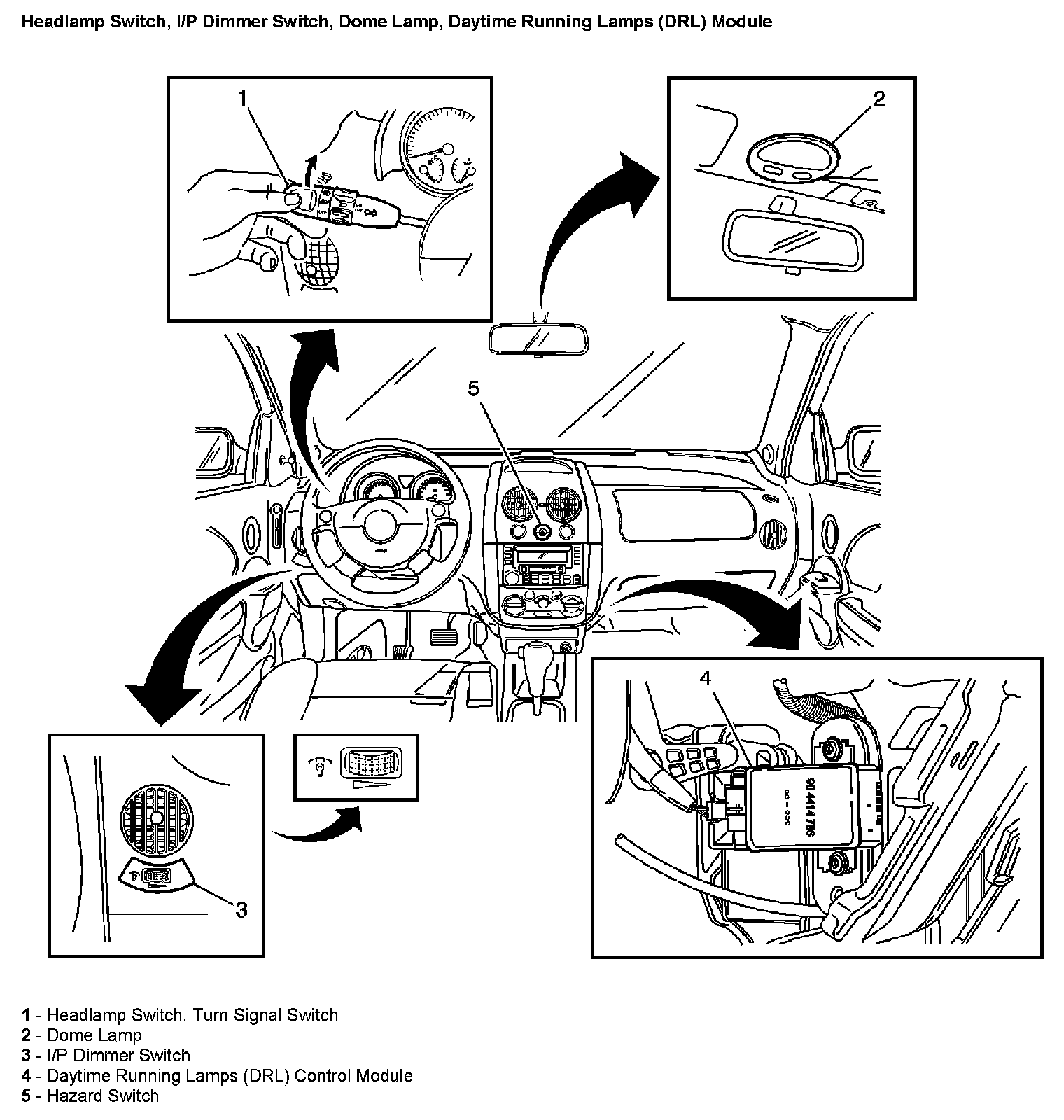

Headlamp Switch, I/P Dimmer Switch, Dome Lamp, Daytime Running Lamps (DRL) Module:
