Wheel Speed Sensor Replacement - Front

Wheel Speed Sensor Replacement - Front
Removal Procedure





1. Caution: Refer to Battery Disconnect Caution.

Disconnect the negative battery cable.

2. Notice: Refer to Vehicle Lifting and Jacking Notice.

Raise and suitably support the vehicle.

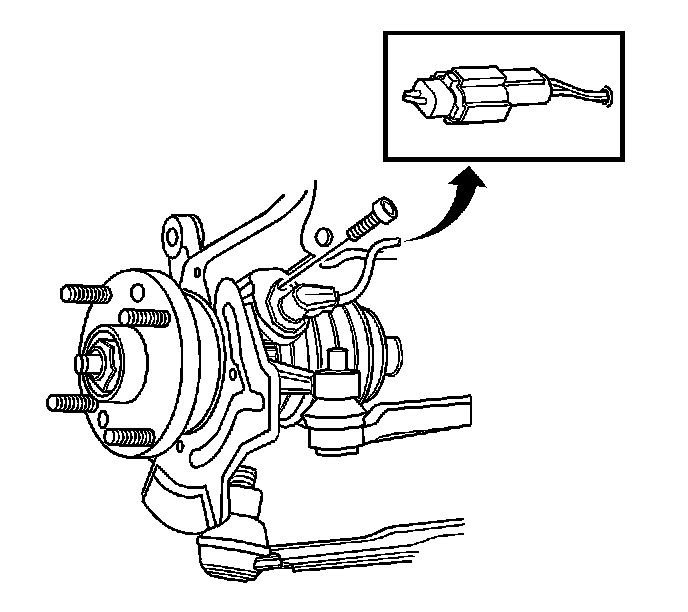

3. Disconnect the electrical connector from the front wheel speed sensor.
4. Remove the bolt and the front wheel speed sensor from the steering knuckle.

Installation Procedure





1. Notice: Refer to Fastener Notice.

Install the bolt and front wheel speed sensor to the steering knuckle.
Tighten the bolt to 9 Nm (80 inch lbs.).
2. Connect the electrical connector to the front wheel speed sensor.
3. Lower the vehicle.
4. Connect the negative battery cable.
