Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.

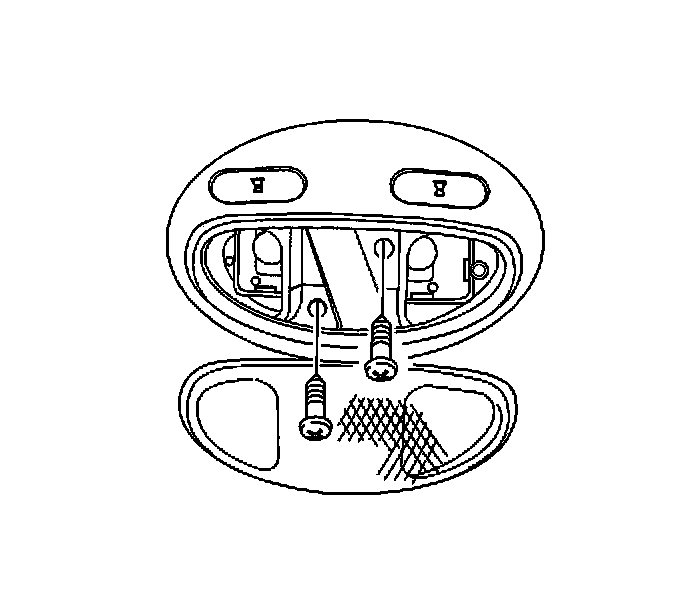

2. Pry off the interior courtesy lamp lens.
3. Remove the screws and the lamp/power sunroof control switch.
4. Disconnect the electrical connector.



Installation Procedure





1. Connect the electrical connector.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the lamp/power sunroof control switch with the screws.

Tighten the interior courtesy lamp/power sunroof control switch screws to 4 N.m (35 lb in).

3. Install the interior courtesy lamp lens.
4. Connect the negative battery cable.
