Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

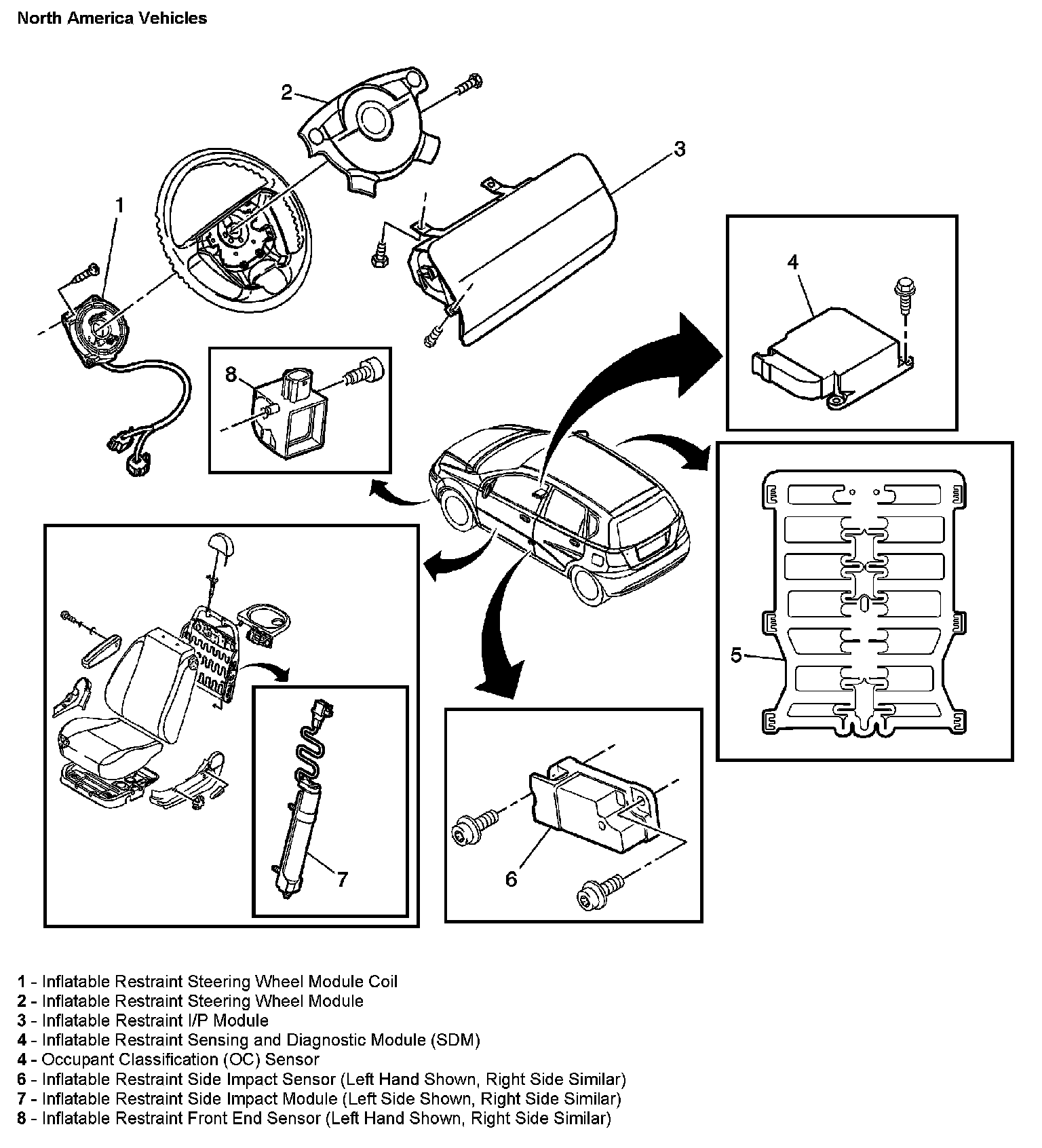

North America Vehicles:



Except North America Vehicles:
