EGR Valve: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VALVE REPLACEMENT

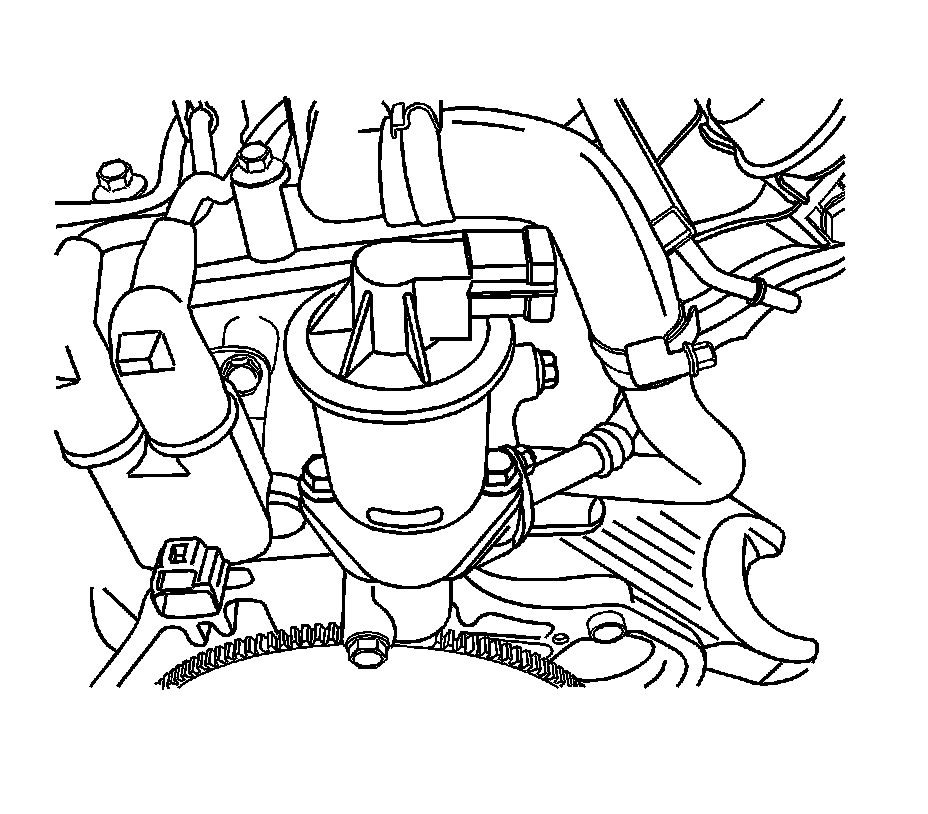

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Disconnect the electrical exhaust gas recirculation (EGR) valve electrical connector.
3. Remove the EGR valve retaining bolts.
4. Remove the EGR valve.

INSTALLATION PROCEDURE




1. Install the EGR valve with the bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the electrical EGR valve retaining bolts to 30 N.m (22 lb ft).

2. Connect the EGR valve electrical connector.
3. Connect the negative battery cable.
