Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Turn Signal Repeater Lamp

Turn Signal Repeater Lamp

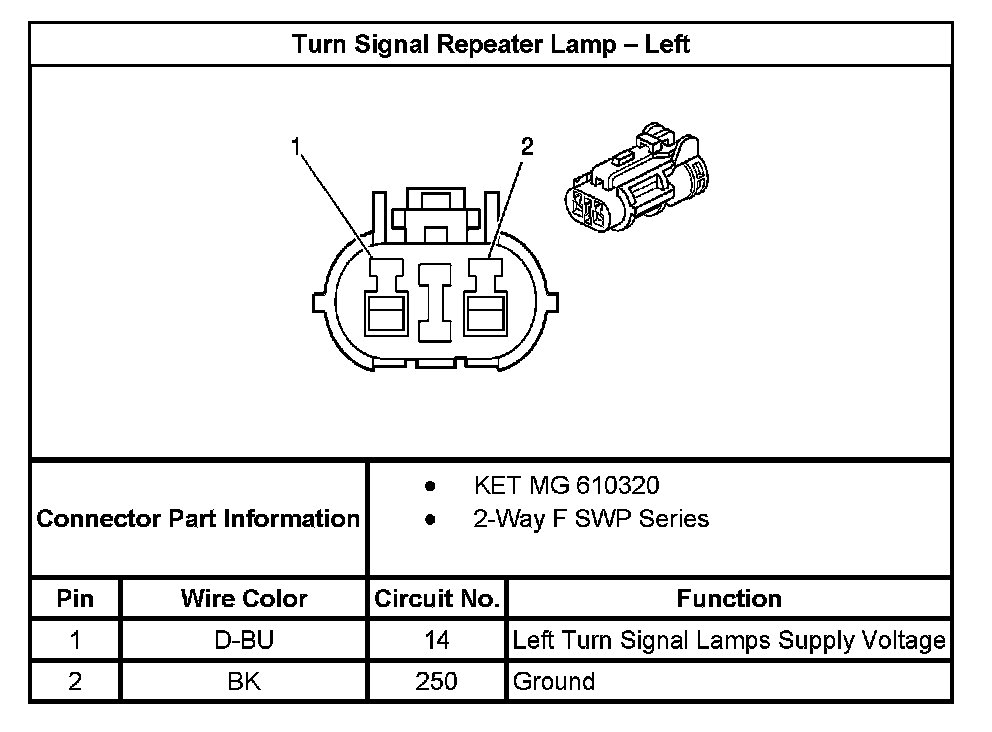

Turn Signal Repeater Lamp - Left:



Turn Signal Repeater Lamp - Right:
