Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Park/Turn Signal Lamp

Park/Turn Signal Lamp

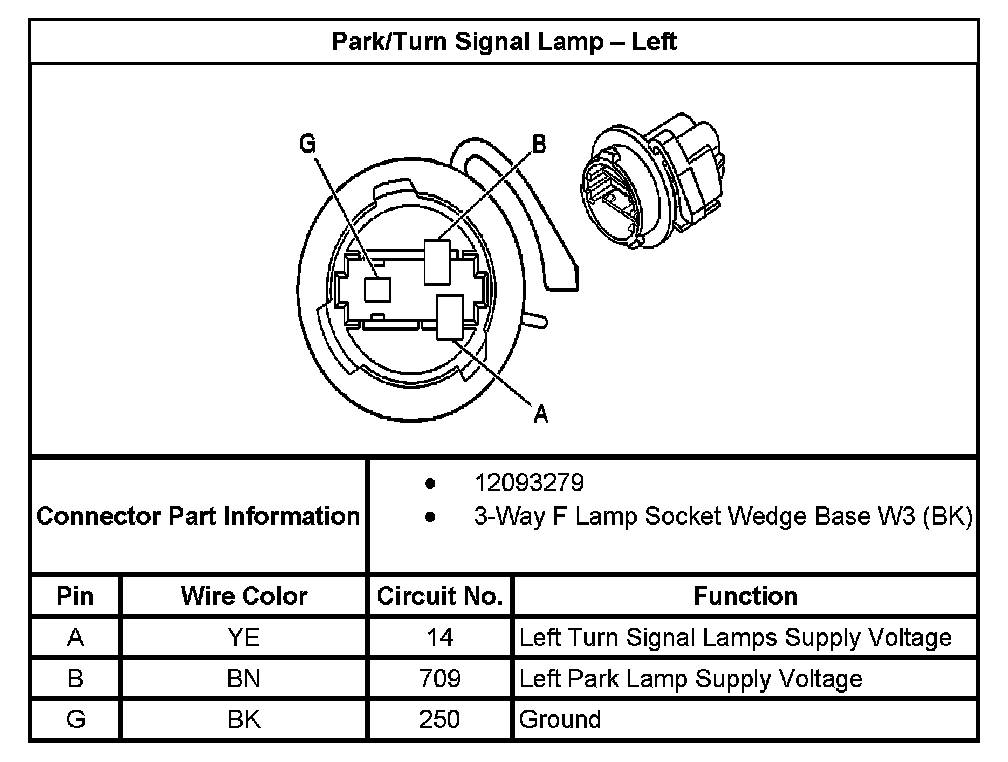

Park/Turn Signal Lamp - Left:

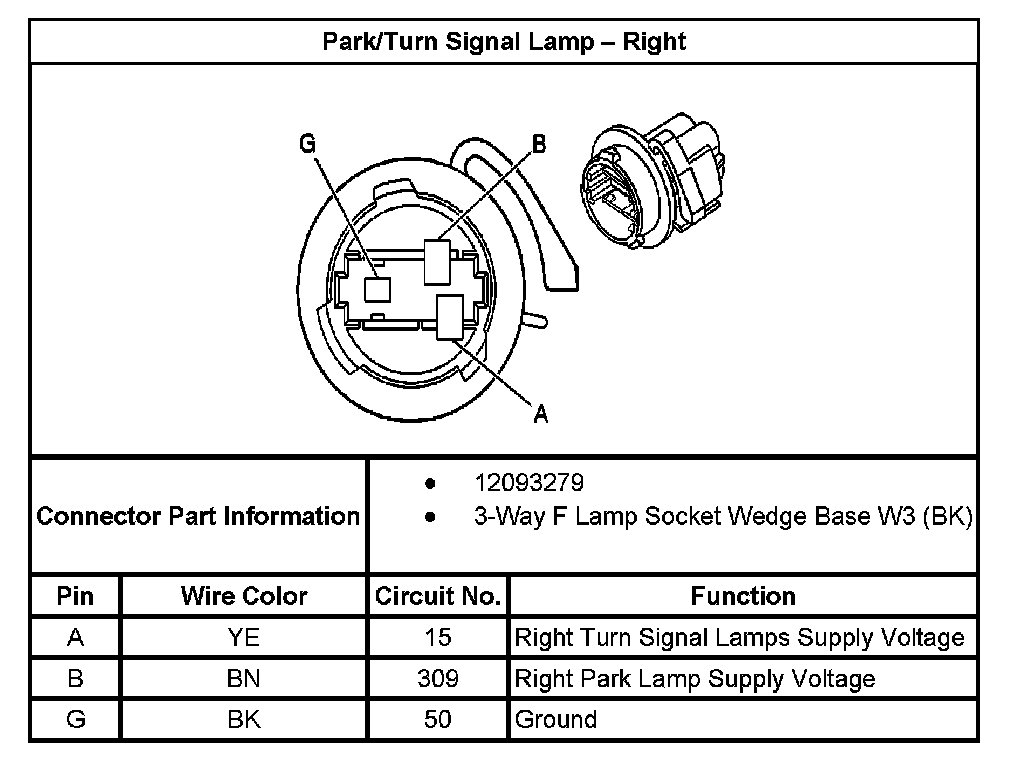

Park/Turn Signal Lamp - Right:
