Tail Lamp Replacement (Hatchback)

TAIL LAMP REPLACEMENT (HATCHBACK)

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution.

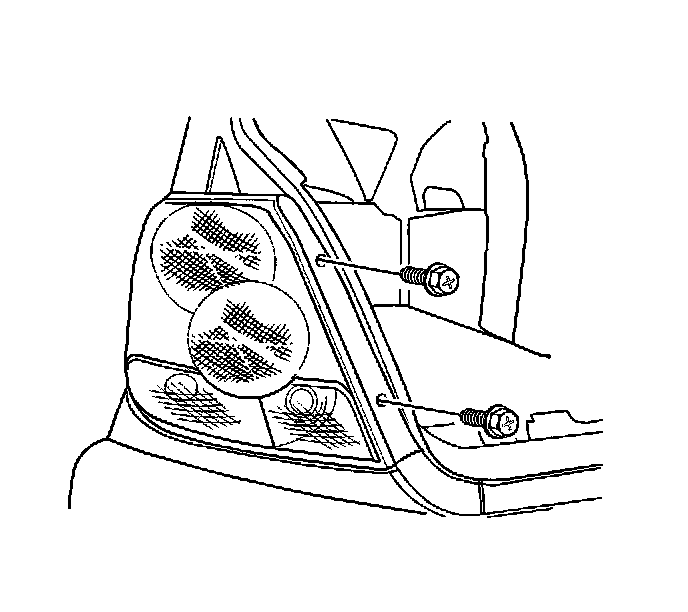

2. Remove the tail lamp assembly screws.
3. Slide the tail lamp assembly toward the hatch opening and remove it.
4. Remove the bulbs.

INSTALLATION PROCEDURE




1. Install the bulbs.
2. Install the tail lamp assembly with the screws.

NOTE: Refer to Fastener Notice.

Tighten the tail lamp assembly screws to 3 N.m (27 lb in).

3. Connect the negative battery cable.
