Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Connector Views

Connector Views

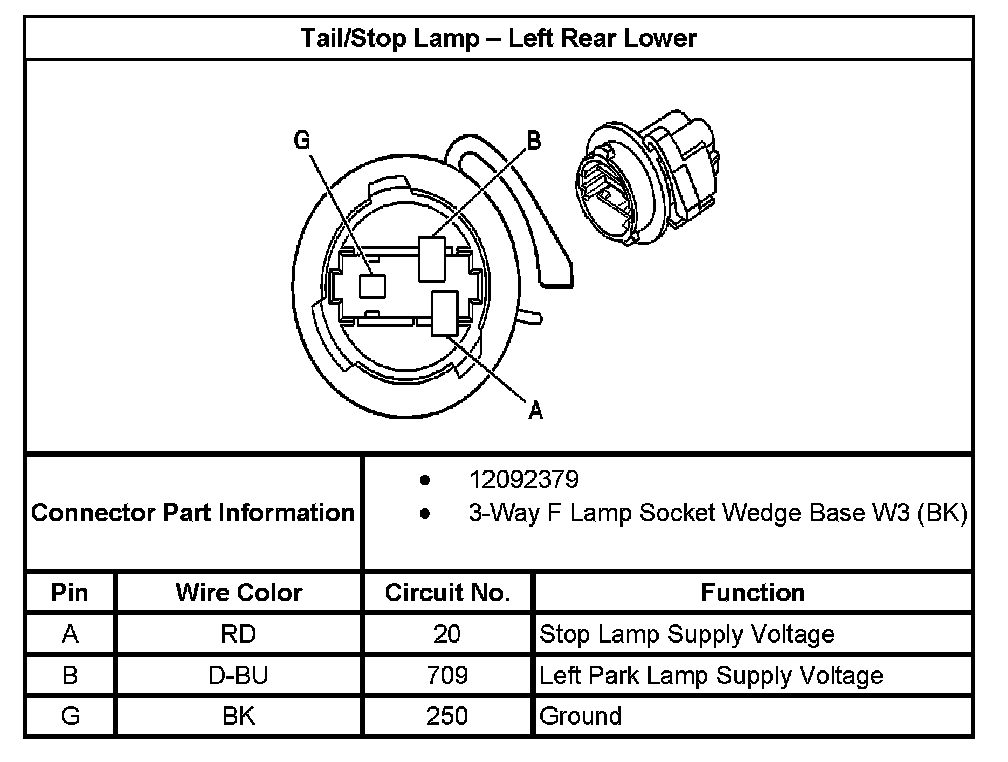

Tail/Stop Lamp - Left Rear Lower:

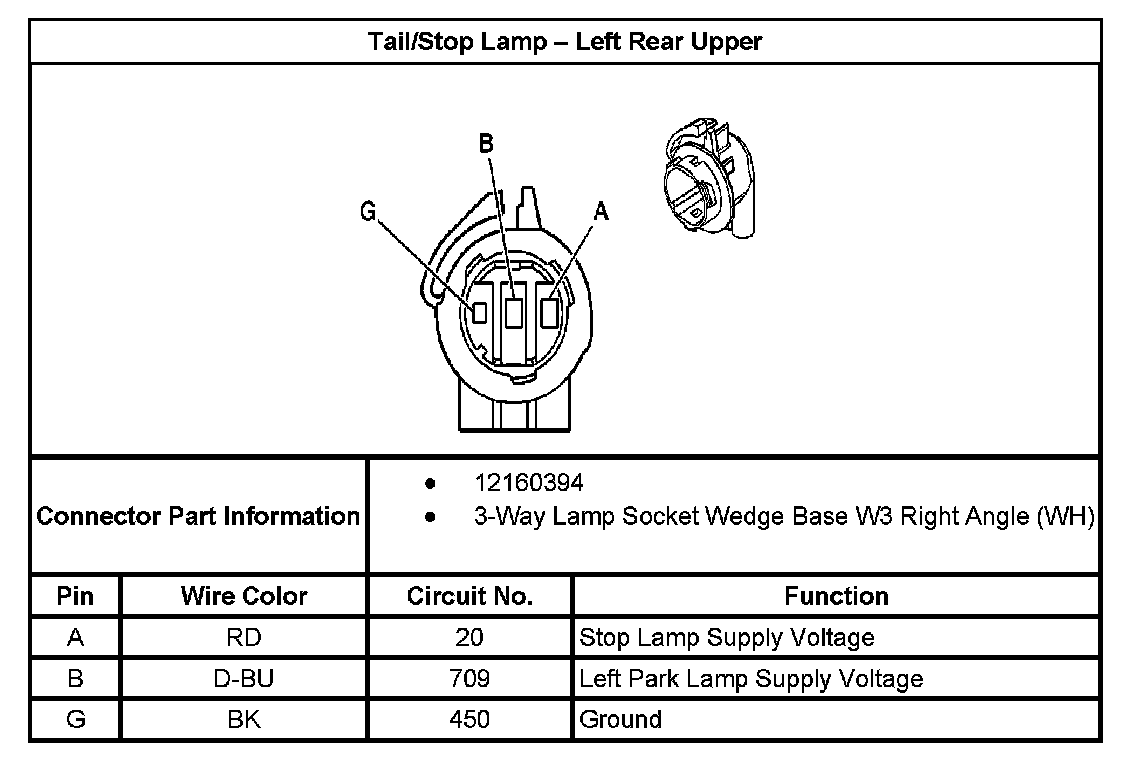

Tail/Stop Lamp - Left Rear Upper:

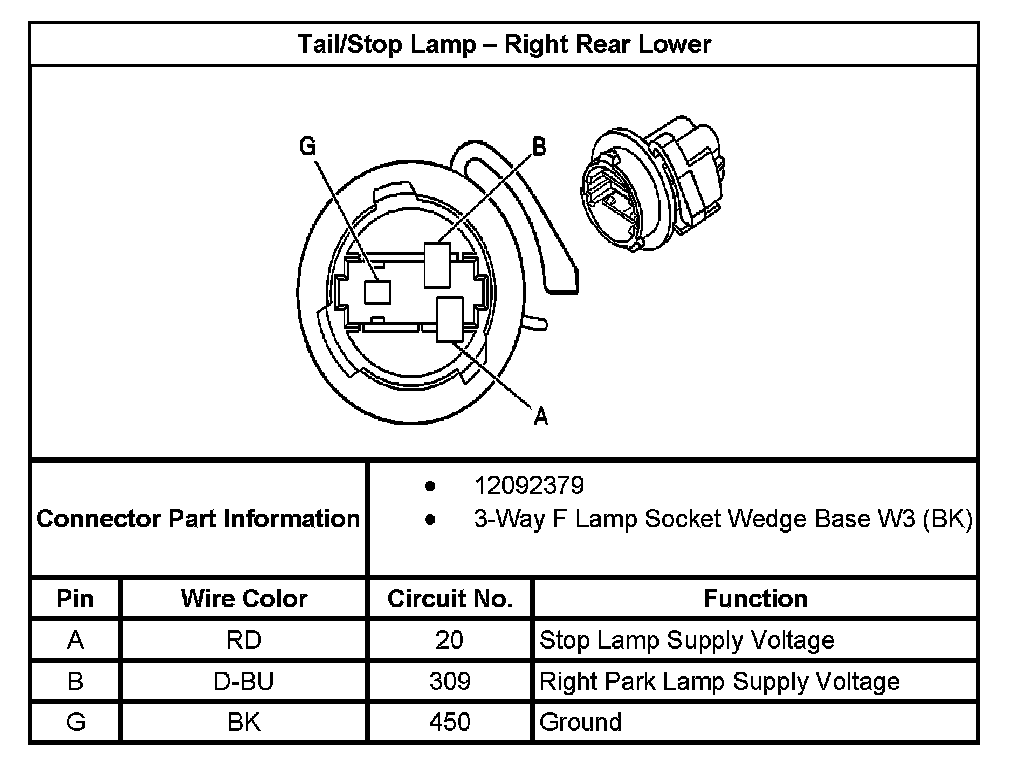

Tail/Stop Lamp - Right Rear Lower:



Tail/Stop Lamp - Right Rear Upper:
