Daytime Running Lamp Control Unit: Diagrams

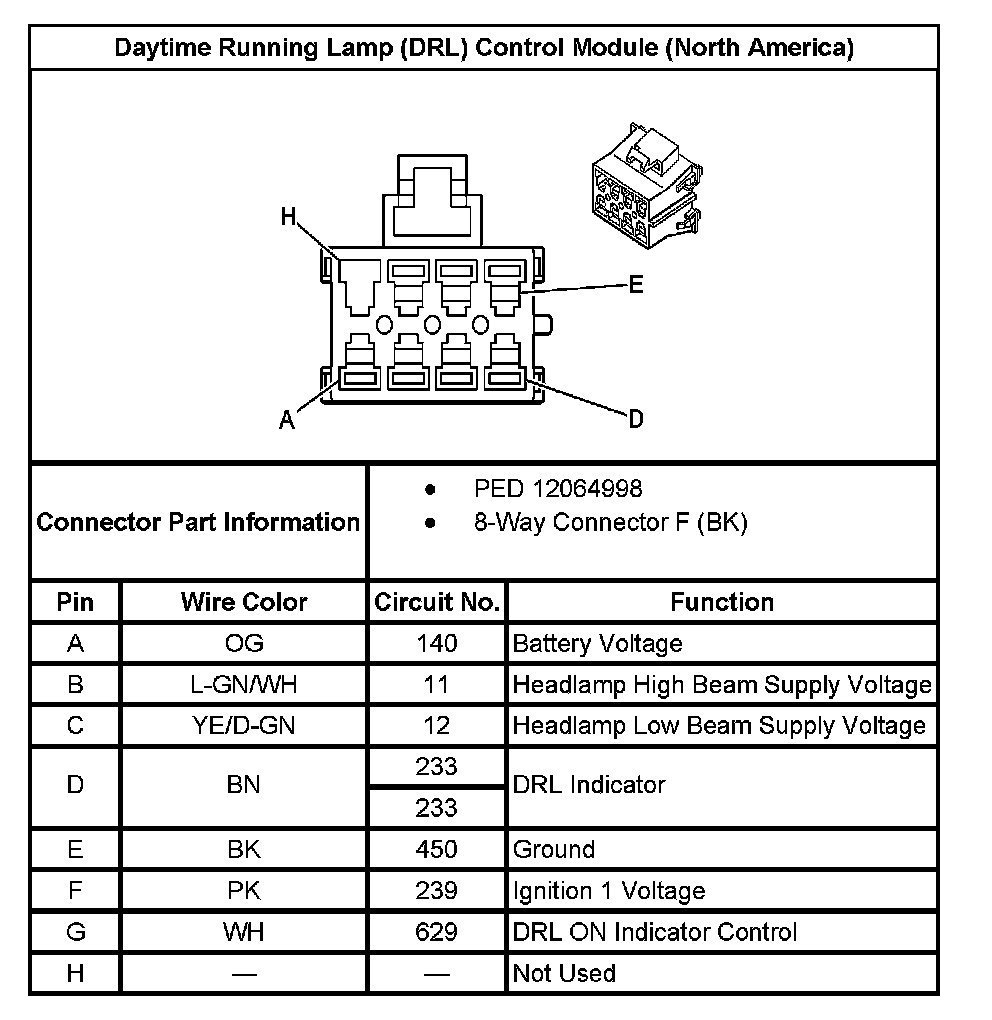

Daytime Running Lamp (DRL) Control Module (North America):

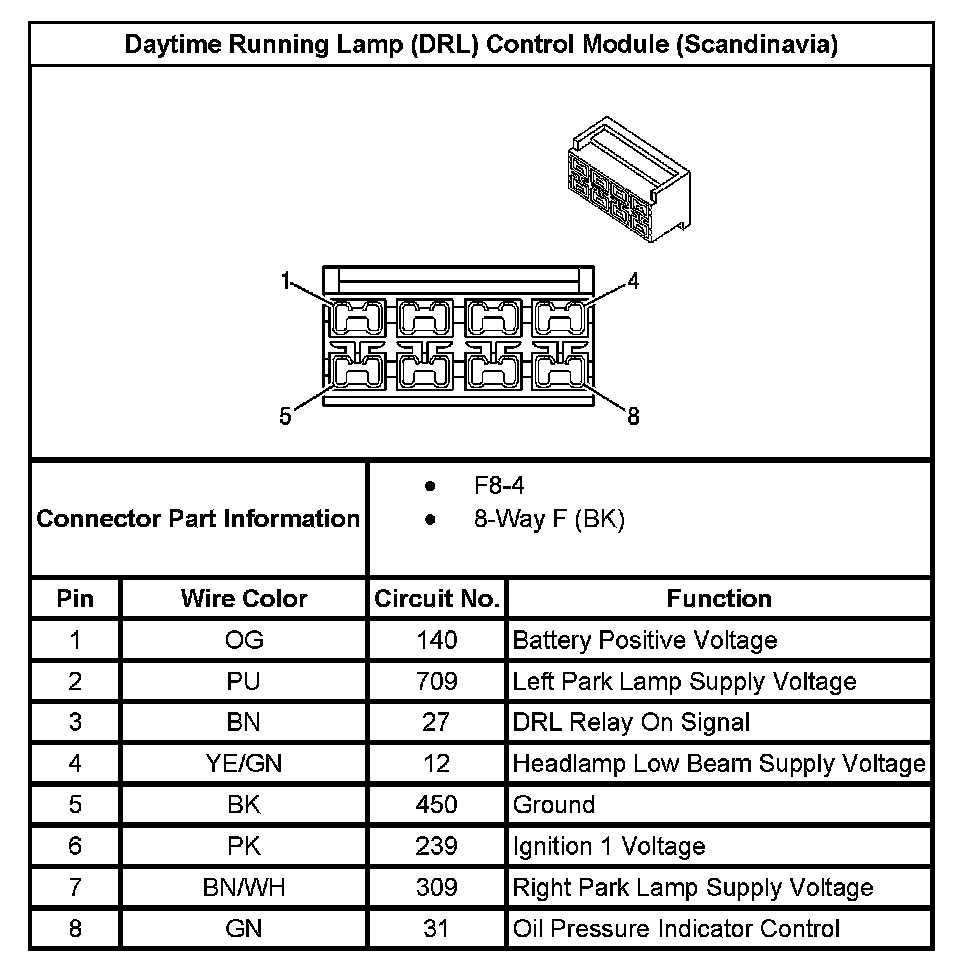

Daytime Running Lamp (DRL) Control Module (Scandinavia):
