Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - HVAC System - Manual >> Compressor Clutch Does Not Engage

Compressor Clutch Does Not Engage

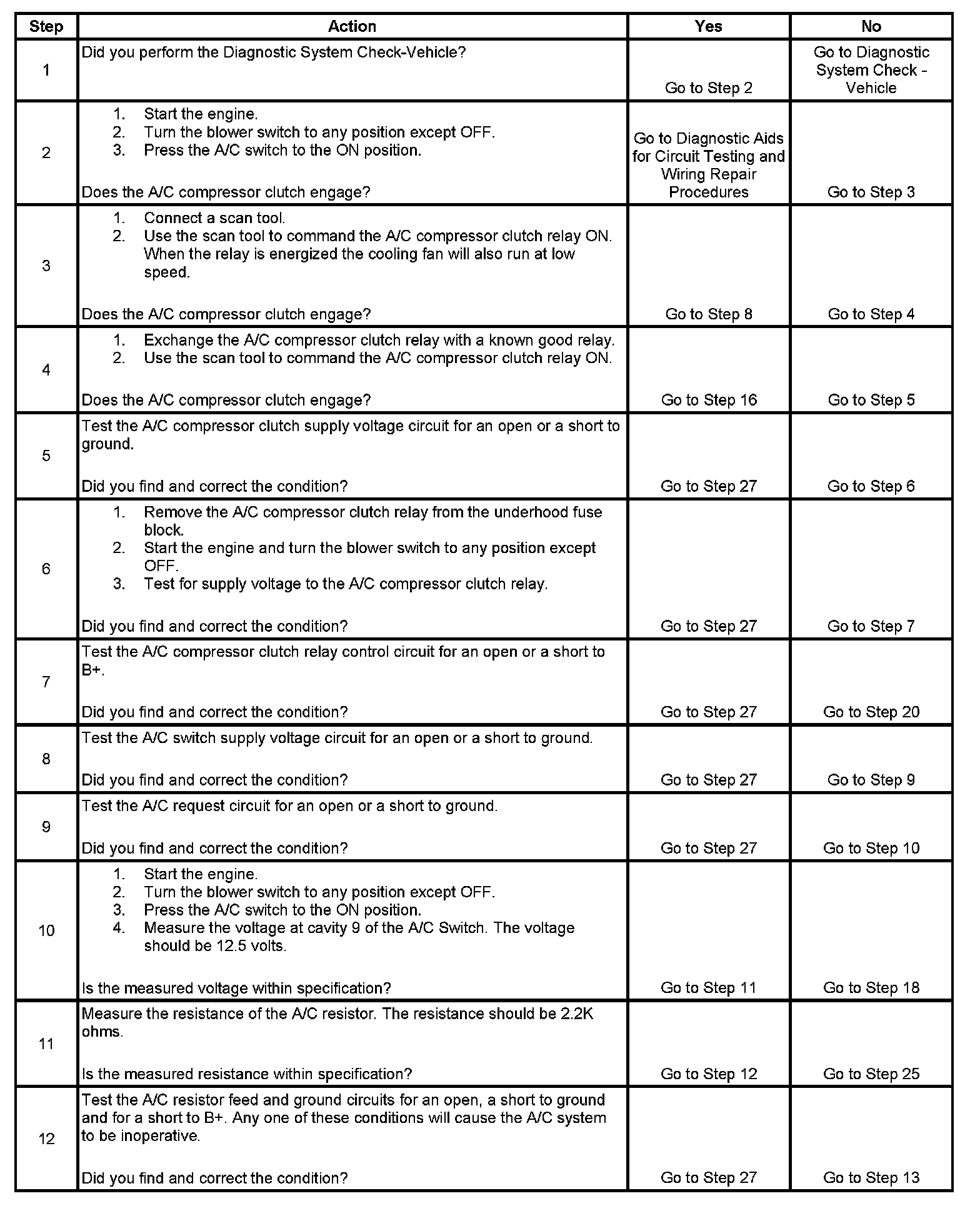

Step 1 - Step 12:

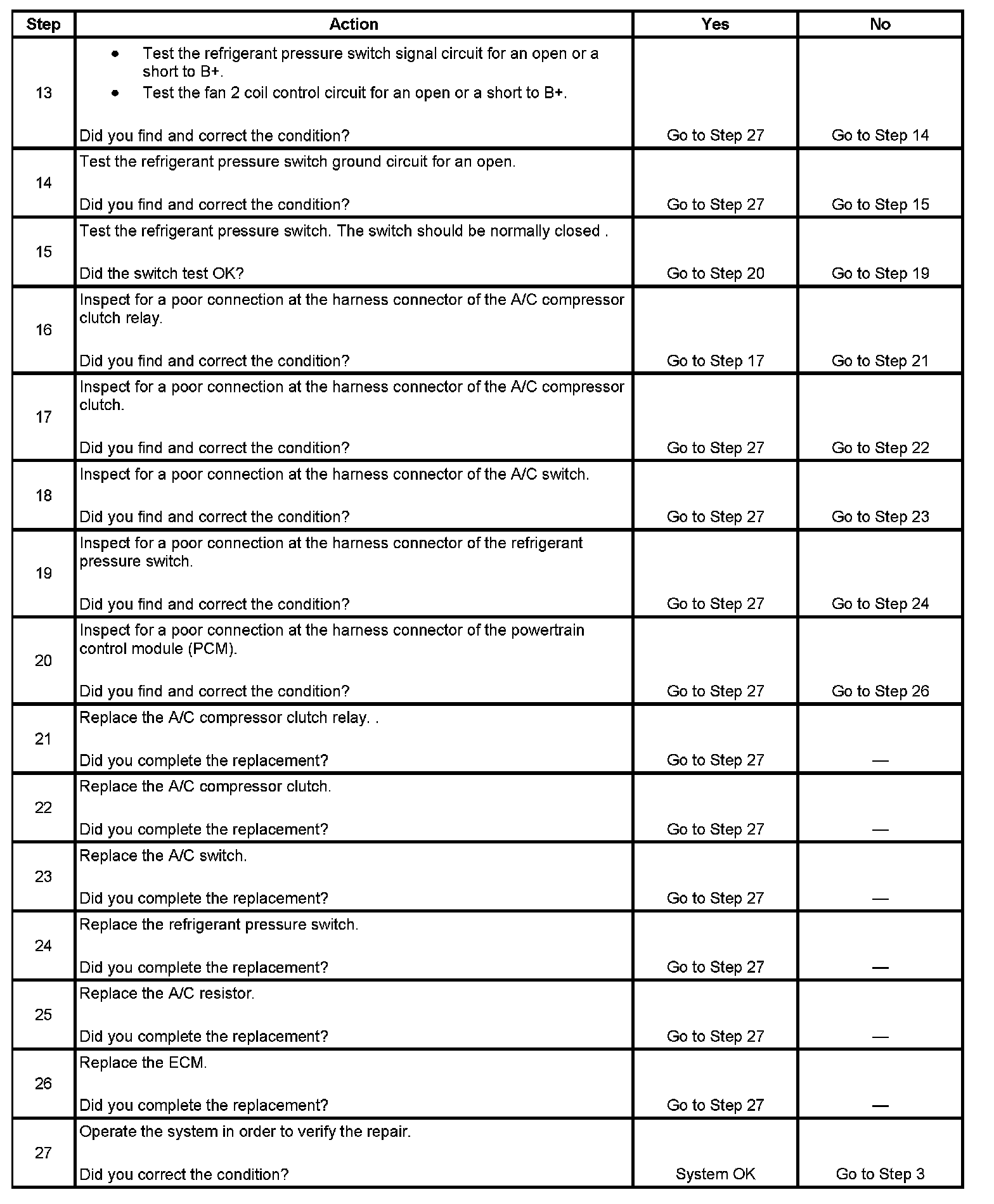

Step 13 - Step 27:
