Turn Signal Lamp

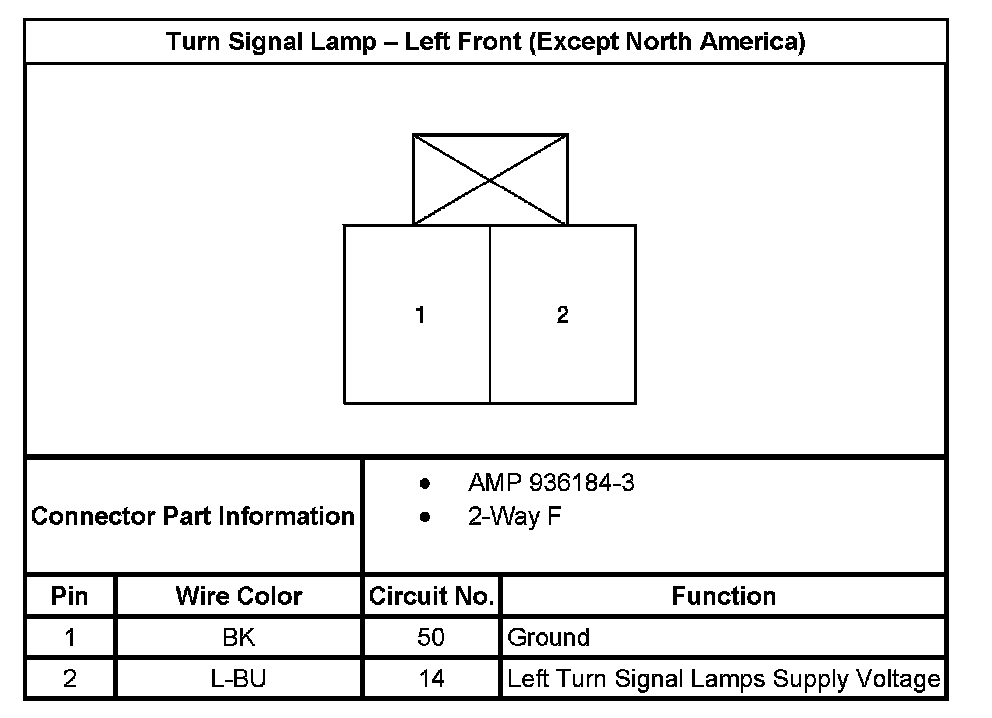

Turn Signal Lamp - Left Front (Except North America):

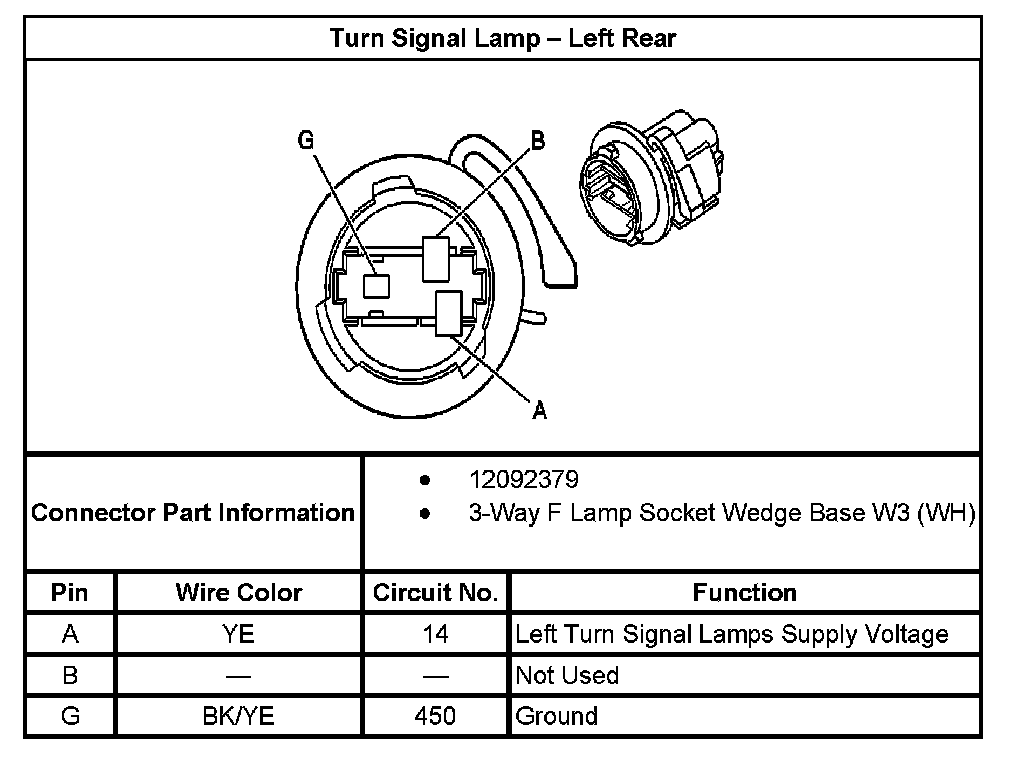

Turn Signal Lamp - Left Rear:



Turn Signal Lamp - Right Front (Except North America):



Turn Signal Lamp - Right Rear:
