Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Tweeter
Tweeter

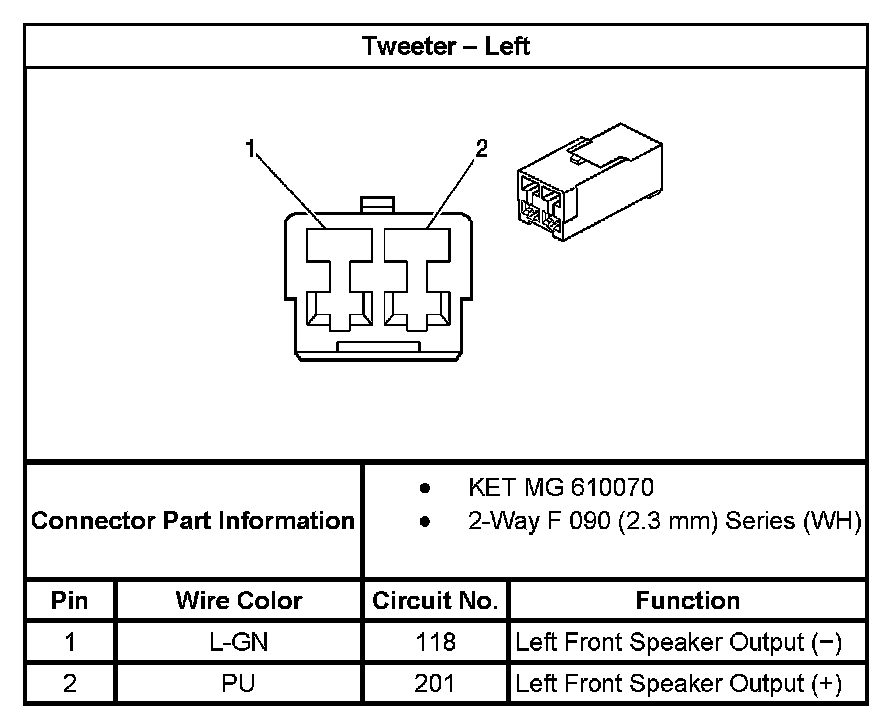

Tweeter - Left:

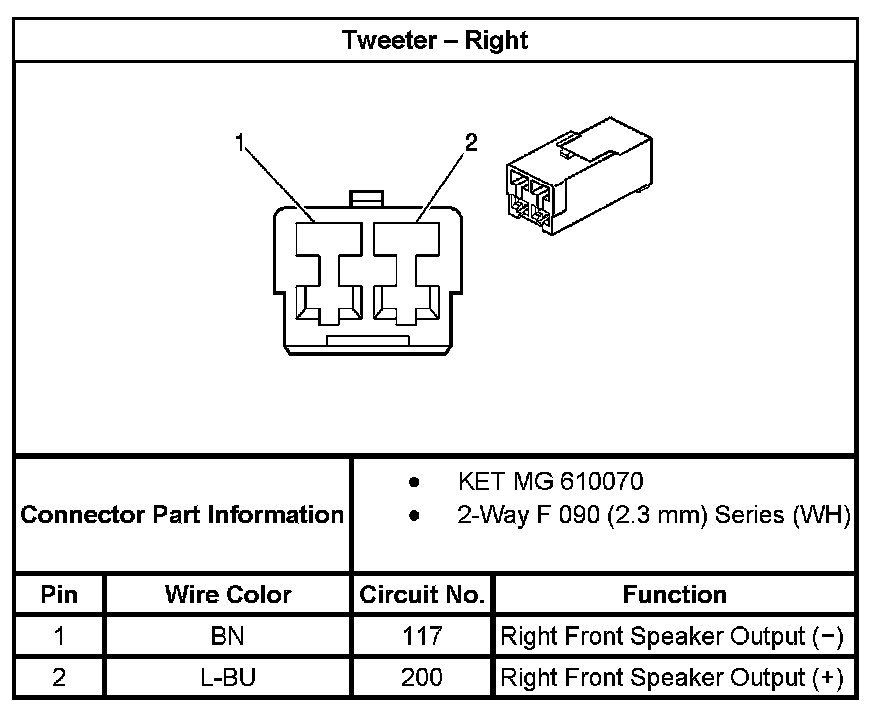

Tweeter - Right:
