Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram

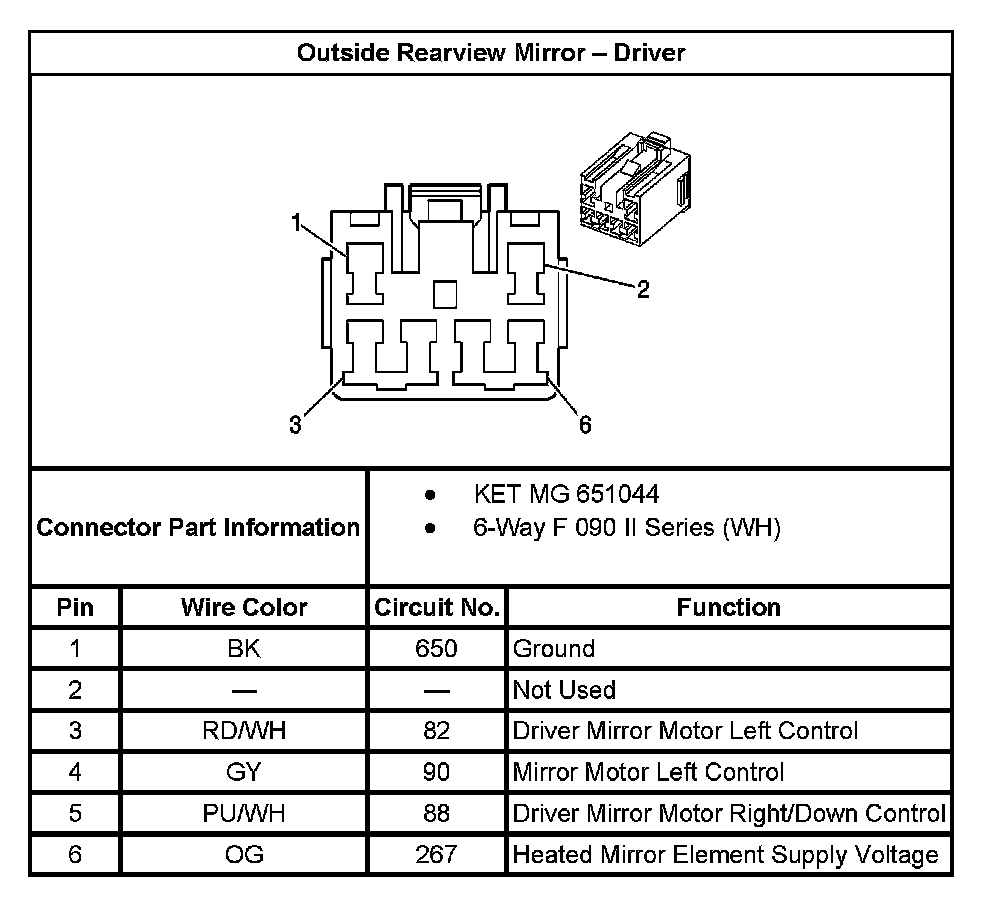

Outside Rearview Mirror - Driver:

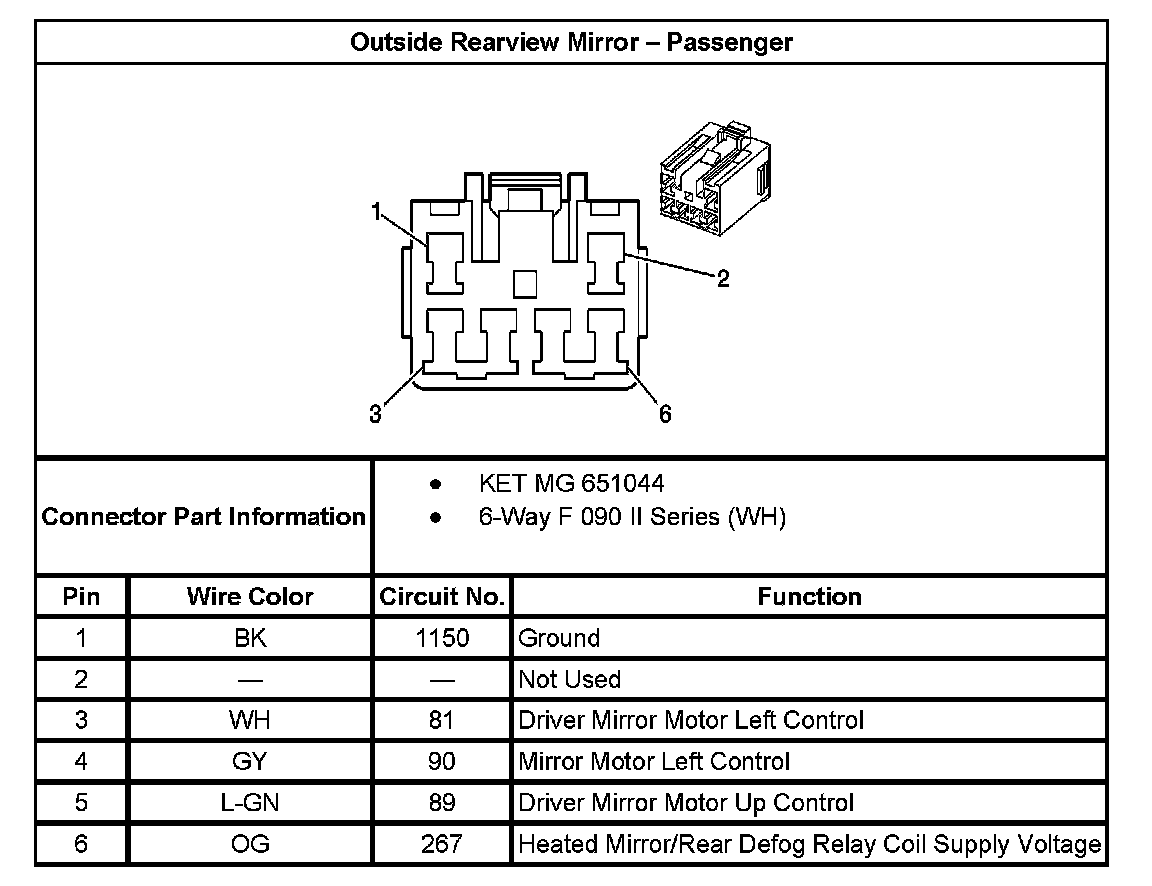

Outside Rearview Mirror - Passenger:
