Marker Lamp
Marker Lamp

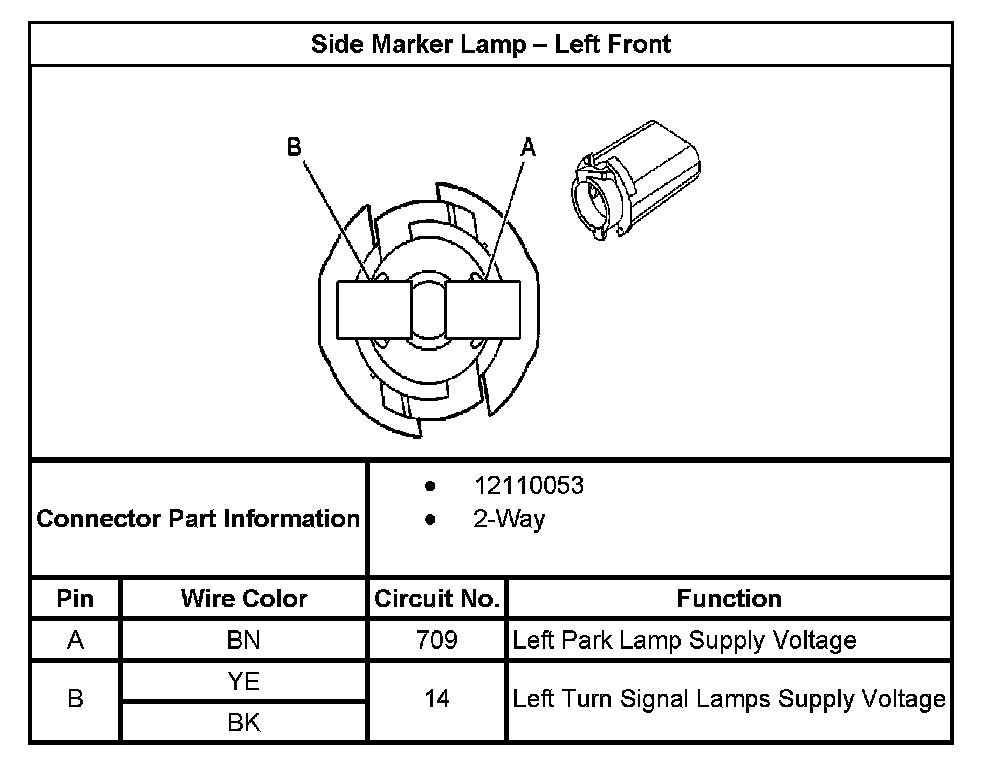

Side Marker Lamp - Left Front:

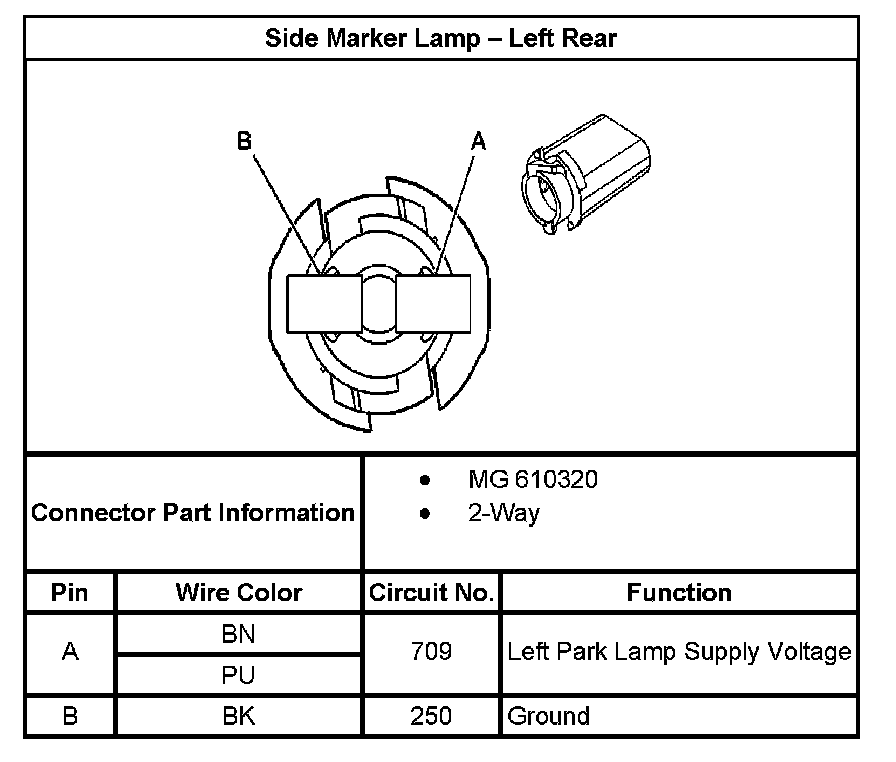

Side Marker Lamp - Left Rear:

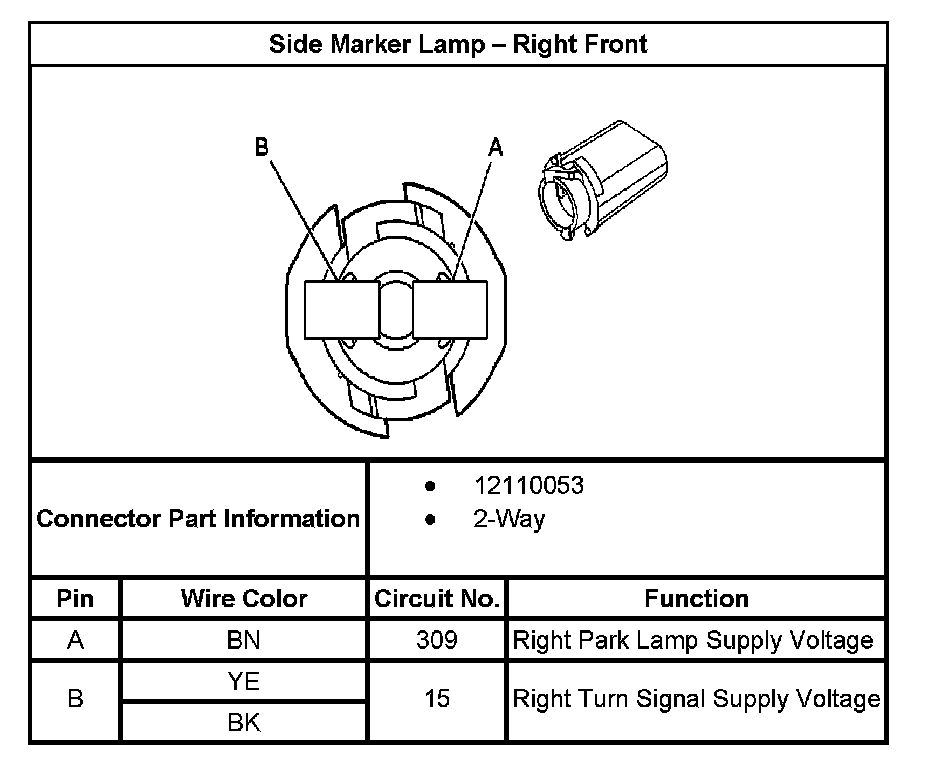

Side Marker Lamp - Right Front:

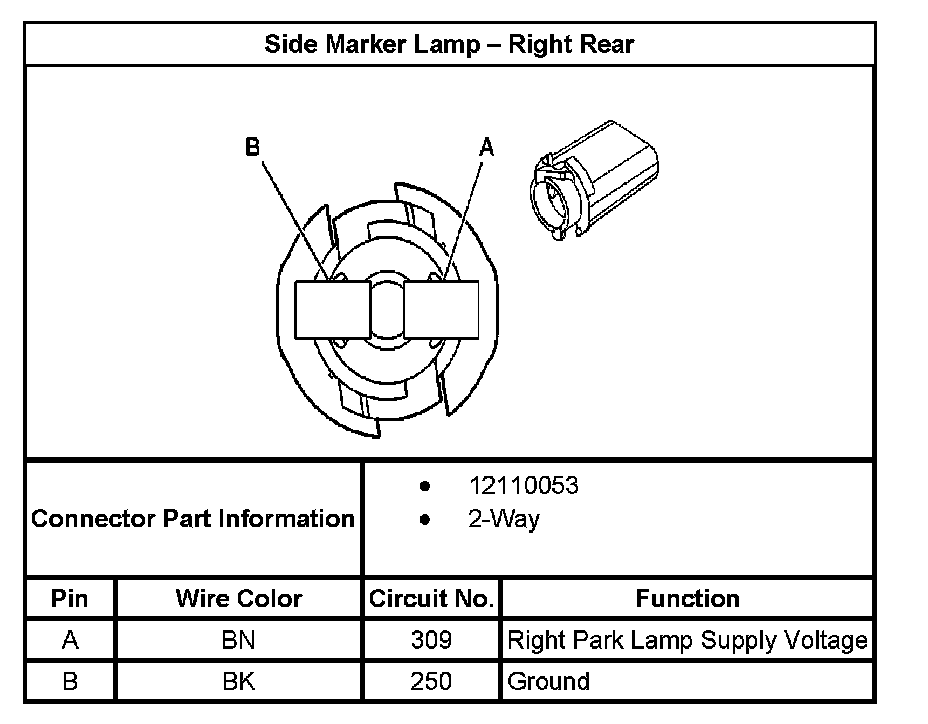

Side Marker Lamp - Right Rear:
