Door Latch - Passenger Front
Door Latch - Passenger Front

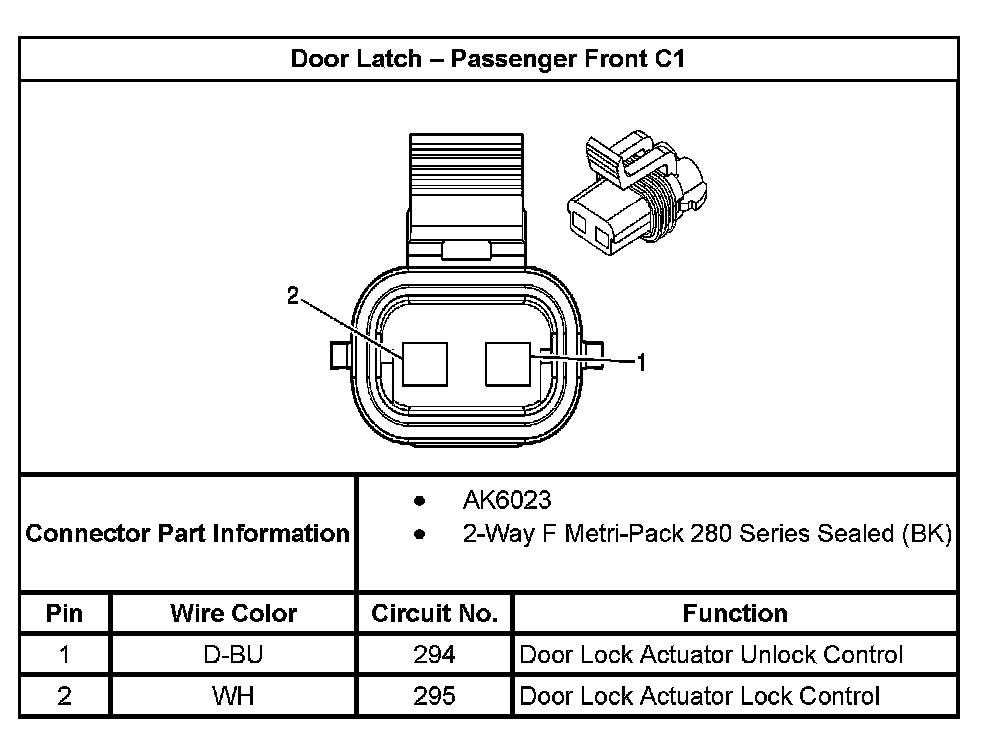

Door Latch - Passenger Front C1:

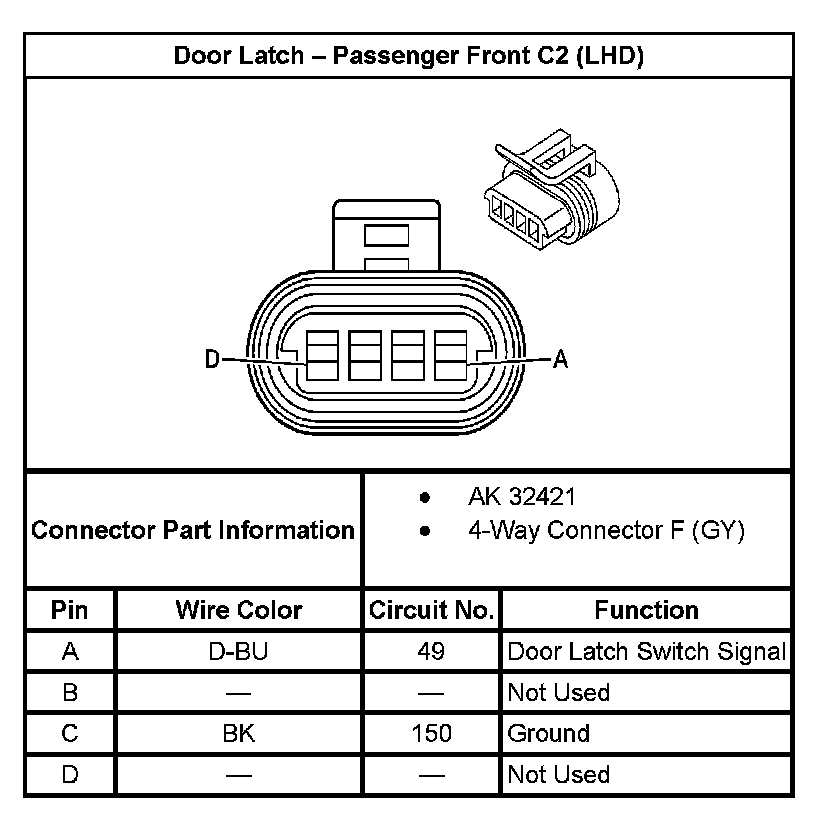

Door Latch - Passenger Front C2 (With RPO Code LHD):
Door Latch - Passenger Front C2 (With RPO Code RHD):
